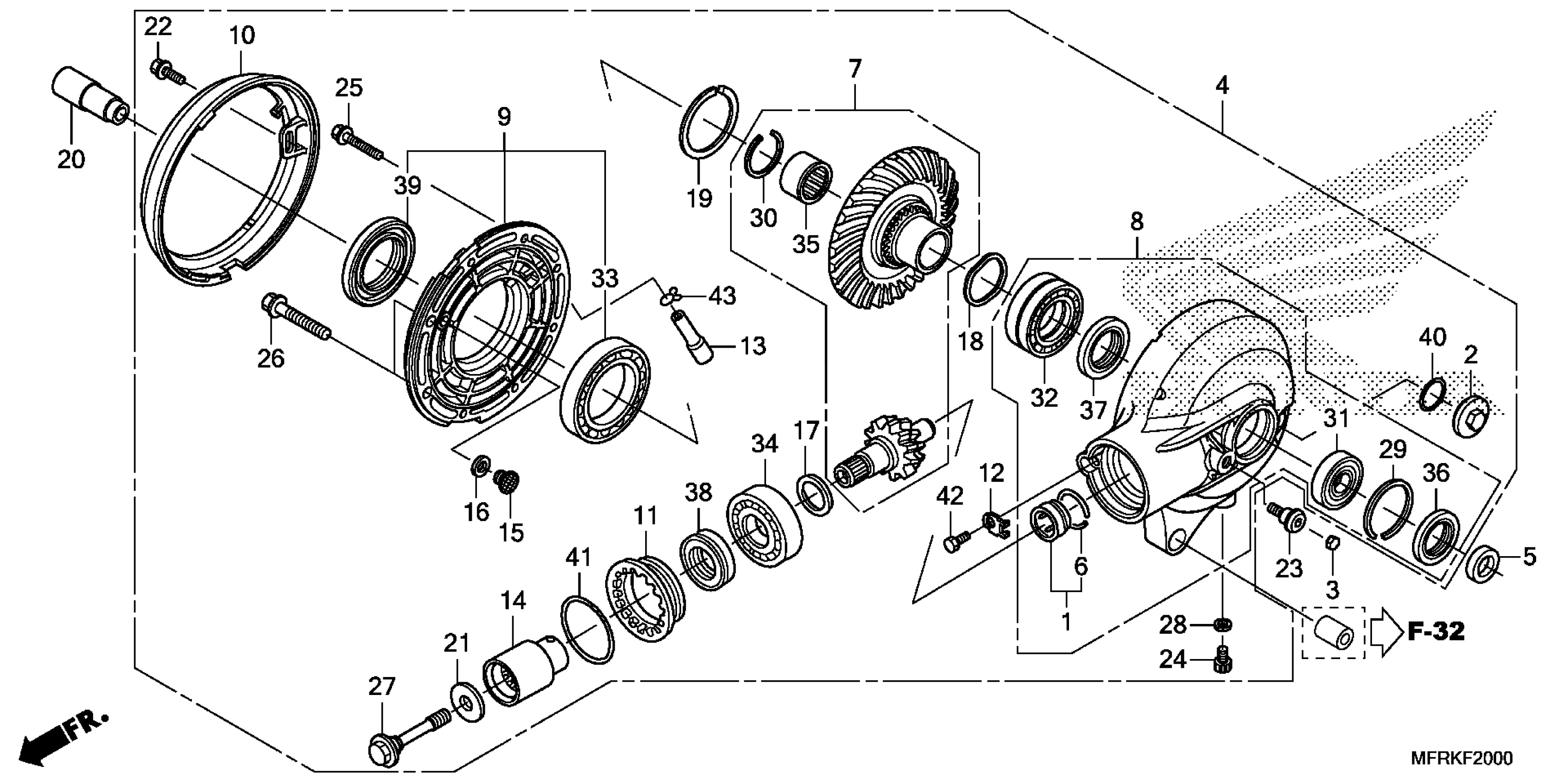

Honda VT1300CXA7AC (23) MOTORCYCLE, JPN, VIN# JH2SC616-PK700001 TO JH2SC616-PK799999 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MFR-670

$23.46

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

3

PLUG, HEX. (6MM)

12392-MJ0-000

$4.53

4

GEAR ASSY., FINAL

41300-MFR-680

$1,829.57

5

COLLAR, GEAR CASE SIDE

41302-MFR-670

$8.25

6

RING, STOPPER

41305-MB4-770

$5.62

7

GEAR SET, FINAL

41310-MFR-670

$400.10

8

CASE SUB-ASSY., FINAL GEAR

41311-MFR-680

$1,031.44

9

COVER SUB-ASSY., FINAL GEAR

41320-MFR-670

$211.16

10

PLATE, DUST GUARD

41324-MFR-680

$83.07

11

RETAINER, BEARING

41331-MN5-000

$115.31

12

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.51

12

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.51

13

TUBE, FINAL GEAR BREATHER

41391-MFR-670

$4.05

14

JOINT, PINION

41410-ME9-770

$146.31

15

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

16

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

16

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

17

SHIM A, PINION GEAR (1.32)

41450-MG9-000

$7.18

17

SHIM B, PINION GEAR (1.38)

41451-MG9-000

$7.18

17

SHIM C, PINION GEAR (1.44)

41452-MG9-000

$7.18

17

SHIM D, PINION GEAR (1.50)

41453-MG9-000

$7.18

17

SHIM E, PINION GEAR (1.56)

41454-MG9-000

$7.18

17

SHIM F, PINION GEAR (1.62)

41455-MG9-000

$7.18

17

SHIM G, PINION GEAR (1.68)

41456-MG9-000

$7.18

18

WASHER, SPECIAL (46X54)

41510-MFR-670

$10.11

19

SPACER A, RING GEAR (1.82)

41530-MG9-000

$12.72

19

SPACER B, RING GEAR (1.88)

41531-MG9-000

$12.72

19

SPACER C, RING GEAR (1.94)

41532-MG9-000

$12.72

19

SPACER D, RING GEAR (2.00)

41533-MG9-000

$12.72

19

SPACER E, RING GEAR (2.06)

41534-MG9-000

$12.54

19

SPACER F, RING GEAR (2.12)

41535-MG9-000

$12.11

19

SPACER G, RING GEAR (2.18)

41536-MG9-000

$12.11

19

SPACER H, RING GEAR (2.24)

41537-MG9-000

$12.72

19

SPACER I, RING GEAR (2.30)

41538-MG9-000

$12.72

20

COLLAR B, RR. AXLE DISTANCE

42625-MFR-670

$76.70

21

WASHER, FR. HUB

44313-HP2-670

$1.49

22

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

23

BOLT, SOCKET (8X16)

90107-MFR-670

$8.72

24

BOLT, SOCKET (8X11)

90109-ME5-770

$5.73

25

BOLT, FLANGE (8X30)

90133-MCA-000

$1.49

26

BOLT, FLANGE (10X38)

90134-MCA-000

$2.48

27

BOLT, PINION JOINT

90138-MFR-670

$18.67

28

WASHER (8MM)

90471-580-000

$2.92

29

CIRCLIP (INNER) (52MM)

90651-MFR-670

$3.25

30

CIRCLIP (INNER) (45MM)

90652-MFR-670

$3.28

31

BEARING, RADIAL BALL (30X52X9)

91051-MFR-671

$21.70

32

BEARING, RADIAL BALL (45X68X19)

91052-MFR-671

$58.70

33

BEARING, RADIAL BALL (65X100X14)

91053-MCH-003

$50.15

34

BEARING, RADIAL BALL (QJ3/28V1)

91061-MT3-003

$67.87

35

BEARING, NEEDLE (35X45X24)

91071-MFR-671

$25.39

36

DUST SEAL (38X52X5)

91251-MFR-671

$9.62

37

OIL SEAL (45X55X6)

91252-MFR-671

$11.26

38

OIL SEAL (39X56X7)

91262-MCH-003

$8.89

39

OIL SEAL (65X85X7)

91265-MCH-003

$9.59

40

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

41

O-RING (64.5X3.5) (ARAI)

91359-MG9-003

$4.53

42

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.49

43

CLIP, TUBE (B17)

95002-02079

$1.49
