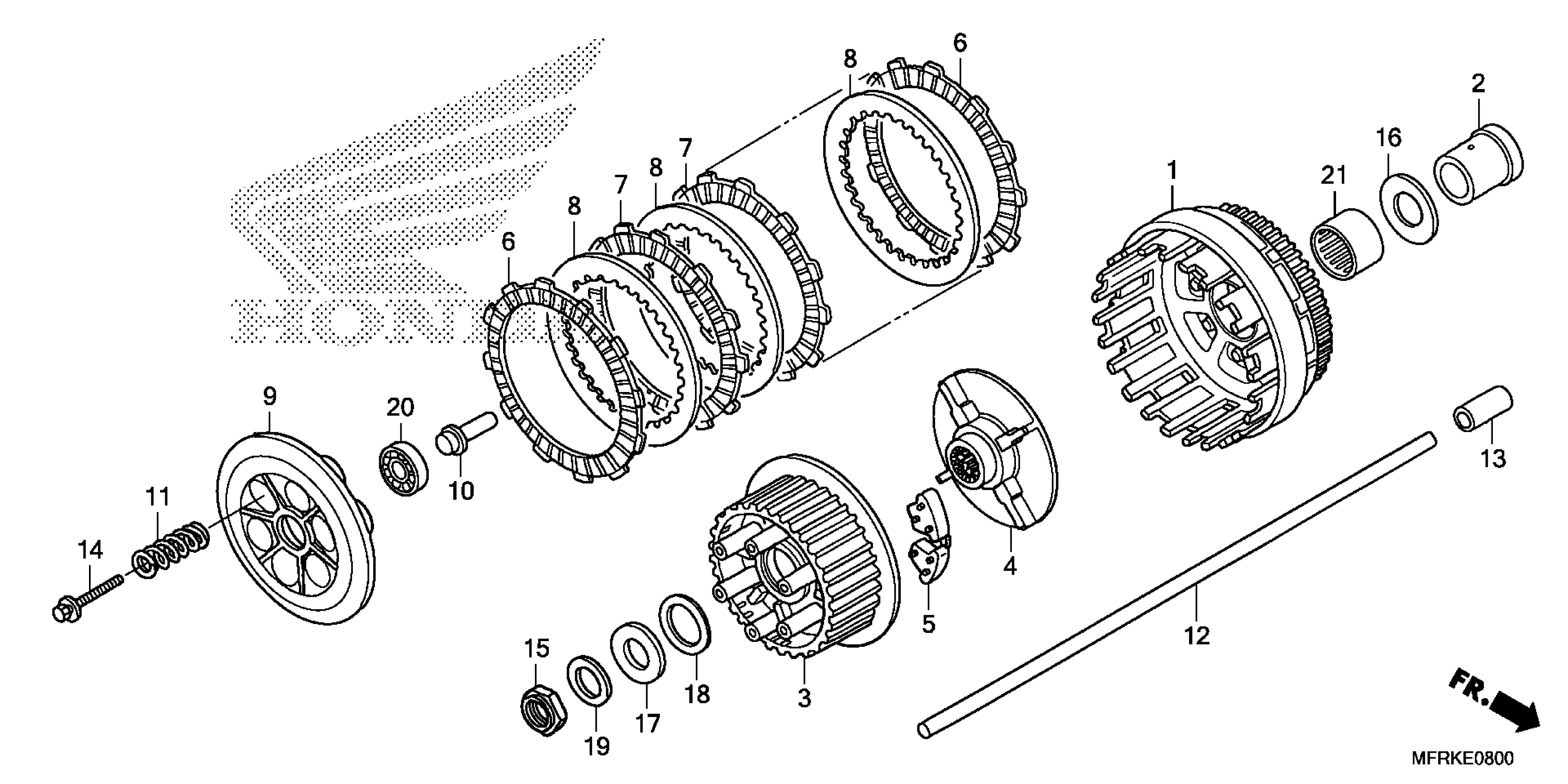

Honda VT1300CXA7AC (20) MOTORCYCLE, JPN, VIN# JH2SC616-LK500001 TO JH2SC616-LK599999 CLUTCH Diagram

CLUTCH OUTER ASSY.

22100-MEA-670

$337.64

GUIDE, CLUTCH (OUTER)

22116-MEA-670

$21.08

CENTER, CLUTCH

22121-MEA-670

$112.44

BOSS, CLUTCH CENTER

22122-MEA-670

$158.74

RUBBER, CLUTCH DAMPER

22125-MEA-670

$14.59

DISK, CLUTCH FRICTION

22201-MCA-000

$18.04

DISK A, CLUTCH FRICTION

22203-MCA-000

$18.93

PLATE A, CLUTCH

22321-MN5-000

$13.97

PLATE, CLUTCH PRESSURE

22350-MCH-000

$76.67

PIECE, CLUTCH JOINT

22366-MAZ-000

$12.30

SPRING, CLUTCH

22401-MCH-000

$4.62

ROD, CLUTCH LIFTER

22851-MEA-670

$23.12

PIECE, CLUTCH LIFTER ROD

22852-MK5-000

$7.41

BOLT-WASHER (6X35)

90022-MAT-E00

$4.87

NUT, LOCK (25MM)

90231-MCH-000

$6.78

WASHER (35X50X3.2)

90401-MEA-670

$5.38

WASHER (25.2X51X2.5)

90402-MEA-670

$4.89

WASHER

90403-MK2-300

$5.31

WASHER, SPRING (25MM)

90432-MEA-670

$4.16

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11
