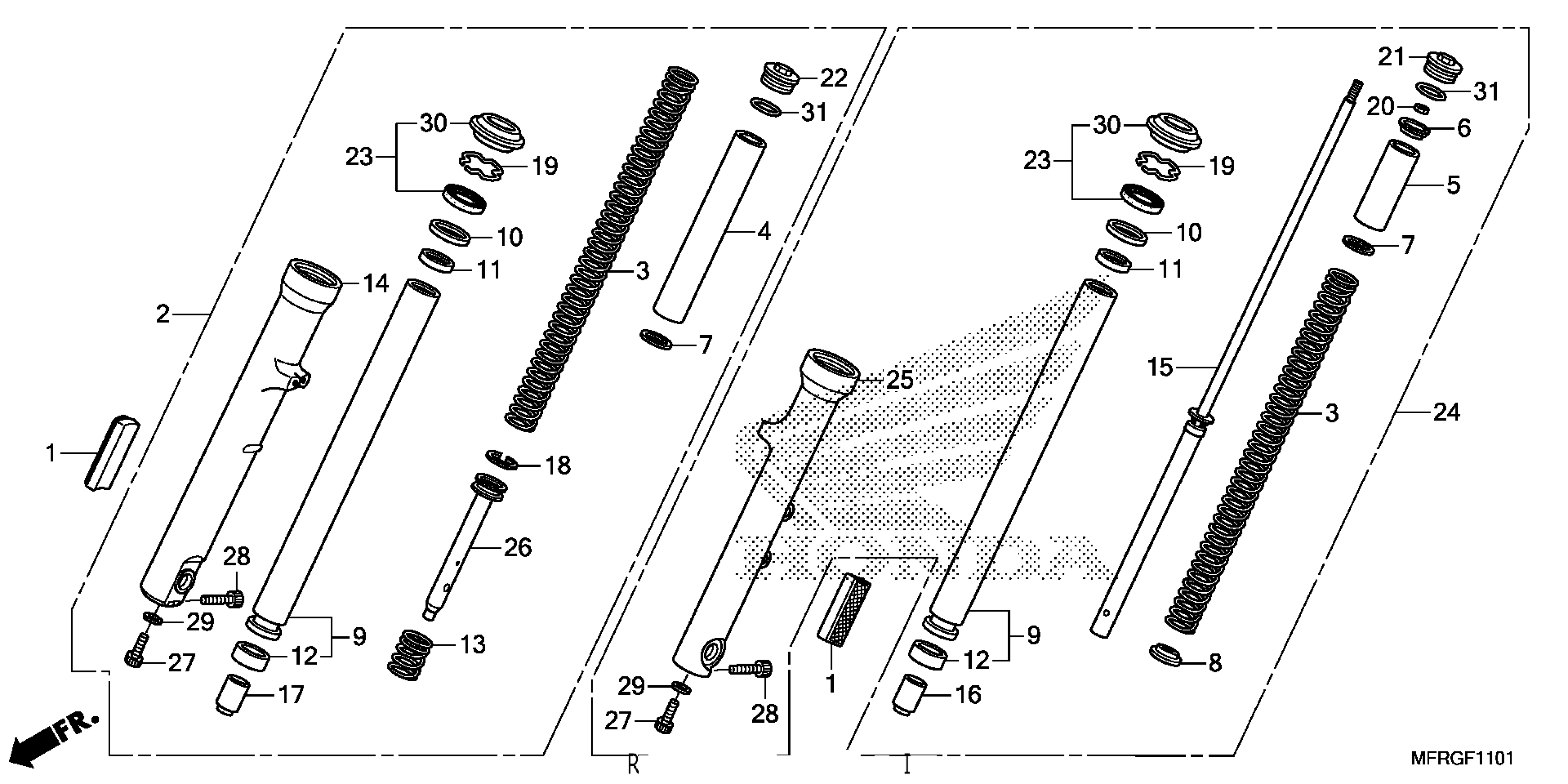

Honda VT1300CXA7AC (17) MOTORCYCLE, JPN, VIN# JH2SC616-HK200001 TO JH2SC616-HK299999 FRONT FORK (2) Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-MFR-B11

$32.22

2

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MFR-306

$848.06

2

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-MFR-681.

51400-MFR-306

$848.06

3

SPRING, FR. FORK

51401-MFR-671

$76.04

4

COLLAR, SPRING

51402-MFR-671

$18.15

5

COLLAR, SPRING (R. SIDE)

51402-ML7-921

$24.38

6

SEAT, SPRING

51404-MR7-003

$10.43

7

SEAT, SPRING

51405-KA4-711

$5.95

8

COLLAR, SPRING

51405-MCZ-D11

$6.46

9

PIPE, FR. FORK

51410-MFR-671

$420.24

10

RING, BACK-UP

51412-KZ3-003

$8.68

11

BUSH, GUIDE

51414-MFR-671

$19.90

12

BUSH, SLIDER

51415-MFR-671

$10.58

13

SPRING, FR. REBOUND

51416-MFR-671

$7.66

14

CASE, R. (LOWER)

51420-MFR-681

$384.25

15

DAMPER, FR.

51430-MFR-671

$247.06

16

PIECE, OIL LOCK (SHOWA)

51432-MS2-003

$29.47

17

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.78

18

RING, PISTON

51437-MCA-003

$7.26

19

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.88

20

NUT, HEX. (10MM)

51451-MAJ-G41

$2.68

21

BOLT, FR. FORK

51454-MBR-003

$29.70

22

BOLT, FR. FORK

51454-MCA-003

$16.29

23

SEAL SET, FR. FORK

51490-MFR-671

$27.55

24

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MFR-306

$848.06

24

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-MFR-681.

51500-MFR-306

$848.06

25

CASE, L. (LOWER)

51520-MFR-681

$384.25

26

PIPE, SEAT

51540-MFR-671

$33.47

27

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.89

28

BOLT, SOCKET (8X32)

90122-MCH-A00

$2.01

29

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

30

DUST SEAL

91254-MCH-C11

$11.73

31

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.71
