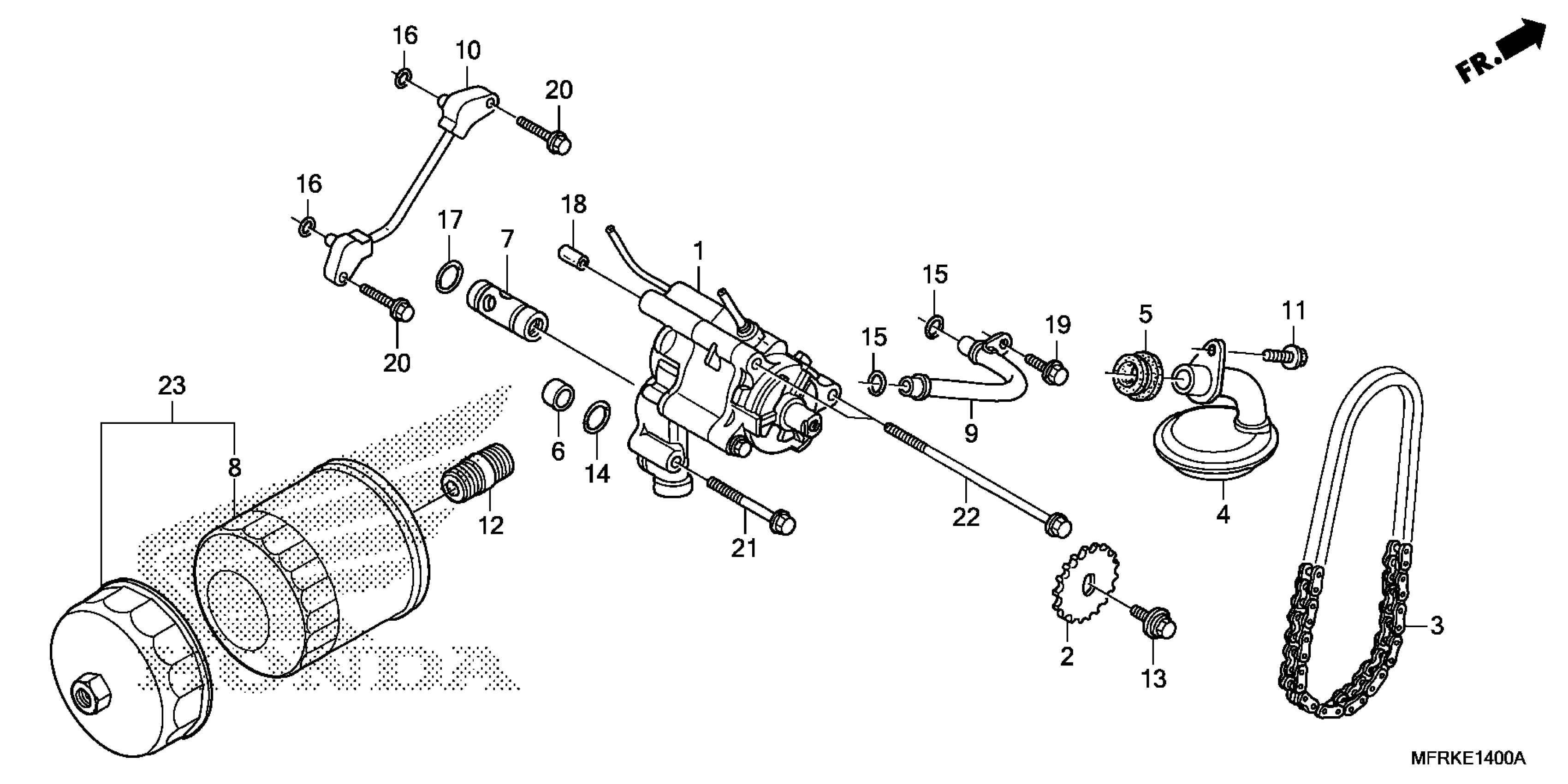

Honda VT1300CXA6A (19) MOTORCYCLE, JPN, VIN# JH2SC615-KK400001 TO JH2SC615-KK499999 OIL FILTER@OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-MEA-670

$215.21

2

SPROCKET, OIL PUMP DRIVEN (22T)

15134-MEA-670

$41.72

3

CHAIN, OIL PUMP DRIVE (52L) (BORG WARNER)

15136-MEA-671

$17.44

4

STRAINER, OIL

15150-MEA-670

$39.23

5

GASKET, OIL STRAINER

15154-MM5-000

$6.60

6

COLLAR, O-RING

15155-300-000

$3.47

7

VALVE ASSY., RELIEF

15220-ME9-770

$43.41

8

FILTER, OIL (WAKO FILTER) | Use up to Engine SN 5022189. This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

8

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

9

PIPE, SCAVENGE OIL

15520-MEA-670

$19.16

10

PIPE, OIL PASSAGE

15530-MEA-670

$86.84

11

BOLT, FLANGE (6X14) (CT200)

90014-952-000

$2.35

12

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

13

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

14

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

15

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

16

SEAL, PLUG (11.5X7) O-RING (4.9X1.9) O-RING (7.8X2.2)

91301-PC9-003

$2.92

16

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

16

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

17

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

17

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

18

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

19

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

20

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

21

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

22

BOLT, FLANGE (6X90) (Honda Code 2533842)

95701-06090-00

$1.92

23

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30
