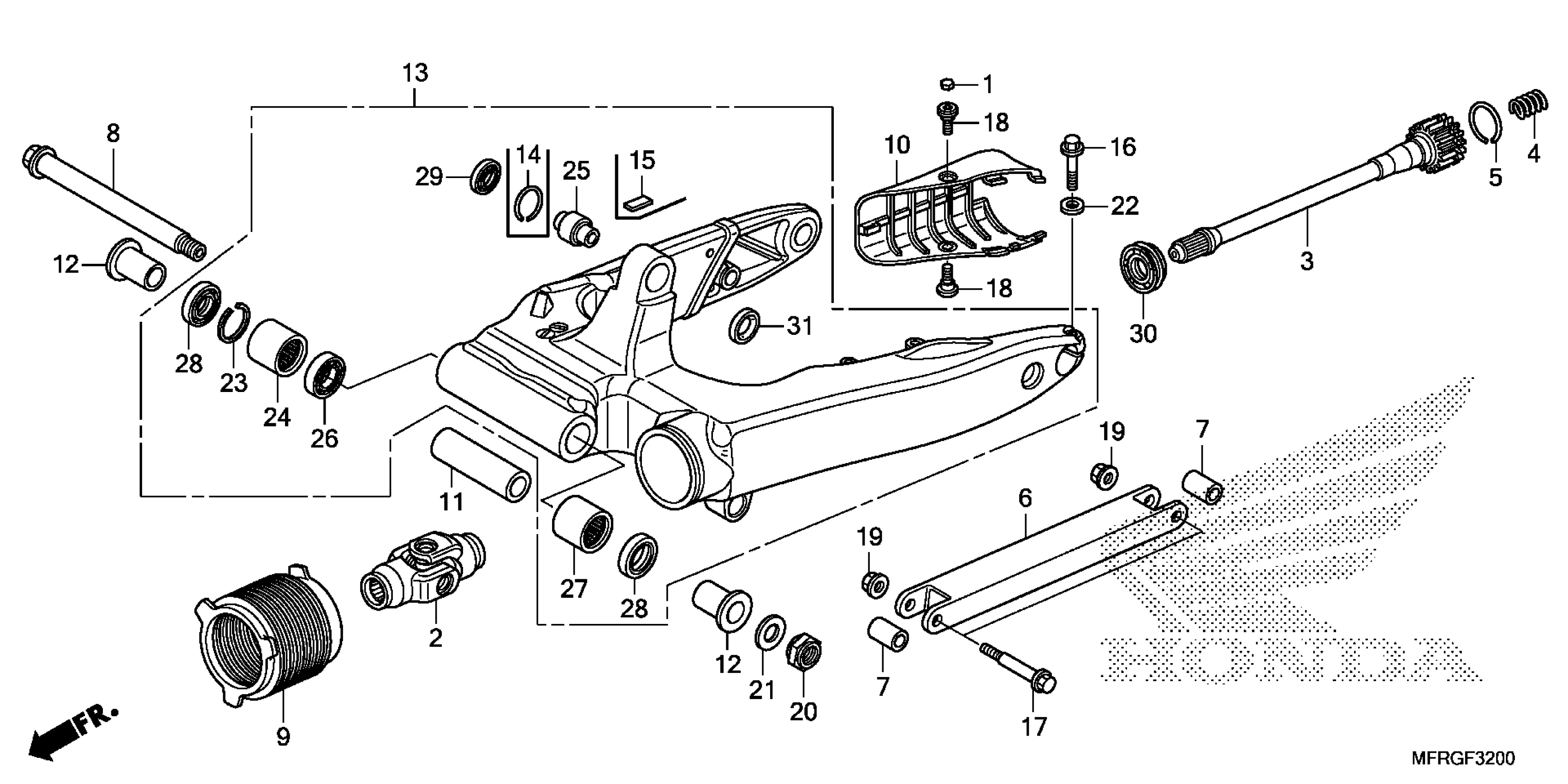

Honda VT1300CXA6A (17) MOTORCYCLE, JPN, VIN# JH2SC615-HK200001 TO JH2SC615-HK299999 SWINGARM Diagram

#

Description
Price

1

PLUG, HEX. (6MM)

12392-MJ0-000

$4.53

2

JOINT, YOKE

40200-MFR-670

$194.51

3

SHAFT, PROPELLER

40201-MFR-670

$161.56

4

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

5

RING, STOPPER

40221-MB0-000

$4.53

6

LINK, TORQUE

41610-MFR-670

$148.18

7

BUSH, TORQUE LINK

41615-MFR-670

$11.74

8

BOLT, SWINGARM PIVOT

52101-MFR-670

$59.85

9

BOOT, JOINT

52104-MFR-670

$25.28

10

COVER, PROPELLER SHAFT

52105-MFR-670

$24.39

11

COLLAR, CENTER PIVOT DISTANCE

52141-MFR-670

$22.89

12

COLLAR, PIVOT DISTANCE

52142-MFR-670

$28.26

13

SWINGARM SUB-ASSY., RR. *NH1* (BLACK)

52200-MFR-670ZJ

$1,320.39

15

TAPE, SIDE COVER PROTECTOR

83512-MAN-600

$1.49

16

BOLT, FLANGE (8X35)

90103-MFR-670

$6.75

17

BOLT, FLANGE (10X50)

90106-MFR-670

$4.33

18

BOLT, SOCKET (6X12)

90108-MFR-670

$3.21

19

NUT, U (10MM)

90304-KAE-871

$4.33

20

NUT, U (18MM)

90306-MCS-G01

$6.81

21

WASHER, SPECIAL (18MM)

90432-MCS-G00

$2.87

22

WASHER, PLAIN (8MM)

90501-MFR-670

$3.80

23

CIRCLIP (INNER) (37)

90651-MEW-920

$3.13

24

BEARING, NEEDLE

91071-MBW-E11

$17.20

25

BEARING, SPHERICAL (10MM)

91071-MEC-003

$36.11

26

BEARING, RADIAL BALL (20X37X9)

91071-MEW-921

$9.31

27

BEARING, NEEDLE

91071-MR7-003

$25.68

28

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

29

DUST SEAL (16X26X2.5)

91254-MBR-003

$5.84

30

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

31

DUST SEAL (16X26X2.5)

91254-MBR-003

$5.84
