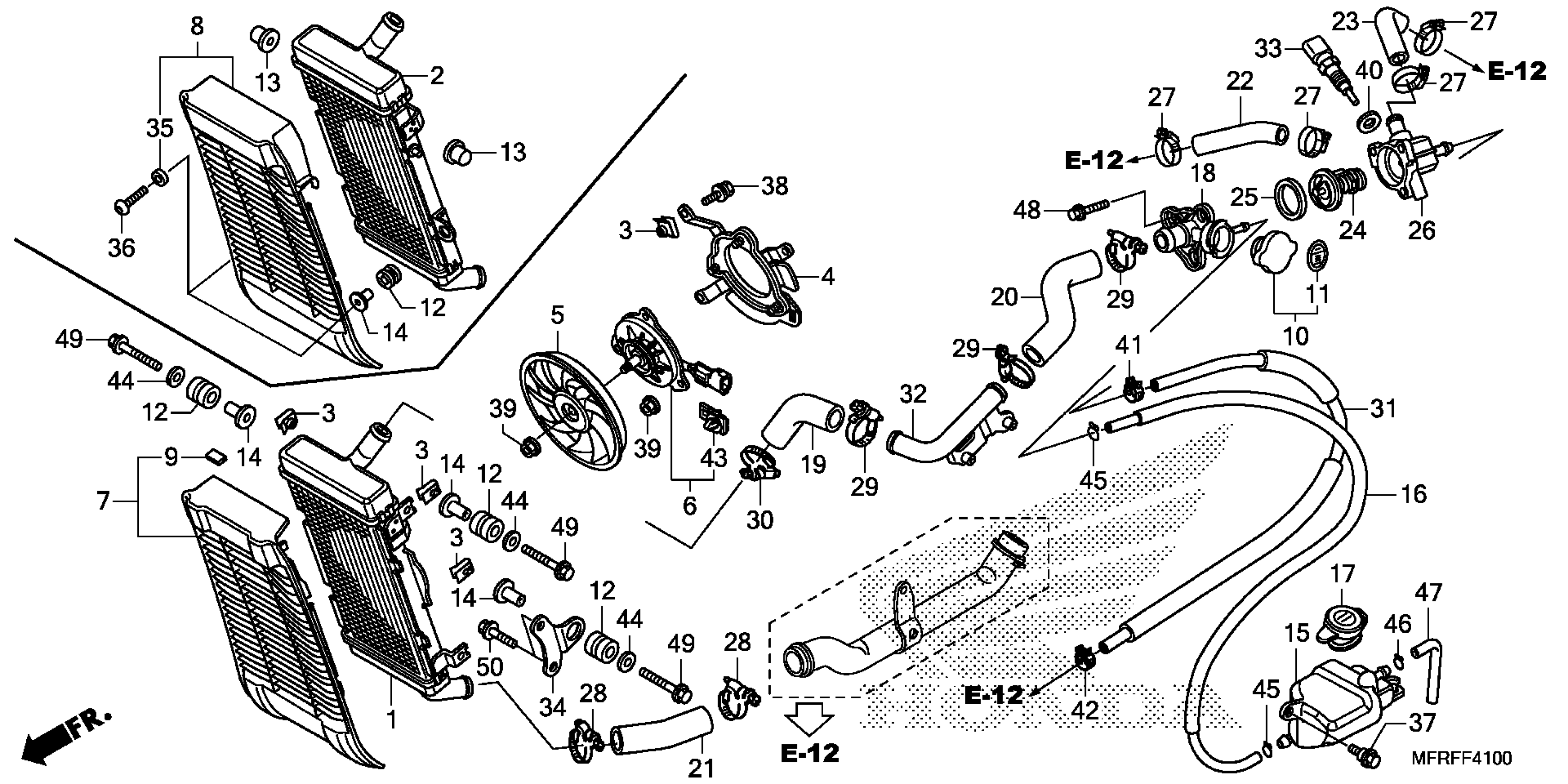

Honda VT1300CXA2AC (15) MOTORCYCLE, JPN, VIN# JH2SC618-FK400001 RADIATOR Diagram

#

Description
Price

1

RADIATOR This part replaces 19010-MFR-305.

19010-MFR-671

$680.00

1

RADIATOR

19010-MFR-671

$680.00

3

NUT, SETTING (6MM)

19014-KEA-003

$3.10

4

SHROUD (COO)

19015-MFR-305

$75.59

5

FAN, COOLING

19020-MCH-A11

$18.02

6

MOTOR ASSY., FAN

19030-MFR-671

$283.74

7

GRILLE, RADIATOR

19032-MFR-670

$64.66

9

RUBBER, RADIATOR GRILLE

19033-MFR-670

$1.62

10

CAP, RADIATOR

19037-GEE-710

$30.28

11

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

12

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

14

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

15

TANK, RADIATOR RESERVE (COO) This part replaces 19101-MFR-670.

19101-MFY-305

$41.15

16

TUBE, RADIATOR RESERVE TANK

19102-MFR-670

$18.80

17

CAP, RESERVE TANK

19104-MB0-700

$12.16

18

NECK ASSY., FILLER

19106-MFR-671

$72.15

19

HOSE A, RADIATOR (UPPER)

19115-MFR-670

$12.44

20

HOSE B, RADIATOR (UPPER)

19116-MFR-670

$22.21

21

HOSE, RADIATOR (LOWER)

19117-MFR-670

$11.16

22

HOSE, FR. OUTLET WATER

19118-MFR-670

$8.41

23

HOSE, RR. OUTLET WATER

19119-MFR-670

$8.41

24

THERMOSTAT ASSY.

19300-MCH-A00

$47.76

25

RUBBER, THERMOSTAT

19305-KV3-010

$6.07

26

CASE, THERMOSTAT

19311-MFR-670

$90.07

27

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

28

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.58

29

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

30

CLAMP, HOSE

19516-MER-D10

$7.66

31

HOSE, BYPASS

19531-MFR-A00

$24.11

32

PIPE D, WATER

19570-MFR-670

$30.93

33

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$30.74

34

STAY, RADIATOR (LOWER)

50214-MFR-670

$6.82

37

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

38

BOLT-WASHER (6X14)

90120-GHB-611

$2.67

39

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

40

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

41

CLAMP, TUBE (17.5)

90652-MBB-D41

$2.02

42

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$9.24

43

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

44

WASHER, PLAIN (6MM)

94103-06700

$1.49

45

CLIP, TUBE (B12)

95002-02120

$2.00

46

CLIP, TUBE (C11)

95002-70000

$1.56

47

BULK HOSE, VACUUM (7X3000) (7X730)

95005-70003-30M

$23.45

48

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

49

BOLT, FLANGE (6X28)

95801-06028-07

$1.87

50

BOLT, FLANGE (8X18)

95701-08018-07

$1.49

50

BOLT, FLANGE (8X18) This part replaces 95801-08018-07.

95701-08018-07

$1.49
