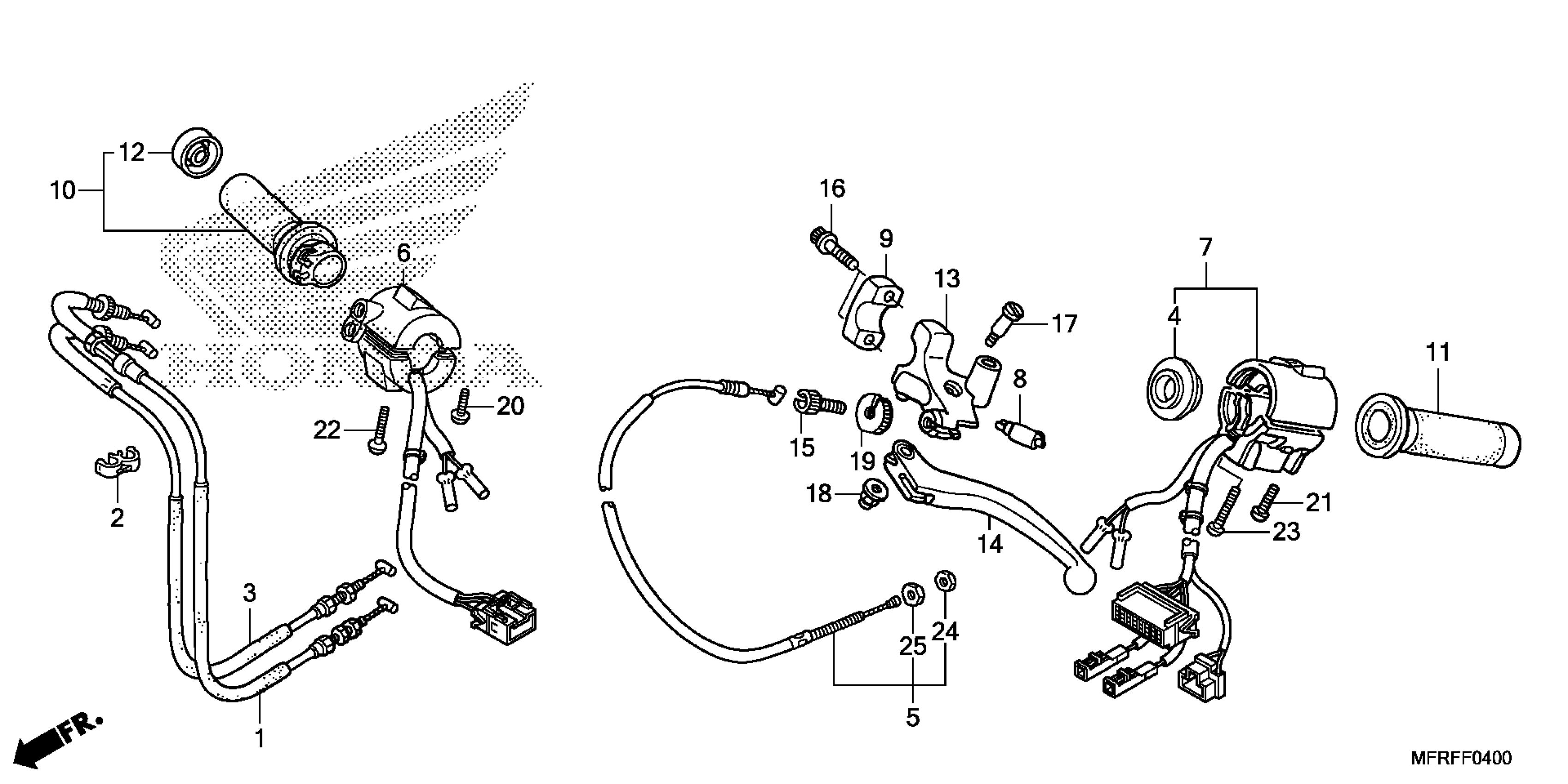

Honda VT1300CXA2AC (15) MOTORCYCLE, JPN, VIN# JH2SC618-FK400001 HANDLE SWITCH@CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MFR-670

$29.30

2

CLIP, THROTTLE WIRE

17915-SA7-981

$3.01

3

CABLE B, THROTTLE

17920-MFR-670

$29.30

4

ADAPTER

17962-MFE-A40

$14.26

5

CABLE, CLUTCH

22870-MFR-670

$28.78

6

SWITCH ASSY., STARTER & STOP

35130-MFR-681

$138.67

7

SWITCH ASSY., TURN SIGNAL

35200-MFR-681

$154.66

8

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

10

GRIP, R. HANDLE

53145-MFE-A40

$49.05

10

GRIP, R. HANDLE This part replaces 53145-MFE-305.

53145-MFE-A40

$49.05

11

GRIP, L. HANDLE

53166-MFE-A40

$37.87

11

GRIP, L. HANDLE This part replaces 53166-MFE-305.

53166-MFE-A40

$37.87

12

CAP, R. GRIP END

53167-MFE-A40

$5.96

13

BRACKET, HANDLE LEVER

53172-MBA-000

$31.64

14

LEVER, L. HANDLE This part replaces 53178-MAV-305.

53178-MAV-750

$18.40

14

LEVER, L. HANDLE

53178-MAV-750

$18.40

15

BOLT, WIRE ADJUSTING

53192-MFR-670

$7.71

16

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

17

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

18

NUT, CAP (6MM)

90201-415-000

$2.05

19

NUT, FIXING

90321-MFR-670

$6.95

20

SCREW, PAN (5X20)

93500-05020-0A

$1.49

21

SCREW, PAN (5X22)

93500-05022-0A

$1.49

22

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

23

SCREW, PAN (5X32)

93500-05032-0A

$1.49

24

NUT, HEX. (8MM)

94002-08000-0S

$1.49

25

NUT, HEX. (8MM) NUT, FLANGE (10MM)

94031-08000

$1.49
