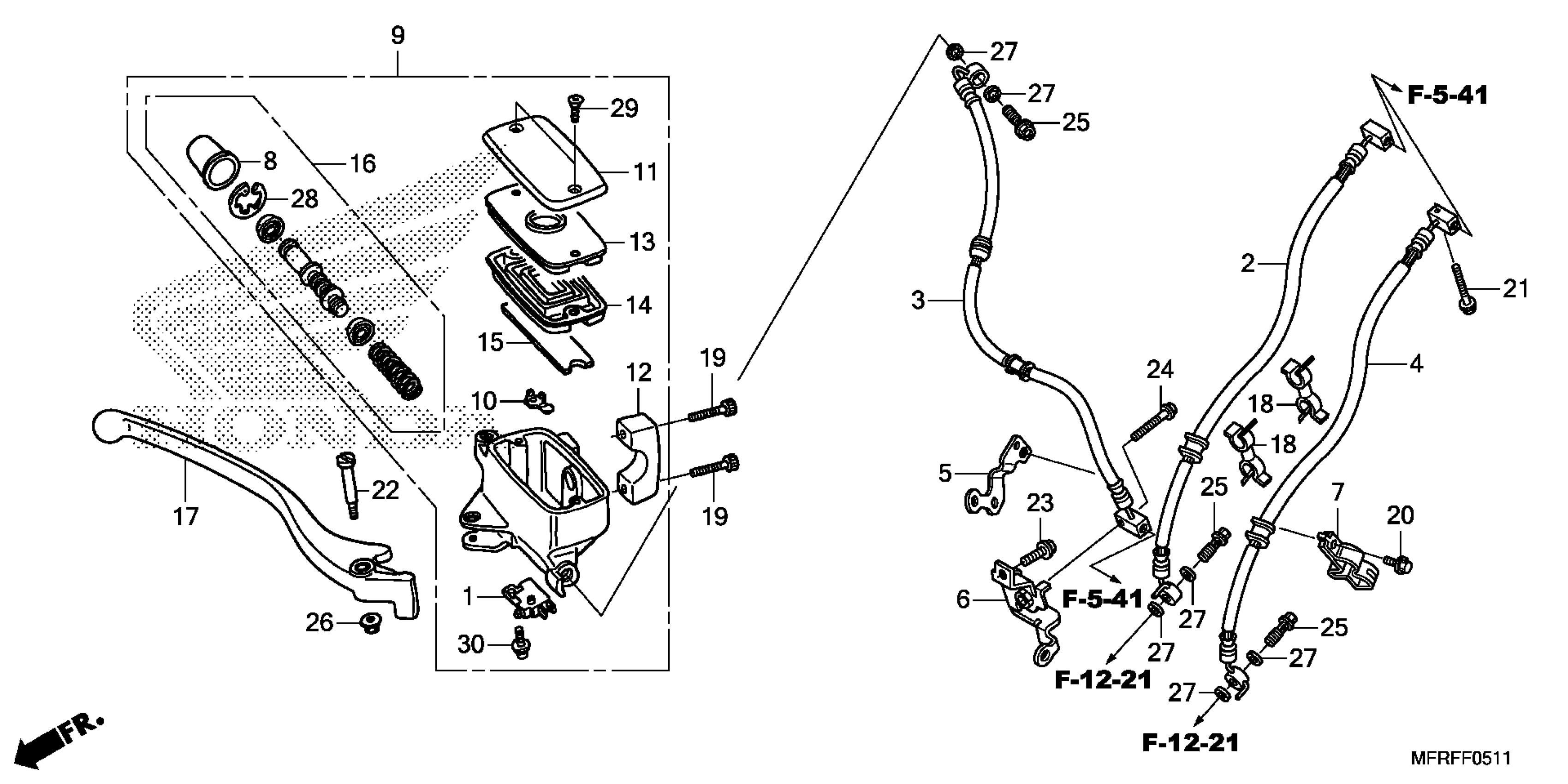

Honda VT1300CXA2AC (15) MOTORCYCLE, JPN, VIN# JH2SC618-FK400001 FRONT BRAKE MASTER CYLINDER (3) Diagram

SWITCH ASSY., FR. STOP

35340-MM5-601

$12.97

HOSE C, SUB-BRAKE

43322-MFR-A01

$59.85

HOSE A, FR. BRAKE

45124-MFR-A01

$56.80

HOSE F, FR. BRAKE

45129-MFR-A01

$52.23

BRACKET, L. FR. BRAKE HOSE

45138-MFR-670

$4.00

STAY, BRAKE JOINT

45156-MFR-A00

$14.64

CLAMP, FR. BRAKE HOSE

45181-MFR-A00

$9.00

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE This part replaces 45510-MFR-306.

45510-MFR-681

$255.18

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-MFR-681

$255.18

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER, R. HANDLEBAR This part replaces 53175-MR5-305.

53175-MR5-003

$16.29

CLIP, SENSOR HOSE This part replaces 53740-SE0-952.

53740-SE0-953

$3.28

CLIP, SENSOR HOSE

53740-SE0-953

$3.28

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, FLANGE (6X10)

90106-MBZ-G00

$1.49

BOLT, FLANGE (6X25)

90106-MEJ-D00

$2.05

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.49

BOLT, FLANGE (6X25)

90124-MCH-A00

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
