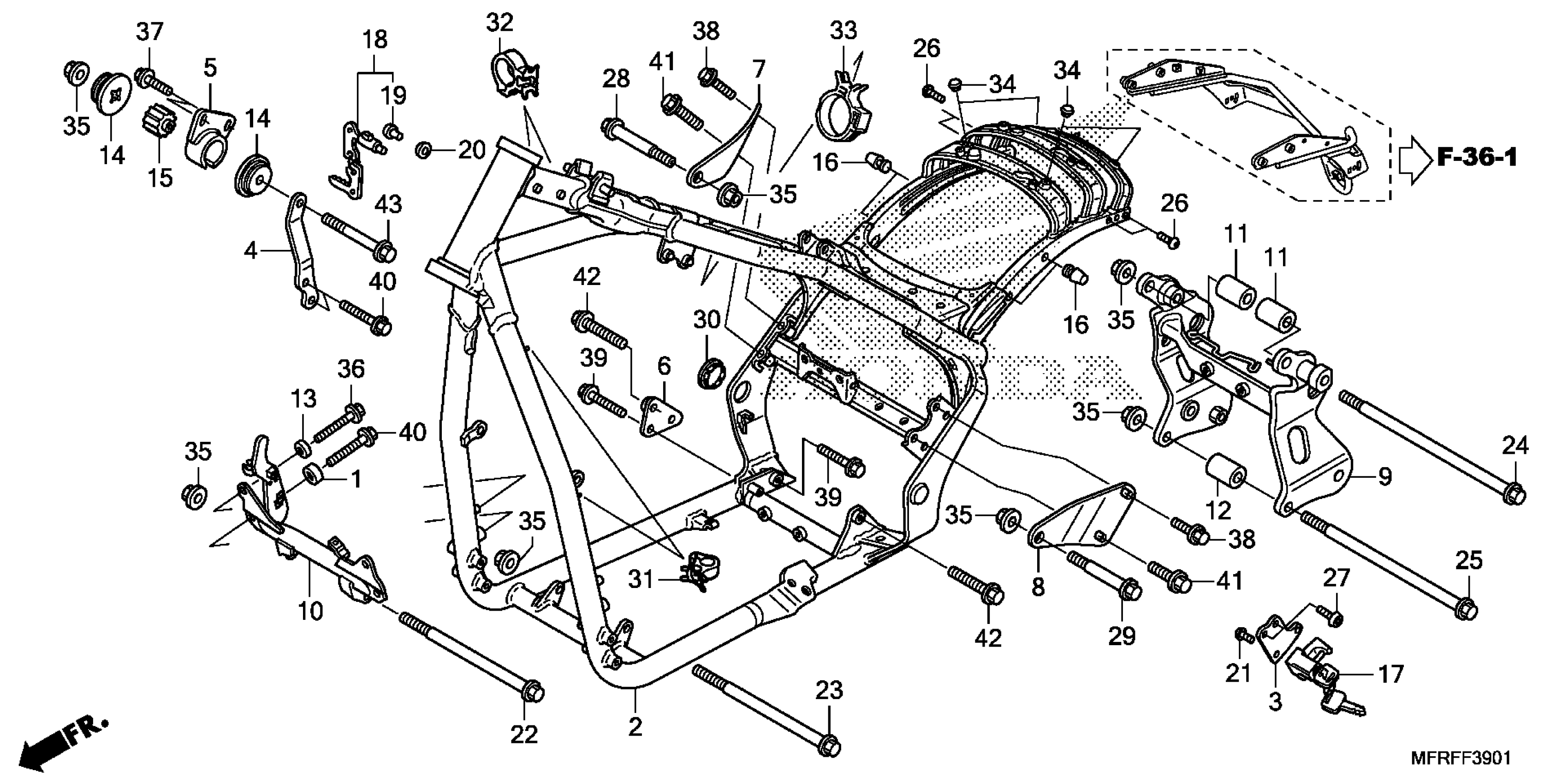

Honda VT1300CXA2AC (15) MOTORCYCLE, JPN, VIN# JH2SC618-FK400001 FRAME (2) Diagram

#

Description
Price

1

COLLAR B, MUFFLER STAY

18309-GN3-670

$2.49

2

FRAME *NH125MU* (NIMBUS GRAY METALLIC)

50100-MFR-L00ZJ

$2,753.58

3

BRACKET, HELMET HOLDER

50165-MFR-670

$5.10

4

PLATE, ENGINE HANGER (LOWER)

50202-MFR-670

$31.26

5

PLATE, ENGINE HANGER CENTER

50203-MFR-670

$49.04

6

PLATE, RR. ENGINE MOUNT (LOWER) (RH)

50204-MFR-670

$13.54

7

PLATE, R. RR. ENGINE HANGER (UPPER)

50207-MFR-670

$39.58

8

PLATE, L. RR. ENGINE HANGER (UPPER)

50208-MFR-670

$39.58

9

PLATE, PIVOT MOUNT

50210-MFR-670

$285.78

10

PIPE, FR. CROSS

50220-MFR-670

$183.48

11

COLLAR, ENGINE HANGER (24X41.5)

50221-MFR-670

$7.97

12

COLLAR, ENGINE HANGER (24X32)

50223-MFR-670

$6.45

13

COLLAR A, FR. CROSS PIPE

50232-MFR-670

$2.88

14

RUBBER C, MOUNTING

50302-HN8-003

$6.45

15

RUBBER, ENGINE HEAD MOUNTING

50305-HN8-003

$10.40

16

RUBBER A, STOPPER

50352-428-000

$2.62

17

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$25.92

18

LOCK SET, HANDLEBAR

53600-MFR-AC0

$76.17

18

LOCK SET, HANDLEBAR This part replaces 53600-404-611.

53600-MFR-AC0

$76.17

19

RIVET

53603-MFR-AC1

$2.32

19

RIVET This part replaces 53603-051-000.

53603-MFR-AC1

$2.32

20

WASHER (4.5MM) This part replaces 53604-098-940.

53604-098-941

$2.16

20

WASHER (4.5MM)

53604-098-941

$2.16

21

BOLT, ONE-WAY (6X12)

90105-KEB-620

$2.06

22

BOLT, FLANGE (10X148)

90110-MFR-670

$7.09

23

BOLT, FLANGE (10X151)

90111-MFR-670

$7.41

24

BOLT, FLANGE (10X235.5)

90112-MFR-670

$8.77

25

BOLT, FLANGE (10X212)

90117-MFR-670

$8.77

26

SCREW, PAN (6X14)

90118-MR1-000

$2.88

27

BOLT, TORX (6X13)

90130-MEW-D20

$2.80

28

BOLT, FLANGE (10X52)

90154-MFR-670

$11.42

29

BOLT, FLANGE (10X66)

90155-MFR-670

$12.41

30

CAP, R. LOCK NUT (BOTH SIDES)

90312-MB0-700

$16.34

31

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$1.99

32

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

33

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

34

PLUG, HOLE

90852-446-630

$2.33

35

NUT, FLANGE (10MM)

90303-428-900

$3.12

35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

36

BOLT, FLANGE (6X28)

95701-06028-07

$1.03

37

BOLT, FLANGE (8X20)

95701-08020-07

$1.70

38

BOLT, FLANGE (8X25)

95701-08025-07

$0.88

39

BOLT, FLANGE (8X28)

95701-08028-07

Unavailable

40

BOLT, FLANGE (8X30)

95701-08030-07

$2.07

41

BOLT, FLANGE (10X25)

95701-10025-07

$1.29

42

BOLT, FLANGE (10X32)

95701-10032-07

$1.61

43

BOLT, FLANGE (10X65)

95701-10065-07

$2.00
