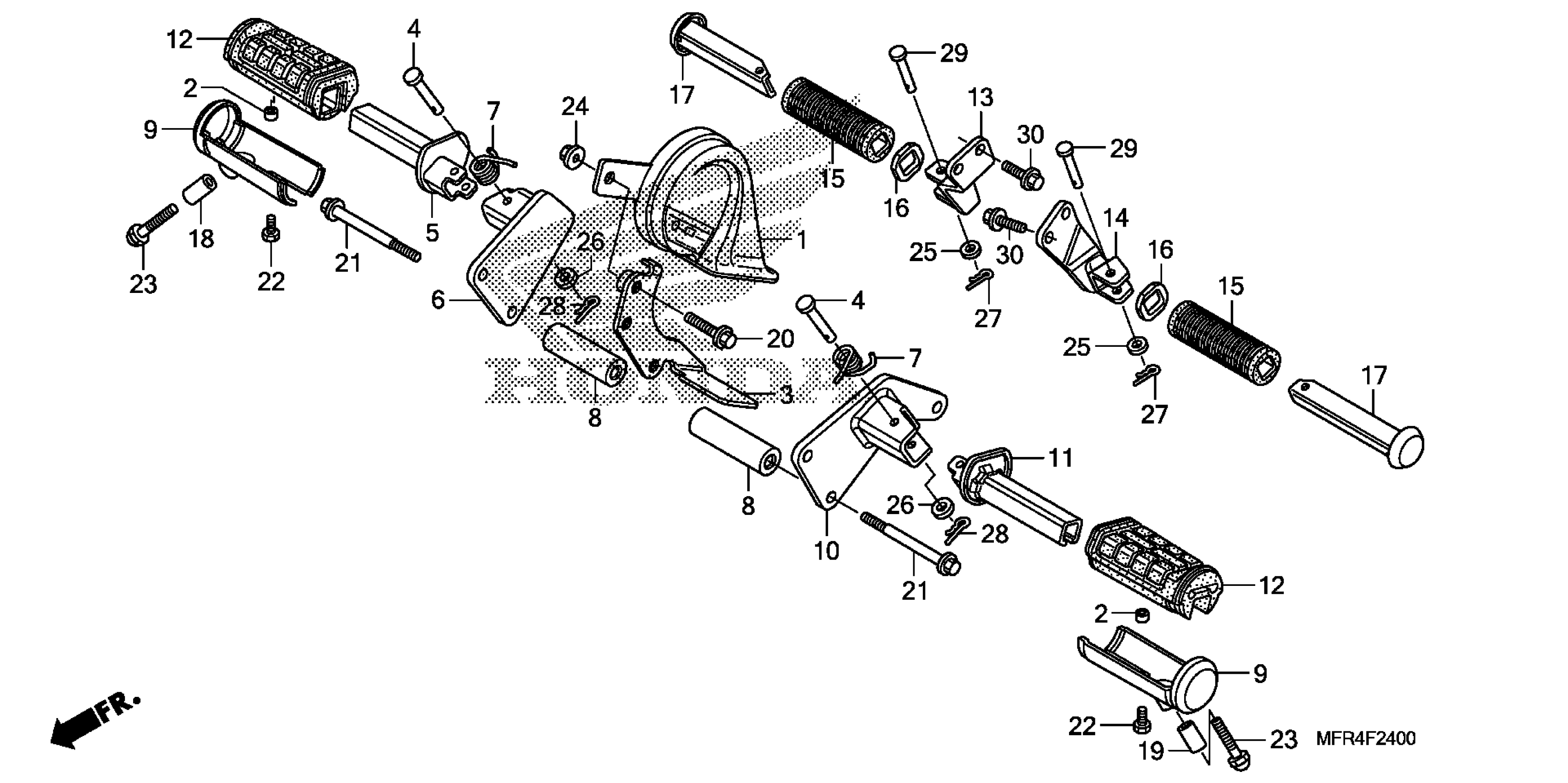

Honda VT1300CXA (11) FURY, JPN, VIN# JH2SC610-BK100001 TO JH2SC610-BK199999 STEP Diagram

#

Description
Price

1

HORN (LOW)

38120-MFR-671

$72.32

2

COLLAR, CHAIN CASE

40515-413-000

$2.80

3

STAY, HORN

50176-MFR-670

$19.90

4

PIN, STEP BAR JOINT

50603-033-010

$2.98

5

BAR, R. STEP (COO)

50612-MFR-305

$15.98

6

BRACKET, R. STEP

50615-MFR-670

$40.26

7

SPRING, STEP RETURN

50617-MB1-700

$5.41

8

COLLAR, STEP BRACKET

50619-MFR-670

$9.16

9

STOPPER, STEP RUBBER

50619-MK7-010

$12.62

10

BRACKET, L. STEP

50625-MFR-670

$48.23

11

BAR, L. STEP (COO)

50642-MFR-305

$15.98

12

RUBBER, MAIN STEP (COO)

50661-MFR-305

$9.78

13

BRACKET, R. PILLION STEP

50680-MFR-670

$68.09

14

BRACKET, L. PILLION STEP

50685-MFR-670

$68.09

15

RUBBER, PILLION STEP (COO)

50710-MFR-305

$23.45

16

WASHER, PILLION STEP

50712-MFE-670

$2.81

17

BAR, PILLION STEP (COO)

50715-MFR-305

$20.51

18

COLLAR, R. STEP

90114-MFR-670

$3.62

19

COLLAR, L. STEP

90115-MFR-670

$3.44

20

BOLT, SPECIAL FLANGE (8X23)

90123-KR3-000

$3.41

21

BOLT, SPECIAL FLANGE (8X90)

90127-126-900

$6.15

22

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.29

23

BOLT, CAP (8X30)

92501-08030-0A

$3.21

24

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

25

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

26

WASHER, PLAIN (8MM)

94101-08000

$0.75

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

27

PIN, COTTER (1.6X25)

94201-16250

$0.94

28

PIN, COTTER (2.0X15)

94201-20150

$0.94

29

PIN A, PILLION STEP

95015-81000

$2.01

30

BOLT, FLANGE (8X20)

95701-08020-07

$1.70
