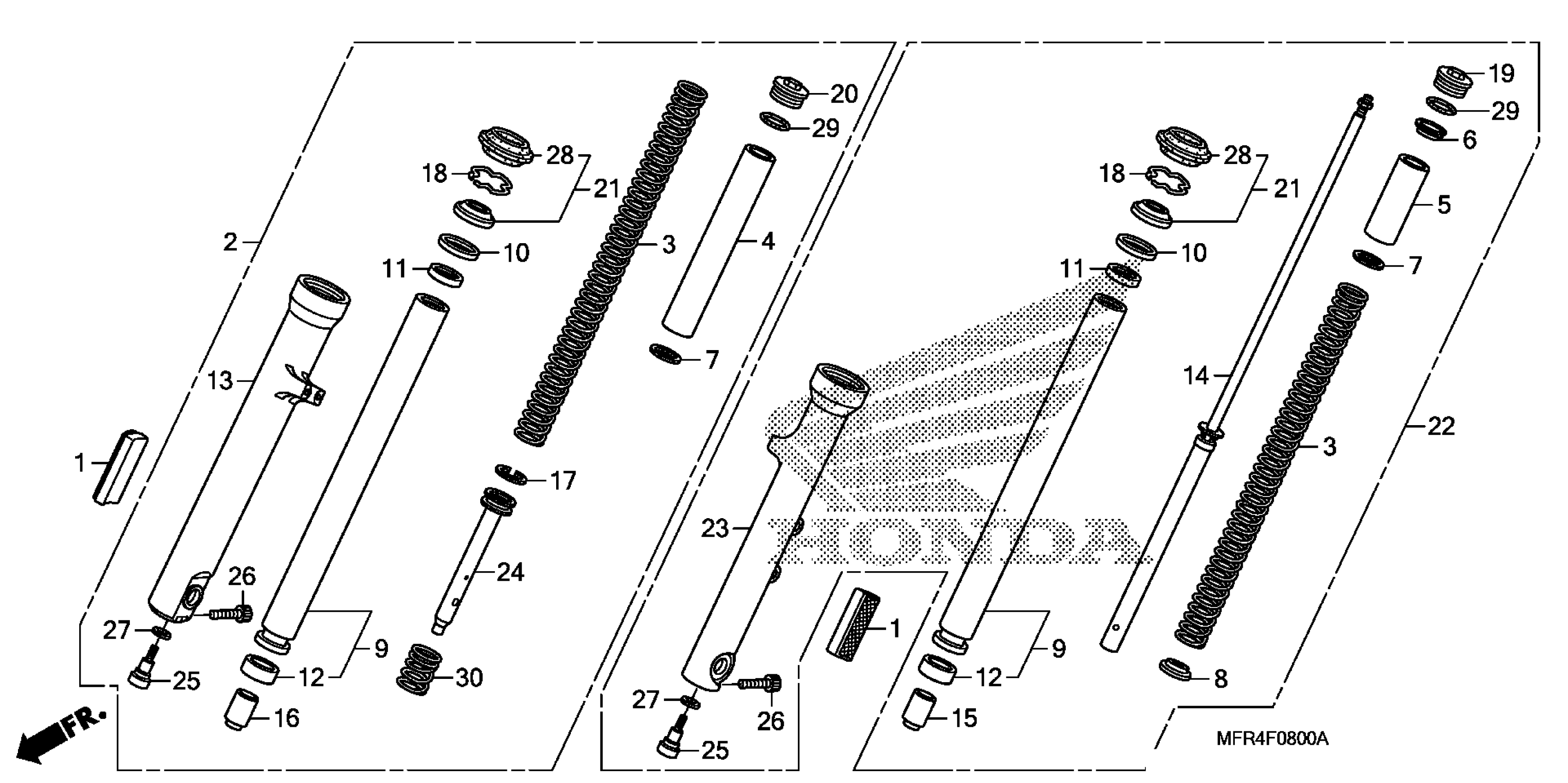

Honda VT1300CX6AC (12) FURY, JPN, VIN# JH2SC61W-CK000001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-MEA-671

$27.70

2

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MFR-306

$848.06

3

SPRING, FR. FORK

51401-MFR-671

$76.04

4

COLLAR, SPRING

51402-MFR-671

$18.15

5

COLLAR, SPRING (R. SIDE)

51402-ML7-921

$24.38

6

SEAT, SPRING

51404-MR7-003

$10.43

7

SEAT, SPRING

51405-KA4-711

$5.95

8

COLLAR, SPRING

51405-MCZ-D11

$6.46

9

PIPE, FR. FORK

51410-MFR-671

$420.24

10

RING, BACK-UP

51412-KZ3-003

$8.68

11

BUSH, GUIDE

51414-MFR-671

$19.90

12

BUSH, SLIDER

51415-MFR-671

$10.58

13

CASE, R. (LOWER)

51420-MFR-681

$384.25

14

DAMPER, FR.

51430-MFR-671

$247.06

15

PIECE, OIL LOCK (SHOWA)

51432-MS2-003

$29.47

16

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.78

17

RING, PISTON

51437-MCA-003

$7.26

18

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.88

19

BOLT, FR. FORK

51454-MBR-003

$29.70

20

BOLT, FR. FORK

51454-MCA-003

$16.29

21

SEAL SET, FR. FORK

51490-MFR-671

$27.55

22

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MFR-306

$848.06

23

CASE, L. (LOWER)

51520-MFR-681

$384.25

24

PIPE, SEAT

51540-MFR-671

$33.47

25

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

Unavailable

26

BOLT, SOCKET (8X32)

90122-MCH-A00

$2.01

27

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

28

DUST SEAL

91254-MCH-C11

$11.73

29

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.71

30

SPRING, FR. REBOUND

51416-MFR-671

$7.66
