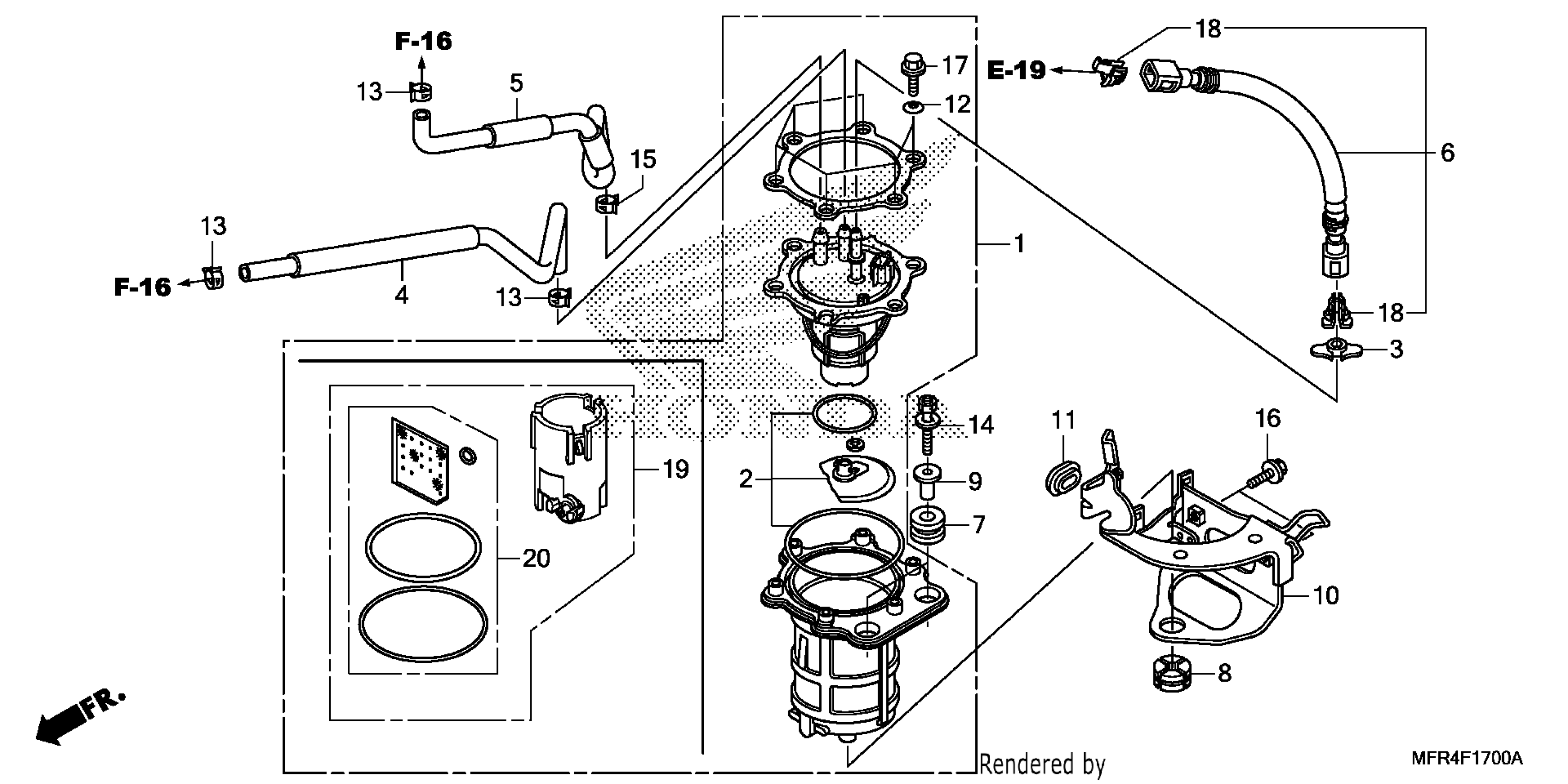

Honda VT1300CX3AC (11) FURY, JPN, VIN# JH2SC61M-BK000001 TO JH2SC61M-BK099999 FUEL PUMP Diagram

PUMP ASSY., FUEL (MSDS) This part replaces 16700-HN8-A62.

16700-HN8-601

$129.45

PUMP ASSY., FUEL (MSDS)

16700-HN8-601

$129.45

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17) This part replaces 16706-HN8-A62.

16706-HN8-305

$37.63

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)

16706-HN8-305

$37.63

RUBBER, FUEL JOINT

16719-HN8-A61

$2.12

TUBE, FUEL PUMP BREATHER

16730-MFR-670

$20.19

TUBE, FUEL

16951-MFR-670

$25.23

HOSE, FUEL FEED

17526-MFR-671

$63.74

RUBBER, MUFFLER

18334-KA3-830

$3.62

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

STAY, FUEL PUMP

50228-MFR-610

$55.45

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

WASHER, CONICAL SPRING

90501-HN8-A60

$0.72

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.88

BOLT-WASHER (6X30)

93404-06030-00

$1.19

CLAMP, TUBE (D13)

95002-41300-08

$2.80

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.08
