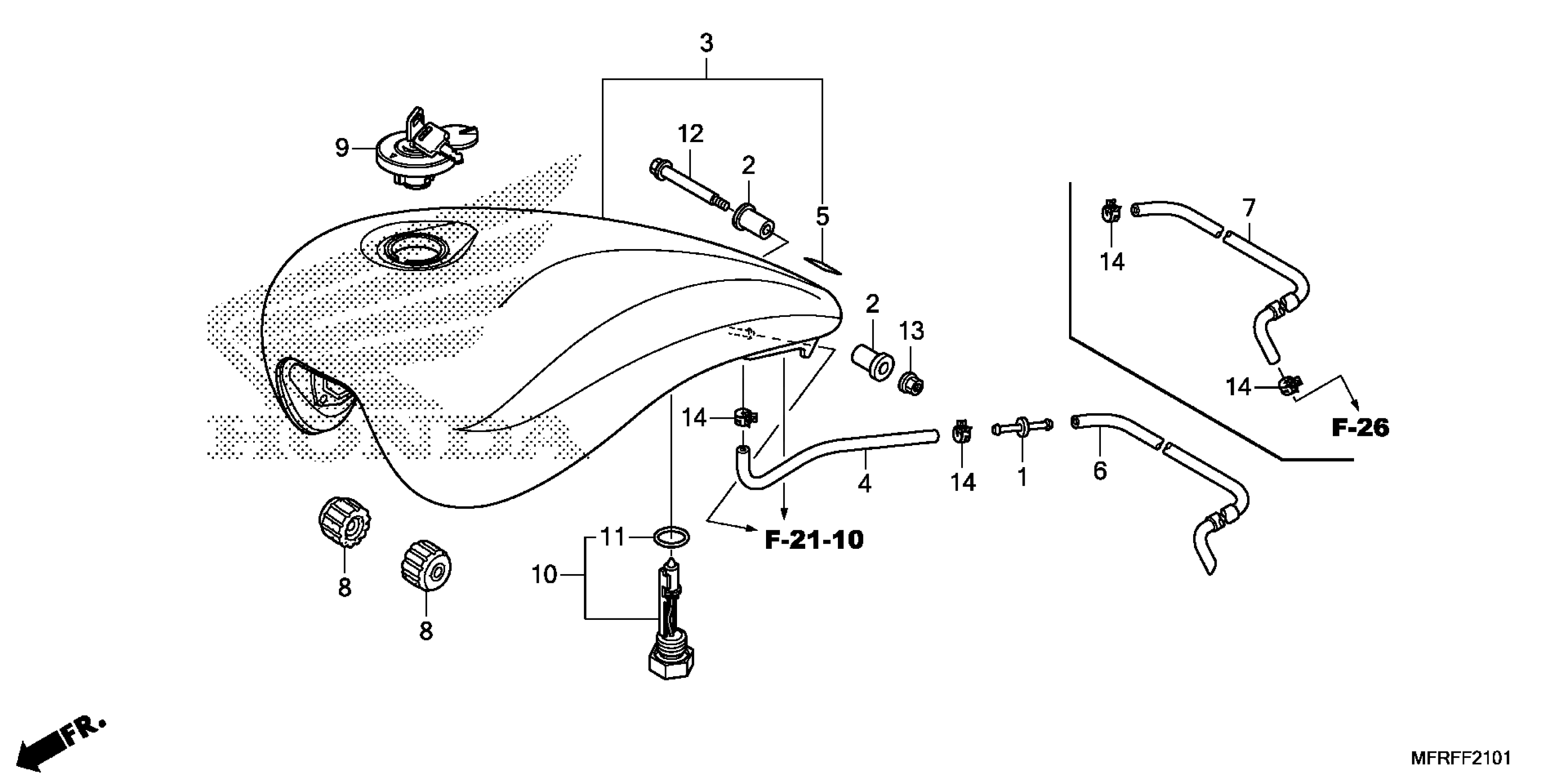

Honda VT1300CX3A (15) MOTORCYCLE, JPN, VIN# JH2SC61N-FK300001 FUEL TANK (2) Diagram

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

CUSHION, FUEL TANK PIVOT

17506-MBR-000

$5.44

TANK SET, FUEL *R342C* (CANDY PROMINENCE RED)

17520-MFR-670ZM

$1,521.48

TUBE, FUEL TANK BREATHER

17528-MCV-K00

$8.80

TAPE, TANK GUARD

17528-MR4-900

$2.33

TUBE, BREATHER

17529-MFR-670

$13.75

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.22

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$70.93

CAP, FUEL FILLER

17620-KR3-753

$70.93

SENSOR ASSY., FUEL RESERVE

37810-MER-D01

$52.21

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.92

BOLT, TANK HINGE

90135-MFR-670

$3.80

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.49
