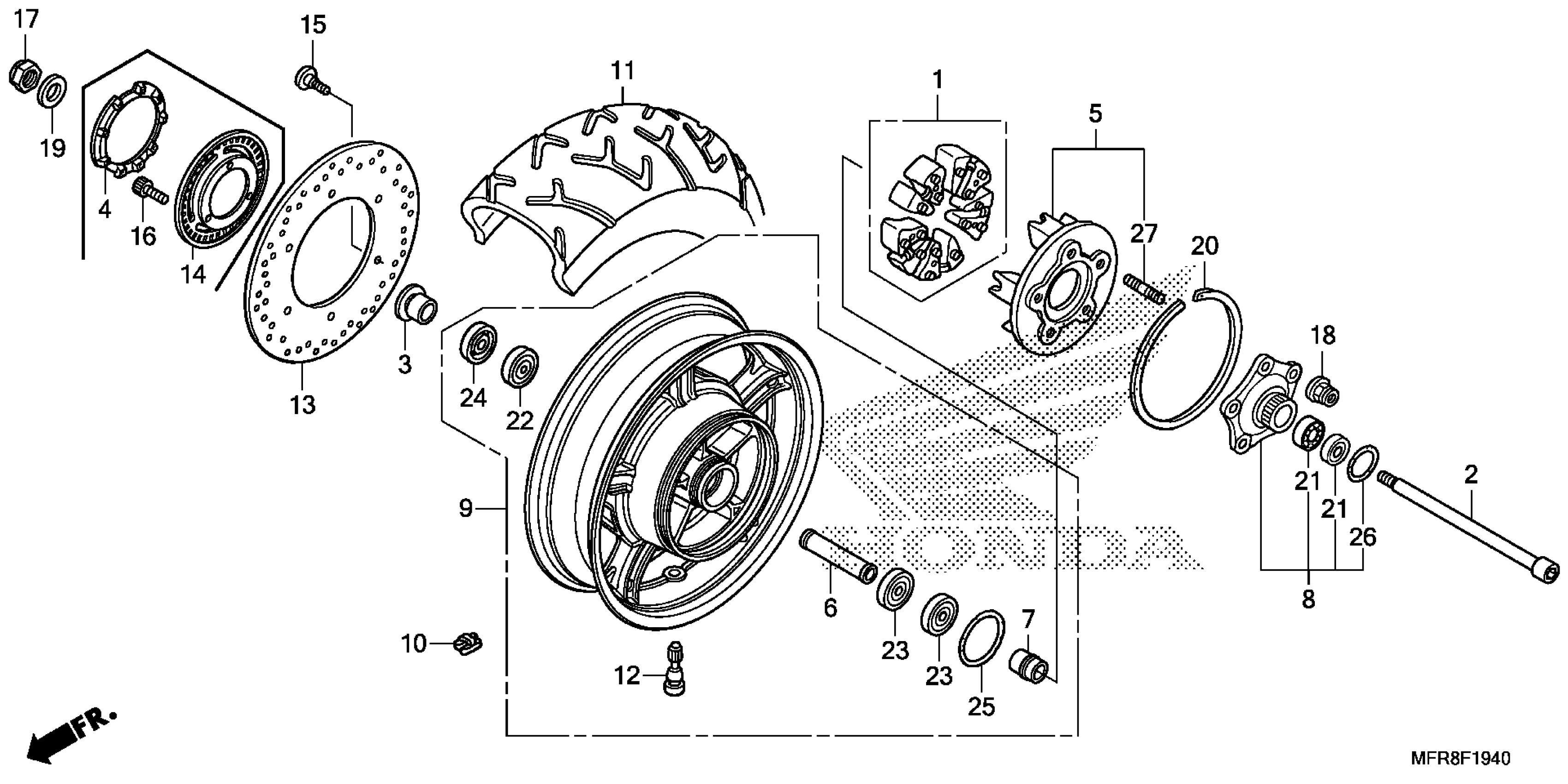

Honda VT1300CTAC (14) VT1300CT, JPN, VIN# JH2SC668-EK400001 REAR WHEEL (1) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MAZ-000

$54.00

2

AXLE, RR. WHEEL

42301-MFR-670

$61.91

3

COLLAR, RR. WHEEL

42312-MFR-670

$43.56

5

FLANGE B, FINAL DRIVEN

42614-MCH-000

$231.93

6

COLLAR, RR. AXLE DISTANCE

42620-MFR-670

$31.84

7

COLLAR A, RR. AXLE DISTANCE

42624-MFR-670

$25.62

8

FLANGE SET, FINAL DRIVEN

42630-MCH-000

$268.13

9

WHEEL SUB-ASSY., RR.

42650-MFR-B30

$922.12

9

WHEEL SUB-ASSY., RR. (COO)

42650-MFR-P00

$922.12

10

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.15

10

WEIGHT, BALANCE (20G)

42705-MER-D00

$16.09

10

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.85

11

TIRE, RR. This part replaces 42711-MFY-A01.

42711-MFY-A05

Unavailable

11

TIRE, RR. This part replaces 42711-MFY-A02.

42711-MFY-A04

$232.84

11

TIRE, RR. This part replaces 42711-MFY-A03.

42711-MFY-A04

$232.84

11

TIRE, RR.

42711-MFY-A04

$232.84

12

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$11.69

12

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.69

13

DISK, RR. BRAKE

43251-MFR-671

$293.54

15

BOLT, BRAKE DISK (8X24)

90105-MFL-D20

$3.83

17

NUT, U (22MM)

90305-MCF-D01

$7.35

18

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.68

19

WASHER (22X38X2.5)

90401-MAZ-000

$5.13

20

CIRCLIP (INNER) (188)

90651-MCH-000

$16.37

21

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$15.94

22

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$15.40

23

BEARING, RADIAL BALL (60/28)

91053-MFR-671

$17.18

24

DUST SEAL (35X52X7.5)

91254-MEE-003

$6.60

25

O-RING (61X2)

91302-MA6-003

$4.93

26

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

Unavailable

26

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

Unavailable

27

BOLT 2, STUD (12X32)

92900-12032-0E

$2.79
