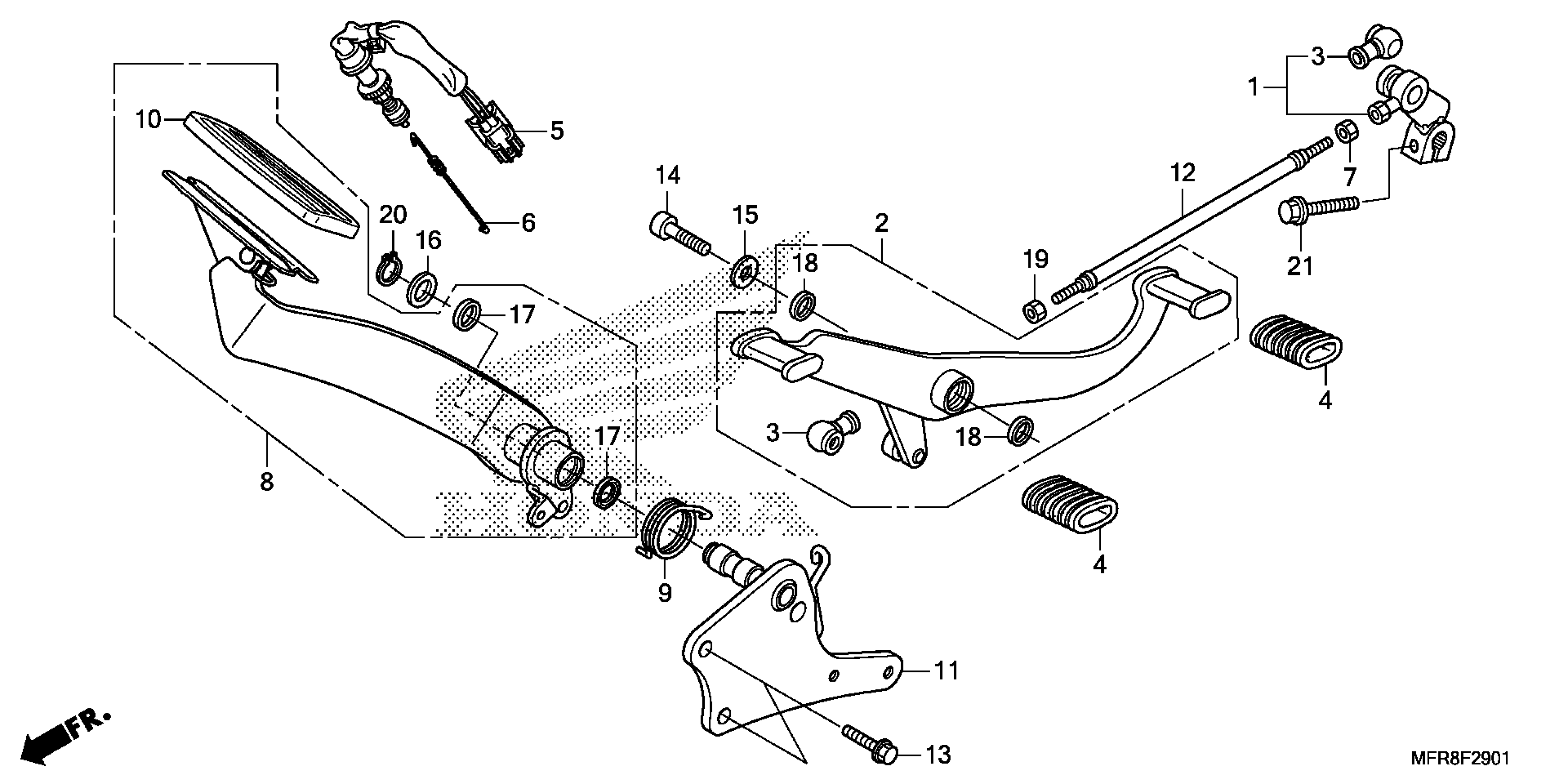

Honda VT1300CTAC (14) VT1300CT, JPN, VIN# JH2SC668-EK400001 PEDAL (2) Diagram

#

Description
Price

1

ARM, GEARSHIFT

24702-MFR-670

$45.56

2

PEDAL, GEARSHIFT

24710-MFY-A20

Unavailable

2

PEDAL, GEARSHIFT This part replaces 24710-MFY-306.

24710-MFY-A20

Unavailable

3

COVER, DUST

24724-MBW-D21

$6.66

4

RUBBER, GEARSHIFT PEDAL

24781-371-000

$4.89

5

SWITCH ASSY., RR. STOP

35350-MFR-672

$32.79

6

SPRING, STOP SWITCH

35357-MFR-670

$3.84

7

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.50

8

PEDAL ASSY., BRAKE (COO)

46500-MFY-306

Unavailable

9

SPRING, BRAKE PEDAL

46514-MFR-670

$7.76

10

COVER, BRAKE PEDAL

46545-SA5-980

$8.00

11

BRACKET, RR. BRAKE

50618-MFY-A00

$15.66

12

BOLT, TIE ROD

90065-MFR-670

$11.53

13

BOLT, FLANGE (8X19)

90102-MW4-000

$4.59

14

BOLT, SOCKET (8X16)

90128-KBP-900

$1.97

15

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.28

16

WASHER (15.2X25)

90557-230-000

$2.21

17

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

18

DUST SEAL (15X20X3)

91251-MT4-003

$3.63

19

NUT, HEX. (6MM)

94002-06020-0S

$1.01

20

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63

21

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.78
