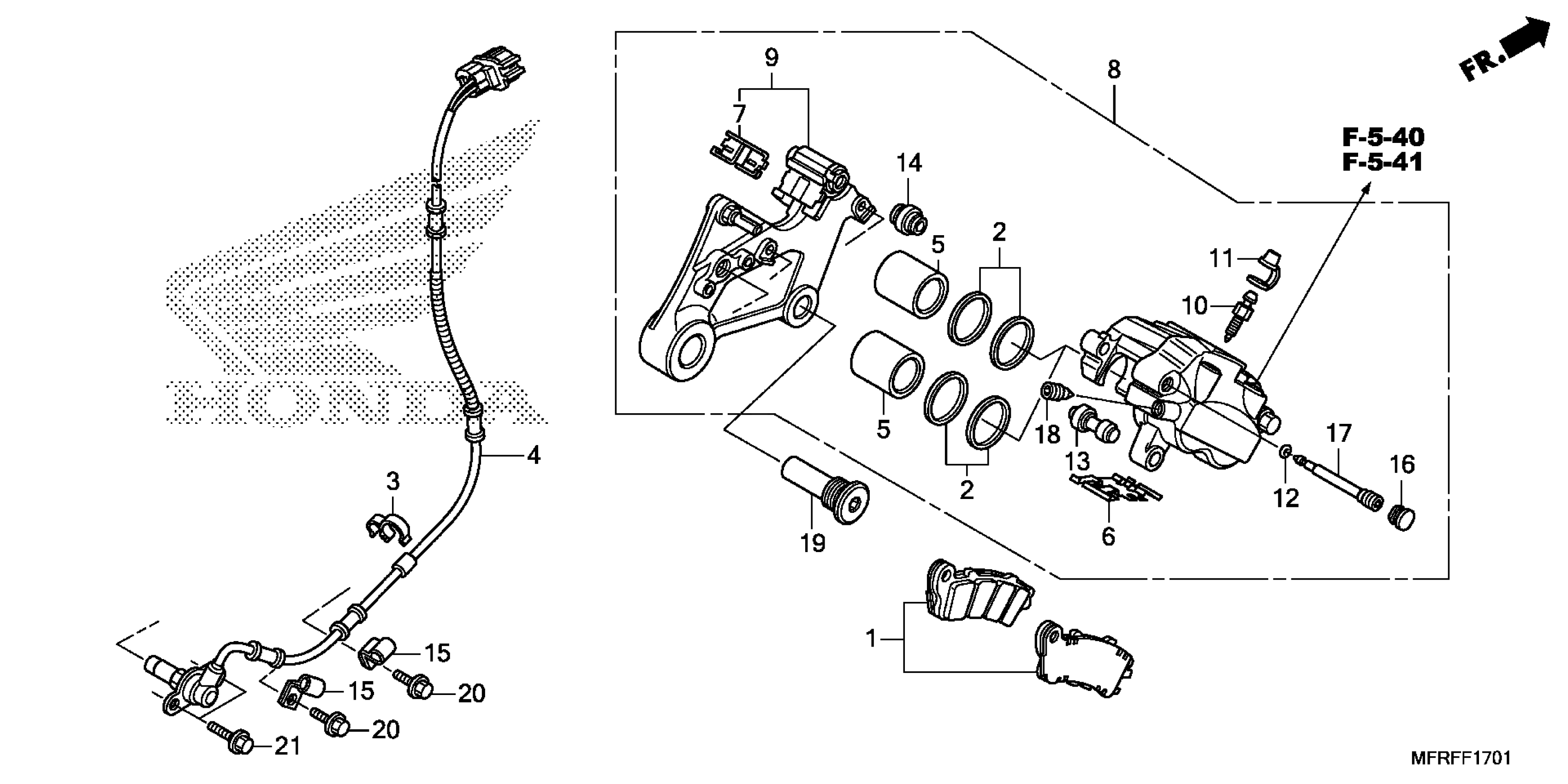

Honda VT1300CTAA (15) MOTORCYCLE, JPN, VIN# JH2SC66H-FK100001 REAR BRAKE CALIPER (2) Diagram

PAD SET, RR. This part replaces 06435-MFR-A01.

06435-MFR-A02

$63.90

SEAL SET, PISTON

06451-MA7-405

$9.55

CLAMP, PIPE

11152-KS4-003

$6.63

SENSOR, RR. WHEEL SPEED

38510-MFY-A11

$175.70

PISTON (32MM) (LEFT SIDE)

43107-MA7-006

$40.91

SPRING, PAD

43108-MAJ-G41

$8.51

RETAINER, RR. BRACKET

43112-MCV-006

$8.06

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MFR-A01

$349.94

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MFR-A21

$355.13

BRACKET SUB-ASSY., RR.

43190-MFR-A01

$92.75

BRACKET SUB-ASSY., RR.

43190-MFR-A21

$143.30

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

RING, STOPPER

45111-MAJ-G41

$3.54

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

CLAMP A, SENSOR CORD

45157-MEJ-J00

$3.22

PLUG, PIN

45203-MCC-006

$2.62

PIN, HANGER

45215-MAJ-G41

$5.99

SCREW, SOCKET

46175-671-651

$6.00

BOLT, BRAKE STOPPER

90158-MFR-670

$13.88

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
