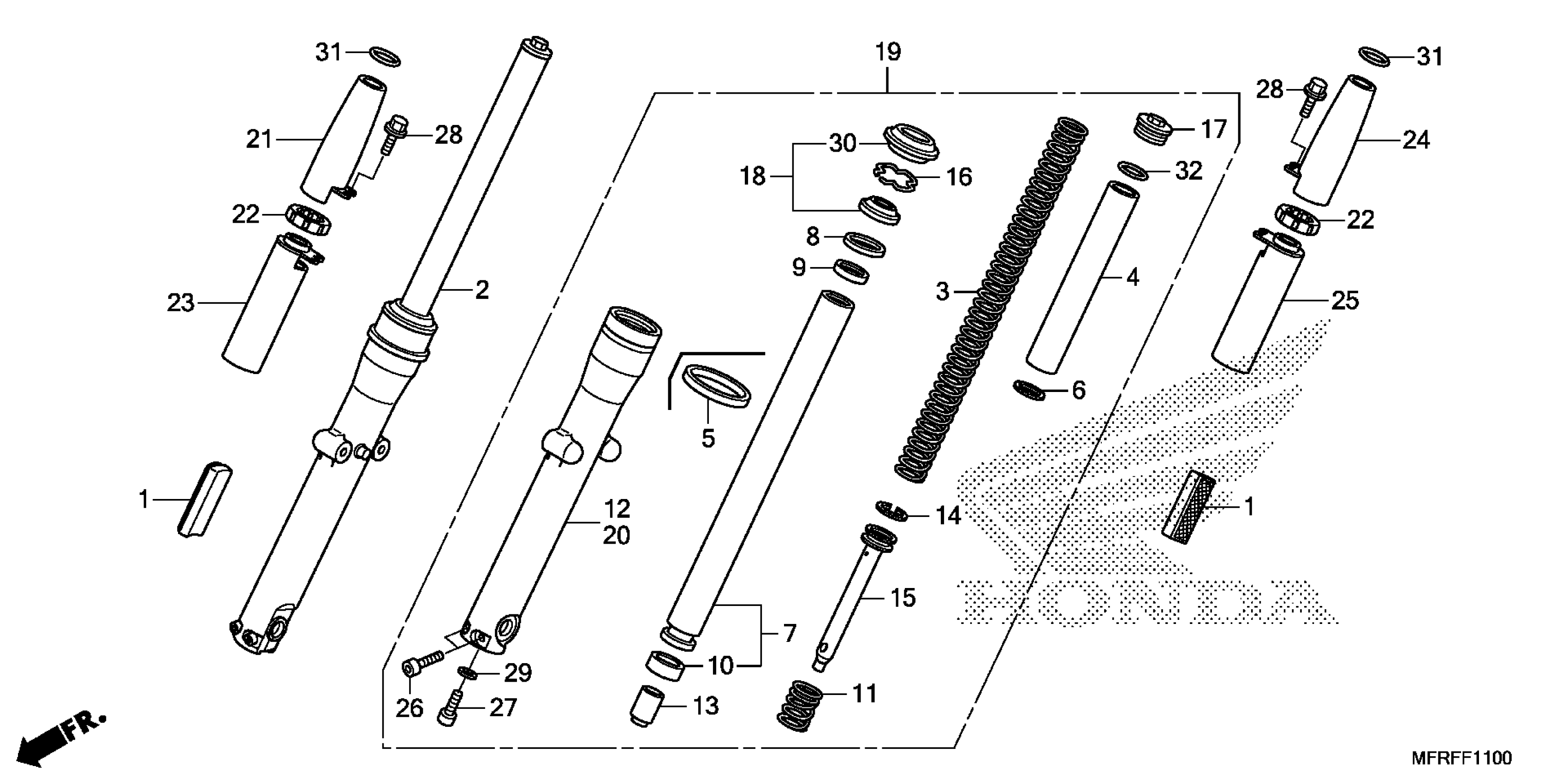

Honda VT1300CTA (15) MOTORCYCLE, JPN, VIN# JH2SC667-FK500001 FRONT FORK (1) Diagram

REFLECTOR, FR. REFLEX

33740-MFR-B11

$34.87

FORK ASSY., R. FR.

51400-MFY-A21

$841.16

FORK ASSY., R. FR. (COO)

51400-MFY-306

$841.16

SPRING, FR. FORK

51401-MFY-A01

$82.61

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$24.00

GUIDE, CASE

51402-MEA-671

$6.95

PLATE, SPRING JOINT

51404-MB4-003

$4.94

PIPE, FR. FORK

51410-MFY-A01

$399.03

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

BUSH, GUIDE

51414-MFJ-A51

$7.25

BUSH, SLIDER

51415-MFJ-A51

$7.25

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

CASE, R. (LOWER)

51420-MFY-A01

$397.85

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

RING, PISTON

51437-MB4-003

$9.57

PIPE, SEAT

51440-MFY-A01

$43.56

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

BOLT, FR. FORK

51454-MM9-671

$38.35

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$22.76

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

FORK ASSY., L. FR. (COO)

51500-MFY-306

$841.16

CASE, L. (LOWER)

51520-MFY-A01

$397.85

COVER, R. FR. FORK TOP

51610-MFY-A00

$111.85

MOUNT, FR. FORK COVER

51611-MBA-000

$9.75

COVER, R. FR. FORK (LOWER)

51620-MFY-A00

$114.98

COVER, L. FR. FORK TOP

51660-MFR-B50

$68.95

COVER, L. FR. FORK TOP

51660-MFY-A00

$111.85

COVER, L. FR. FORK (LOWER)

51670-MFY-A00

$110.03

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

BOLT, FLANGE (6X12)

90123-MBA-000

$2.92

BOLT, FLANGE (6X12)

90123-MFR-B30

$2.44

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$8.55

O-RING (39.5X5)

91305-MC7-000

$3.31

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
