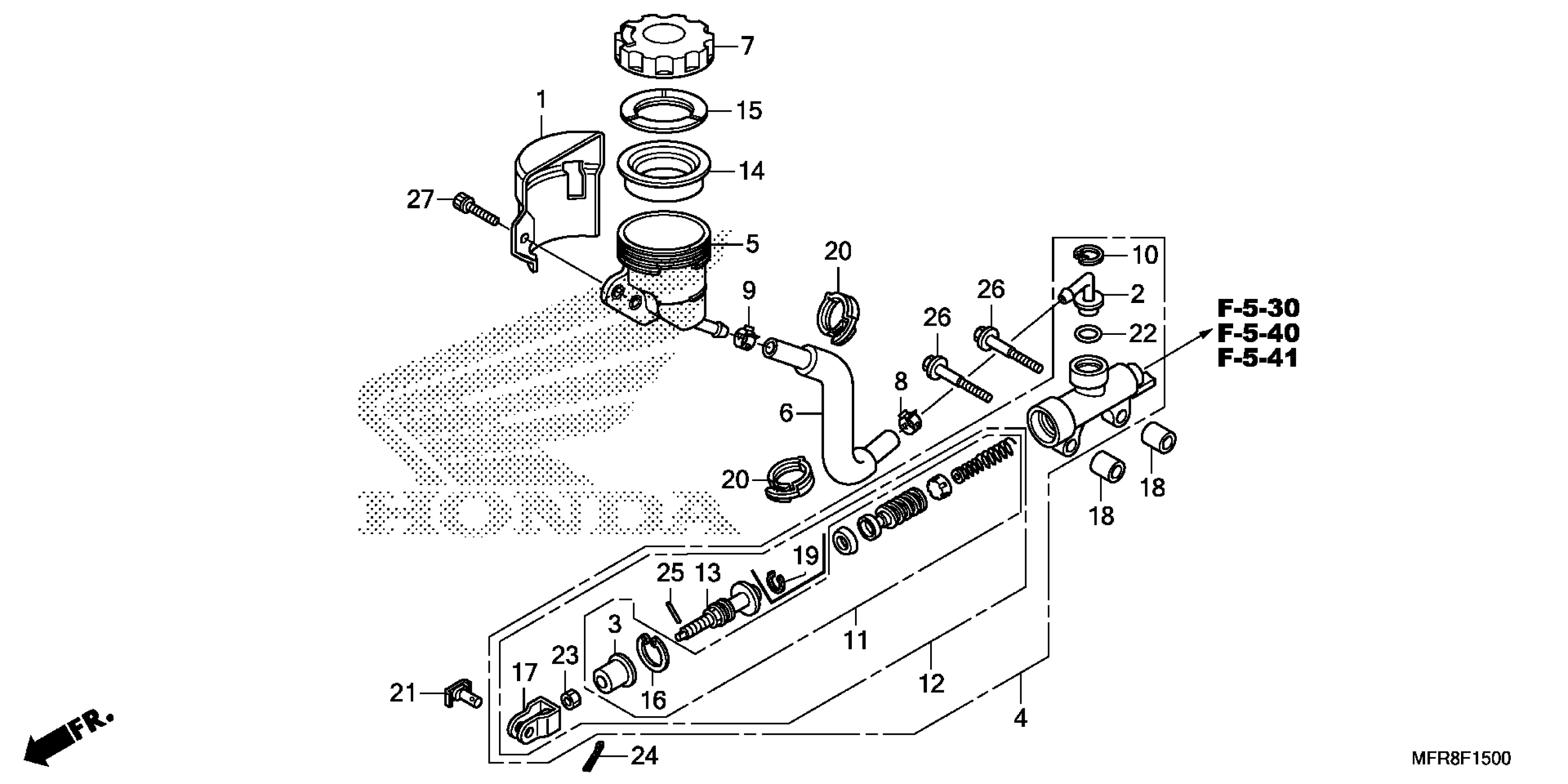

Honda VT1300CTA (14) VT1300CT, JPN, VIN# JH2SC667-EK400001 REAR BRAKE MASTER CYLINDER Diagram

COVER, RR. BRAKE OIL CUP

21341-MCH-000

$17.53

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$10.26

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. (NISSIN) This part replaces 43510-MFR-305.

43510-MFR-671

$207.95

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-MFR-671

$207.95

CUP, MASTER CYLINDER OIL

43511-MA6-006

$40.52

HOSE, RR. MASTER CYLINDER

43512-MFR-671

$11.11

CAP, OIL CUP

43513-MY1-006

$29.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.81

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

ROD, PUSH

43530-MV9-006

$35.31

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-MAH-671

$14.30

COLLAR, RR. BRAKE BRACKET

50617-MFR-670

$3.74

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

PIN, JOINT

90751-MEH-000

$3.26

O-RING (14.8X2.4)

91212-422-006

$2.56

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN, SPRING (2X10)

94305-20102

$1.49

BOLT, FLANGE (6X35)

95801-06035-08

$1.89

BOLT, SOCKET (6X16)

96600-06016-07

$1.74
