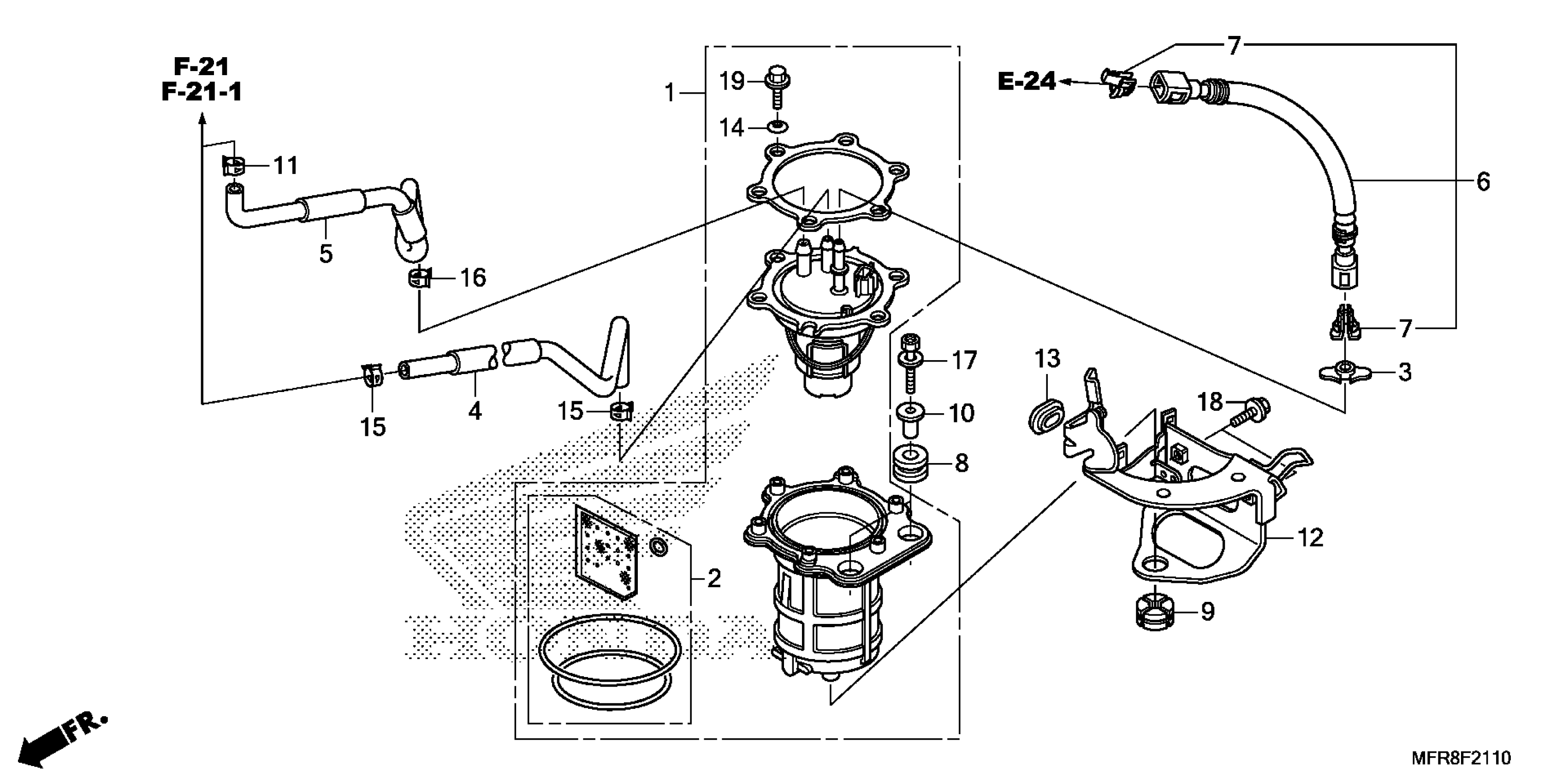

Honda VT1300CTA (14) VT1300CT, JPN, VIN# JH2SC667-EK400001 FUEL PUMP Diagram

PUMP ASSY., FUEL (MSDS)

16700-HN8-601

$129.45

FILTER SET (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)

16706-HR0-F01

$22.33

RUBBER, FUEL JOINT

16719-HN8-A61

$2.12

TUBE, FUEL PUMP BREATHER

16730-MFY-A00

$24.10

TUBE, FUEL

16951-MFY-A00

$32.96

HOSE, FUEL FEED

17526-MFR-671

$63.74

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.08

RUBBER, MUFFLER

18334-KA3-830

$3.62

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.26

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

STAY, FUEL PUMP

50228-MFR-610

$55.45

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

WASHER, CONICAL SPRING

90501-HN8-A60

$0.72

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.88

CLAMP, CANISTER HOSE

90682-SA0-671

$7.13

BOLT-WASHER (6X30)

93404-06030-00

$1.19

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

BOLT, FLANGE (6X14)

96001-06014-00

$1.64
