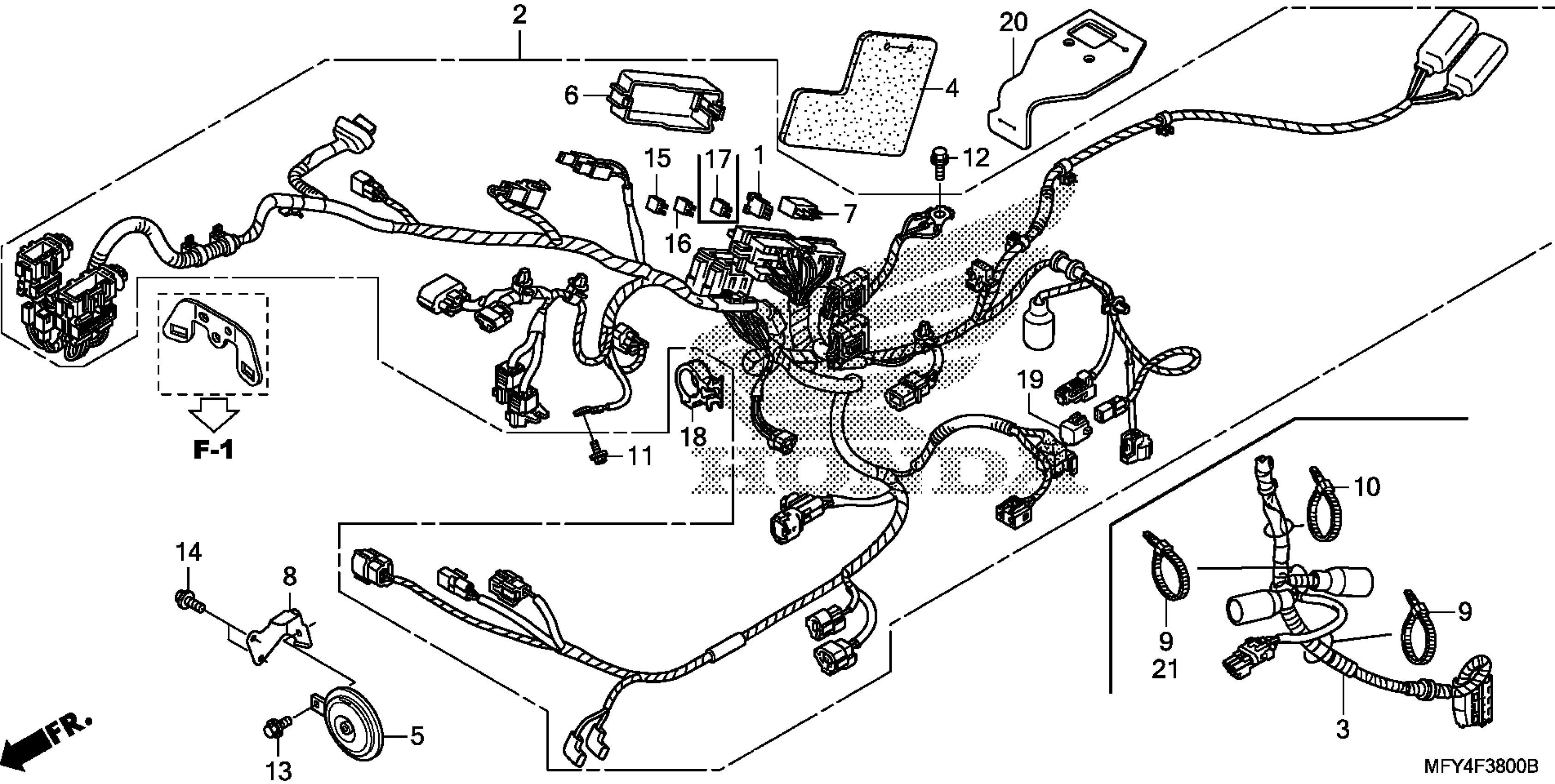

Honda VT1300CTA (11) INTERSTATE, JPN, VIN# JH2SC667-BK100001 WIRE HARNESS@HORN Diagram

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MFY-A00

$1,063.51

GUARD, HARNESS

32150-MFY-A00

$5.98

HORN (HIGH)

38110-MFY-003

$65.59

COVER (UPPER)

38252-MFJ-D01

$11.24

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.80

STAY, HORN

50177-MFY-A00

$21.28

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (8X14)

95701-08014-07

$1.49

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

RUBBER SHEET, HARNESS GUARD

32160-MFY-000

$8.90
