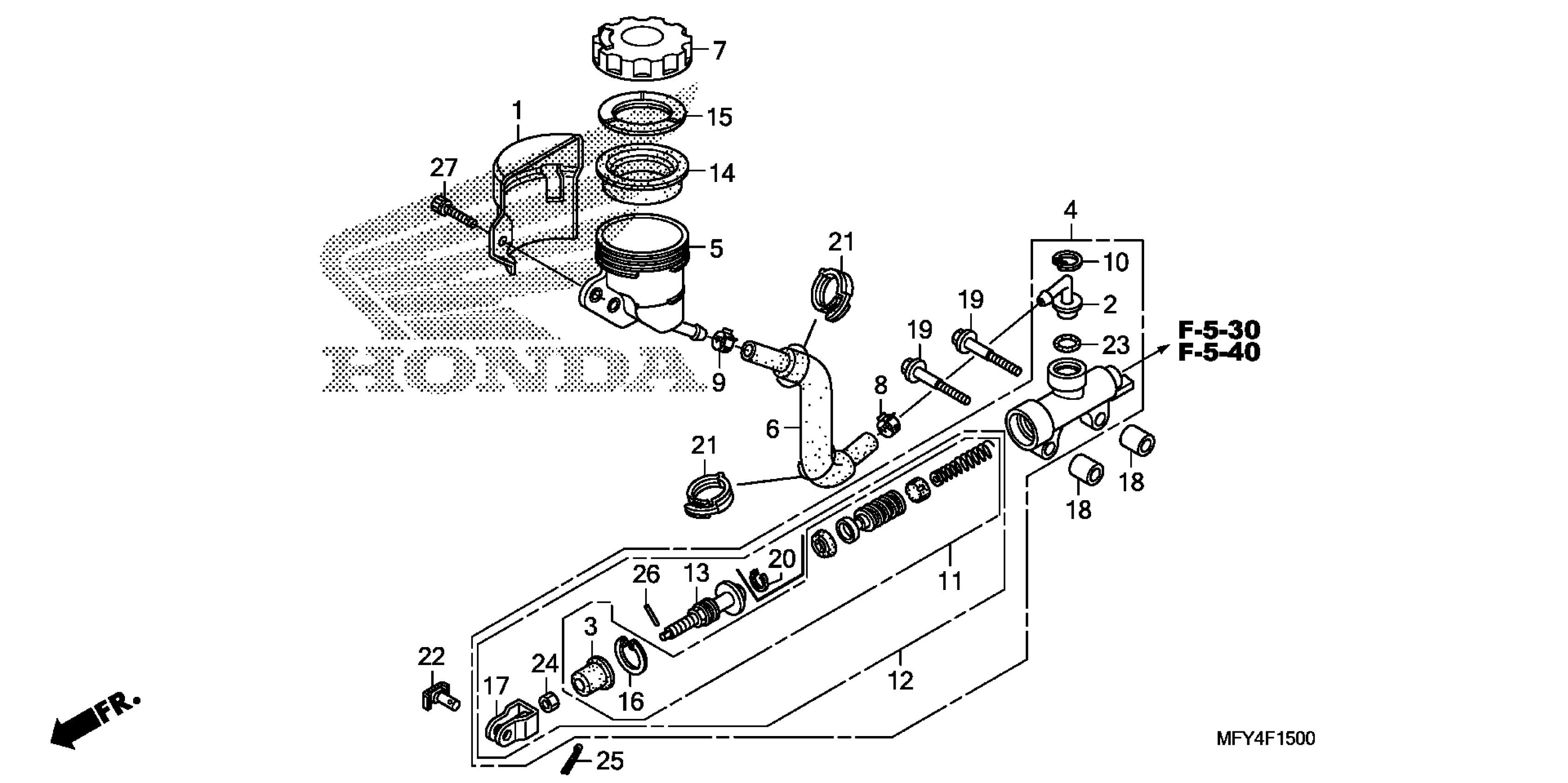

Honda VT1300CTA (11) INTERSTATE, JPN, VIN# JH2SC667-BK100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

COVER, RR. BRAKE OIL CUP

21341-MCH-000

$17.53

2

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$10.26

3

BOOT

43504-MB2-006

$10.04

4

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-MFR-671

$207.95

5

CUP, MASTER CYLINDER OIL

43511-MA6-006

$40.52

6

HOSE, RR. MASTER CYLINDER

43512-MFR-671

$11.11

7

CAP, OIL CUP

43513-MY1-006

$29.39

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

10

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.81

11

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

13

ROD, PUSH

43530-MV9-006

$35.31

14

DIAPHRAGM

45520-300-000

$9.05

15

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

16

CIRCLIP

46182-MEL-D21

$1.93

17

JOINT, BRAKE ROD

46504-MAH-671

$14.30

18

COLLAR, RR. BRAKE BRACKET

50617-MFR-670

$3.74

19

BOLT, FLANGE (6X35)

95801-06035-08

$1.89

21

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

22

PIN, JOINT

90751-MEH-000

$3.26

23

O-RING (14.8X2.4)

91212-422-006

$2.56

24

NUT, HEX. (8MM)

94002-08000-0S

$1.49

25

PIN, COTTER (2.0X15)

94201-20150

$1.49

26

PIN, SPRING (2X10)

94305-20102

$1.49

27

BOLT, SOCKET (6X16)

96600-06016-07

$1.74
