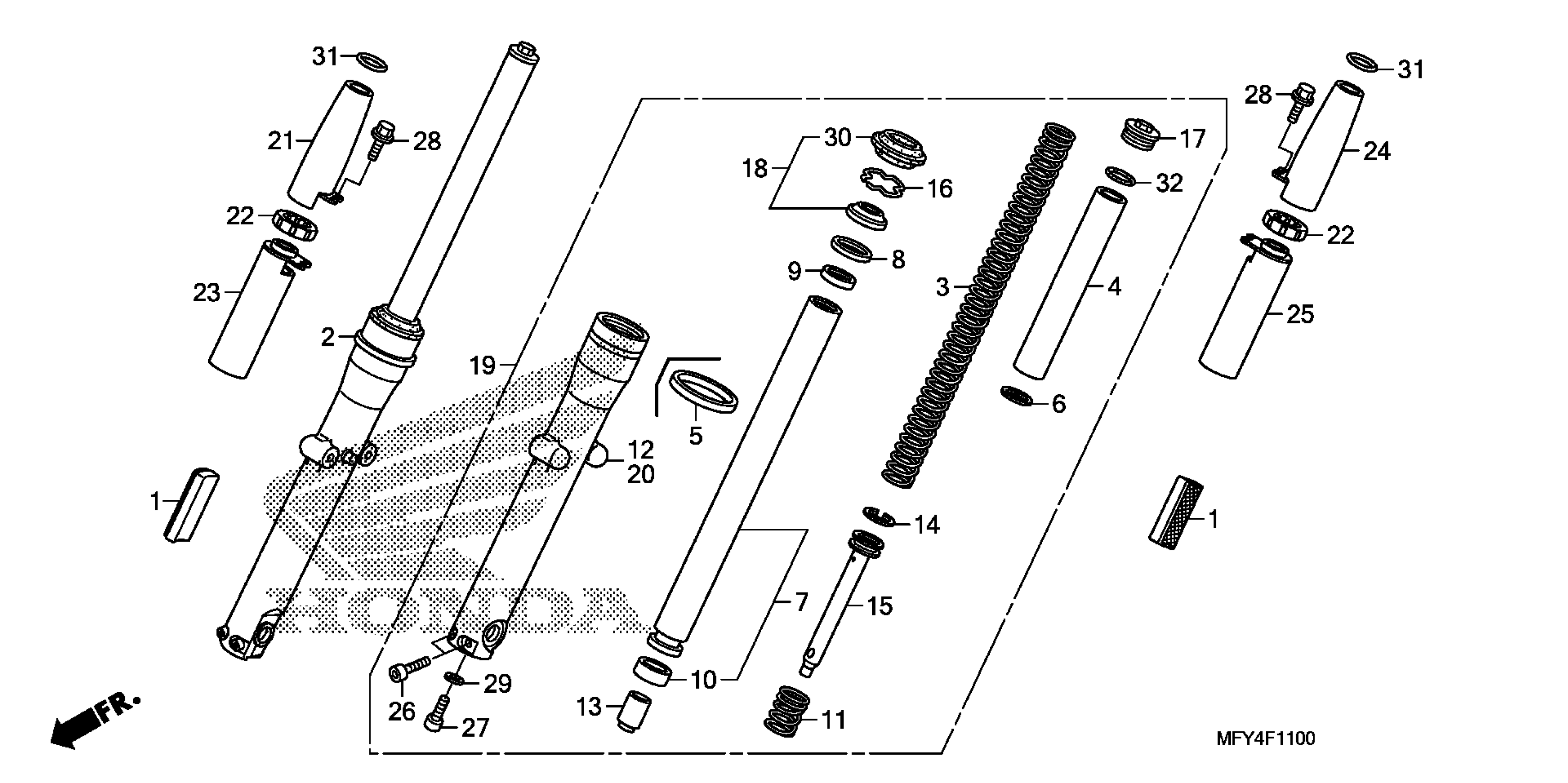

Honda VT1300CTA (11) INTERSTATE, JPN, VIN# JH2SC667-BK100001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-MEA-671

$27.70

2

FORK ASSY., R. FR.

51400-MFY-A21

Unavailable

2

FORK ASSY., R. FR. (COO)

51400-MFY-306

$777.25

3

SPRING, FR. FORK

51401-MFY-A01

Unavailable

4

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$23.53

5

GUIDE, CASE

51402-MEA-671

$6.44

6

PLATE, SPRING JOINT

51404-MB4-003

$4.71

7

PIPE, FR. FORK

51410-MFY-A01

$368.74

8

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

9

BUSH, GUIDE

51414-MFJ-A51

$6.93

10

BUSH, SLIDER

51415-MFJ-A51

$6.93

11

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.62

12

CASE, R. (LOWER)

51420-MFY-A01

$367.56

13

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.78

14

RING, PISTON

51437-MB4-003

$8.82

15

PIPE, SEAT

51440-MFY-A01

$40.24

16

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

17

BOLT, FR. FORK

51454-MM9-671

$35.21

18

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$20.90

18

SEAL SET, FR. FORK

51490-MKA-D81

$20.90

19

FORK ASSY., L. FR. (COO)

51500-MFY-306

$777.25

20

CASE, L. (LOWER)

51520-MFY-A01

$367.56

21

COVER, R. FR. FORK TOP

51610-MFY-A00

$103.34

22

MOUNT, FR. FORK COVER

51611-MBA-000

$9.01

23

COVER, R. FR. FORK (LOWER)

51620-MFY-A00

Unavailable

24

COVER, L. FR. FORK TOP

51660-MFY-A00

Unavailable

25

COVER, L. FR. FORK (LOWER)

51670-MFY-A00

$101.68

26

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.62

27

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

28

BOLT, FLANGE (6X12)

90123-MBA-000

$2.93

29

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

30

DUST SEAL (SHOWA)

91251-MKA-D81

$7.88

30

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$7.88

31

O-RING (39.5X5)

91305-MC7-000

$3.16

32

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.59
