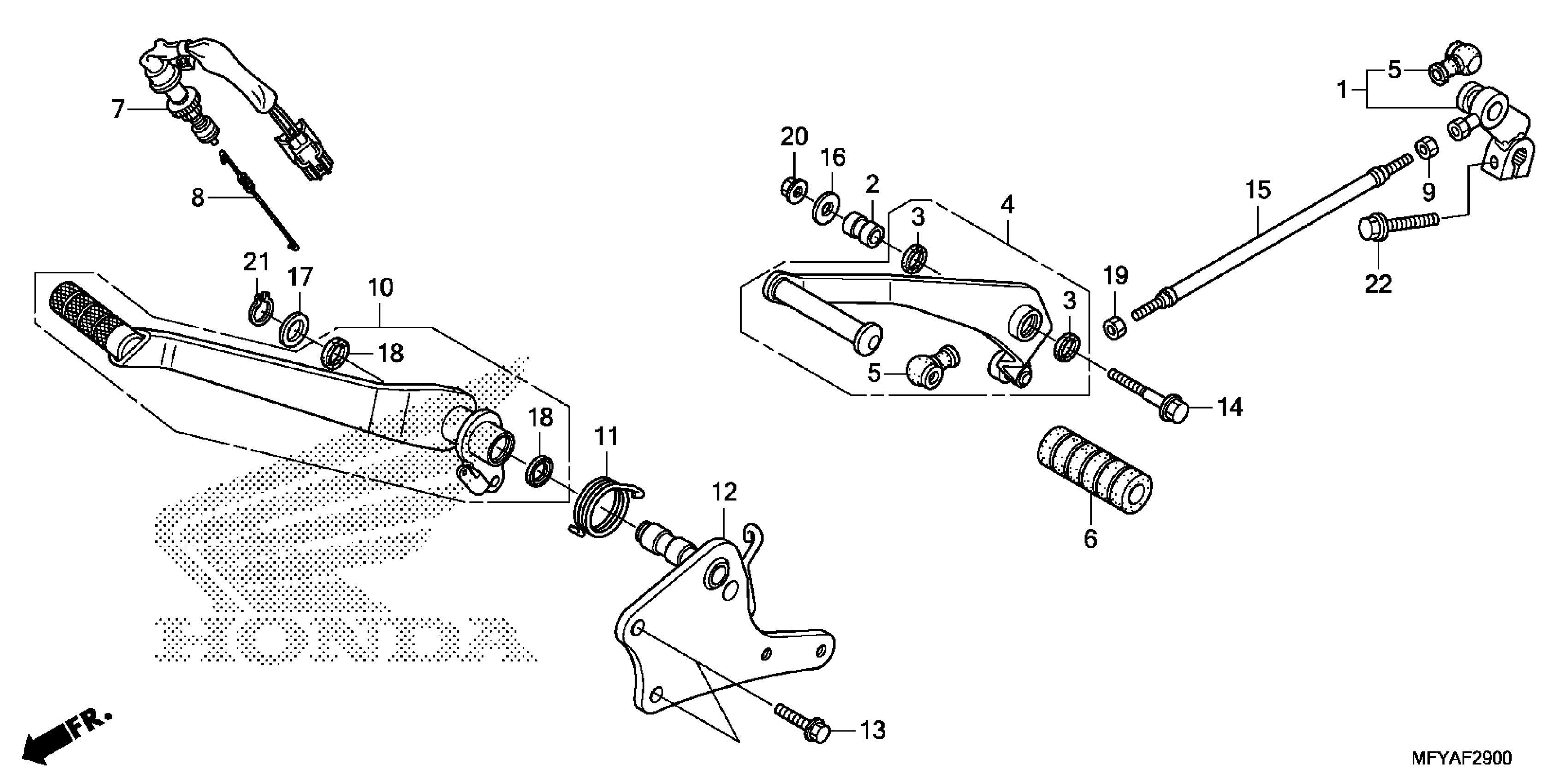

Honda VT1300CSAC (12) VT1300, JPN, VIN# JH2SC671-CK200001 PEDAL (1) Diagram

ARM, GEARSHIFT

24702-MFR-670

$46.50

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$12.16

RUBBER, DUST SEAL

24706-MK3-770

$4.48

PEDAL, GEARSHIFT This part replaces 24710-MFY-305.

24710-MFY-A00

$95.84

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, GEARSHIFT PEDAL

24781-MCH-000

$5.76

SWITCH ASSY., RR. STOP This part replaces 35350-MFR-671.

35350-MFR-672

$35.49

SWITCH ASSY., RR. STOP

35350-MFR-672

$35.49

SPRING, STOP SWITCH

35357-MFR-670

$4.15

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.55

PEDAL ASSY., RR. BRAKE (COO) This part replaces 46500-MFY-A00.

46500-MFY-305

$141.05

PEDAL ASSY., RR. BRAKE (COO)

46500-MFY-305

$141.05

SPRING, BRAKE PEDAL

46514-MFR-670

$8.41

BRACKET, RR. BRAKE

50618-MFY-A00

$51.70

BOLT, FLANGE (8X19)

90102-MW4-000

$4.80

BOLT, SPECIAL FLANGE (8X40)

90122-MM2-000

$4.28

BOLT, TIE ROD

90165-MFY-A00

$13.69

WASHER (8MM) (Honda Code 0285189)

90514-921-000

$1.49

WASHER (15.2X25)

90557-230-000

$2.39

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

NUT, HEX. (6MM)

94002-06020-0S

$1.49

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
