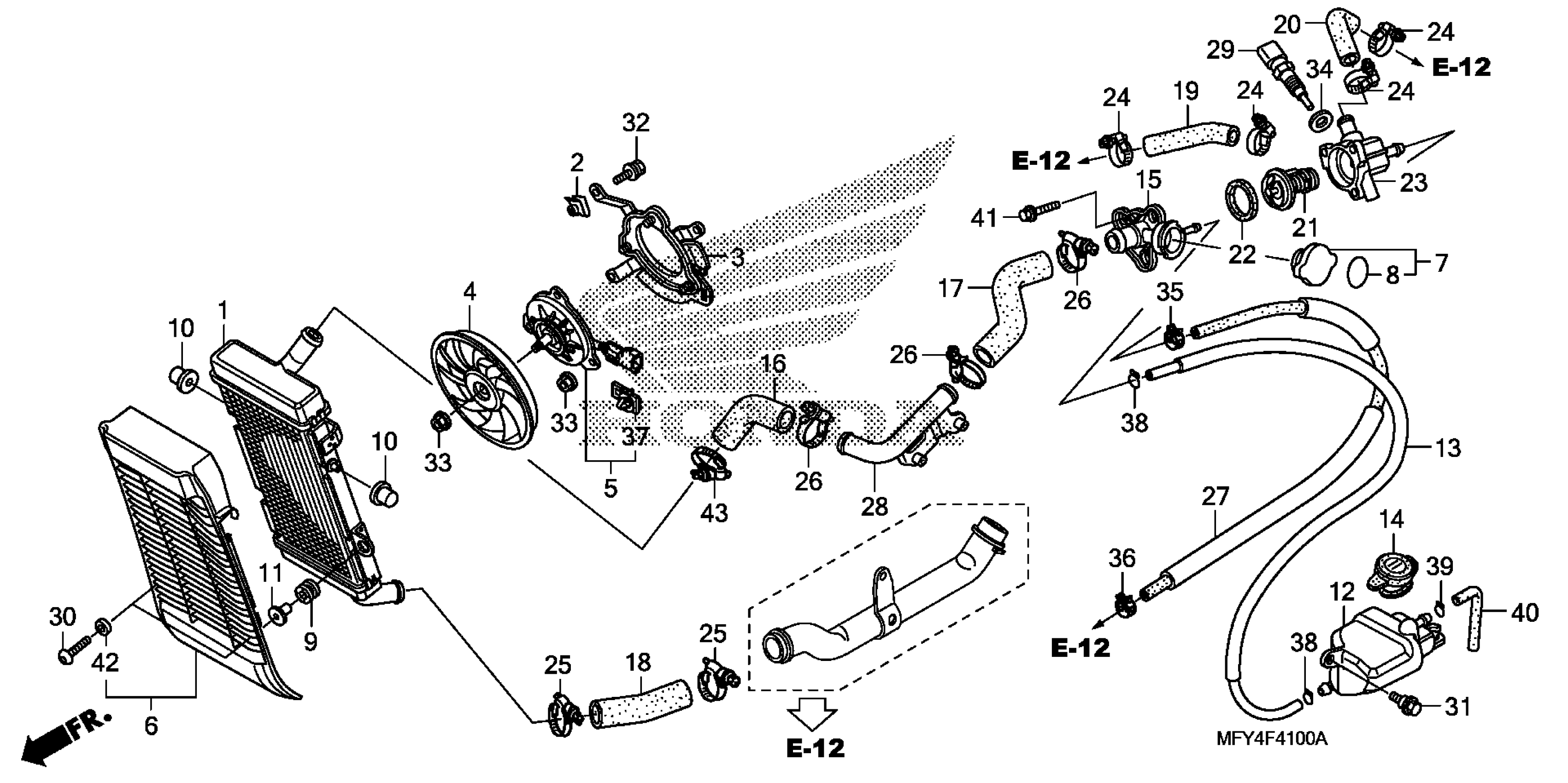

Honda VT1300CSAC (11) SABRE, JPN, VIN# JH2SC671-BK100001 RADIATOR Diagram

#

Description
Price

1

RADIATOR

19010-MFY-A01

$716.77

1

RADIATOR This part replaces 19010-MFY-305.

19010-MFY-A01

$716.77

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

SHROUD (COO)

19015-MFY-305

$81.92

4

FAN, COOLING

19020-MCH-A11

$18.02

5

MOTOR ASSY., FAN

19030-MFR-671

$283.74

6

GRILLE, RADIATOR

19032-MFY-A00

$69.97

7

CAP, RADIATOR

19037-GEE-710

$30.28

8

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

10

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.53

11

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

11

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

12

TANK, RADIATOR RESERVE (COO) This part replaces 19101-MFR-670.

19101-MFY-305

$41.15

13

TUBE, RADIATOR RESERVE TANK

19102-MFR-670

$18.80

14

CAP, RESERVE TANK

19104-MB0-700

$12.16

15

NECK ASSY., FILLER

19106-MFR-671

$72.15

16

HOSE A, RADIATOR (UPPER)

19115-MFY-A00

$17.31

17

HOSE B, RADIATOR (UPPER)

19116-MFR-670

$22.21

18

HOSE, RADIATOR (LOWER)

19117-MFY-A00

$11.97

19

HOSE, FR. OUTLET WATER

19118-MFR-670

$8.41

20

HOSE, RR. OUTLET WATER

19119-MFR-670

$8.41

21

THERMOSTAT ASSY.

19300-MCH-A00

$47.76

22

RUBBER, THERMOSTAT

19305-KV3-010

$6.07

23

CASE, THERMOSTAT

19311-MFR-670

$90.07

24

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

25

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.58

26

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

27

HOSE, BYPASS

19531-MFR-670

$39.85

28

PIPE D, WATER

19570-MFR-670

$30.93

29

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$30.74

30

SCREW, PAN (6X28) (G)

90105-MFY-A00

$3.57

31

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

32

BOLT-WASHER (6X14)

90120-GHB-611

$2.67

33

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

34

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

35

CLAMP, TUBE (17.5)

90652-MBB-D41

$2.02

36

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$9.24

37

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

38

CLIP, TUBE (B12)

95002-02120

$2.00

39

CLIP, TUBE (C11)

95002-70000

$1.56

40

BULK HOSE, VACUUM (7X3000) (7X730)

95005-70003-30M

$23.45

41

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

42

COLLAR, STEP RUBBER SETTING

50605-GZ4-670

$3.65

43

CLAMP, HOSE

19516-MER-D10

$7.66
