Description

Price

1

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

2

CLAMP, HARNESS

32111-MFR-670

$4.43

3

HEADLIGHT ASSY. (12V 60/55W) (STANLEY) This part replaces 33100-MFR-305.

33100-MFR-671

$292.82

3

HEADLIGHT ASSY. (12V 60/55W) (STANLEY)

33100-MFR-671

$292.82

4

SHEET, HEADLIGHT RUBBER

33101-MFR-670

$22.98

5

SCREW, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33103-MM2-003

$2.74

6

SPRING, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33108-MM2-003

$3.26

7

NUT, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33118-438-841

$2.23

8

COVER, SCREW

33136-426-830

$1.89

9

COVER, RUBBER

33180-MR7-003

$14.24

10

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$37.18

11

COLLAR, CHAIN GUARD

52157-GC5-000

$4.48

12

CASE ASSY., HEADLIGHT

61301-MFR-670

$182.70

13

RIM, HEADLIGHT

61302-MFR-670

$40.43

14

RUBBER, HEADLIGHT

61303-MFR-670

$2.18

15

STAY, HEADLIGHT

61311-MFY-A00

$61.48

16

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.97

17

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

18

BOLT, SPECIAL FLANGE (8X23)

90123-KR3-000

$3.67

19

BOLT, CAP (6MM)

90132-MFR-670

$5.05

20

NUT, CAP (6MM)

90201-425-700

$4.24

21

NUT, FLANGE CAP (8MM)

90208-438-000

$2.98

22

COLLAR A

90501-MCF-000

$4.89

23

CLIP

91411-679-000

$16.20

24

SCREW, PAN (5X10)

93500-05010-0A

$1.49

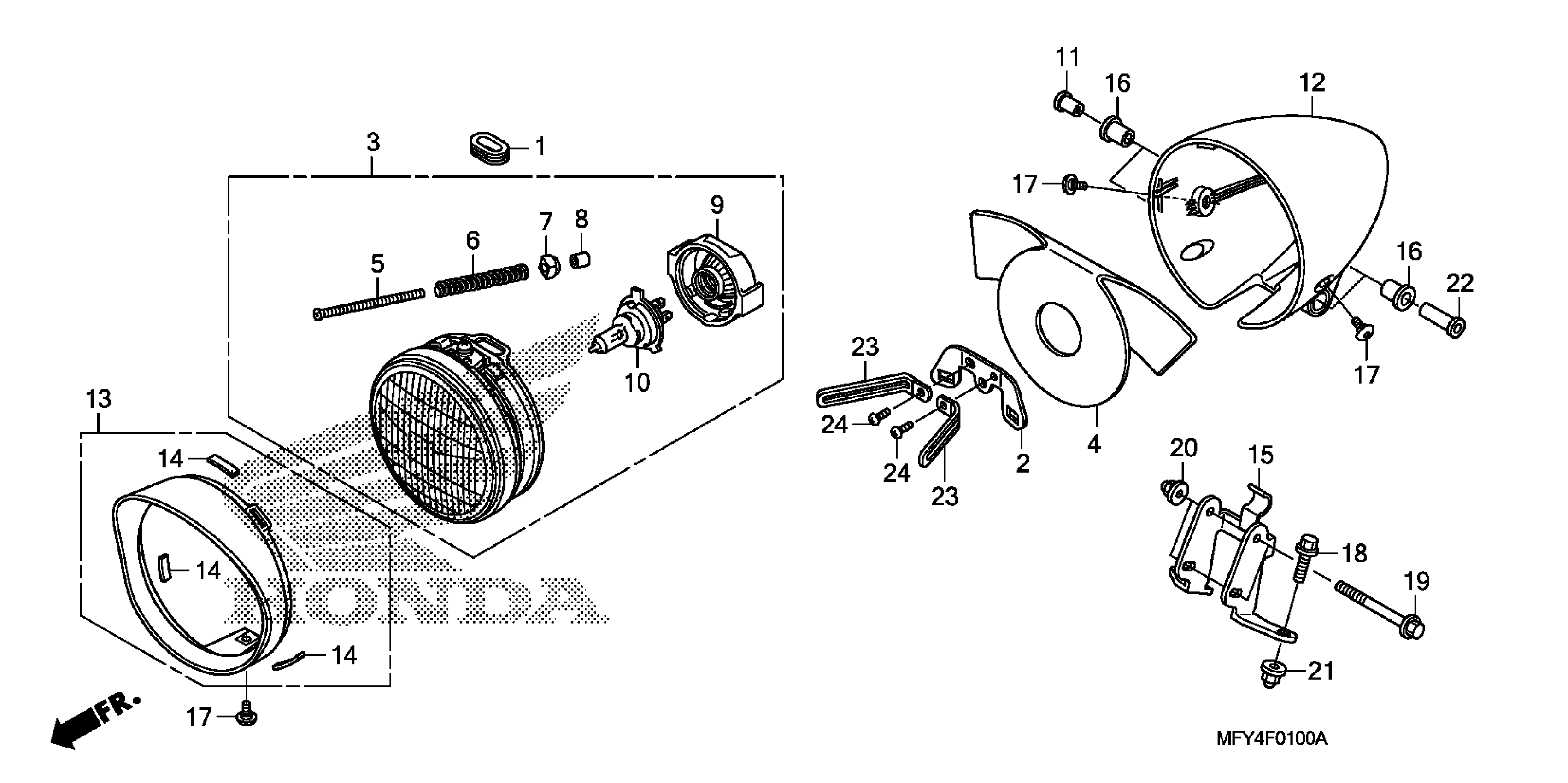

Honda VT1300CSAC (11) SABRE, JPN, VIN# JH2SC671-BK100001 HEADLIGHT Diagram
