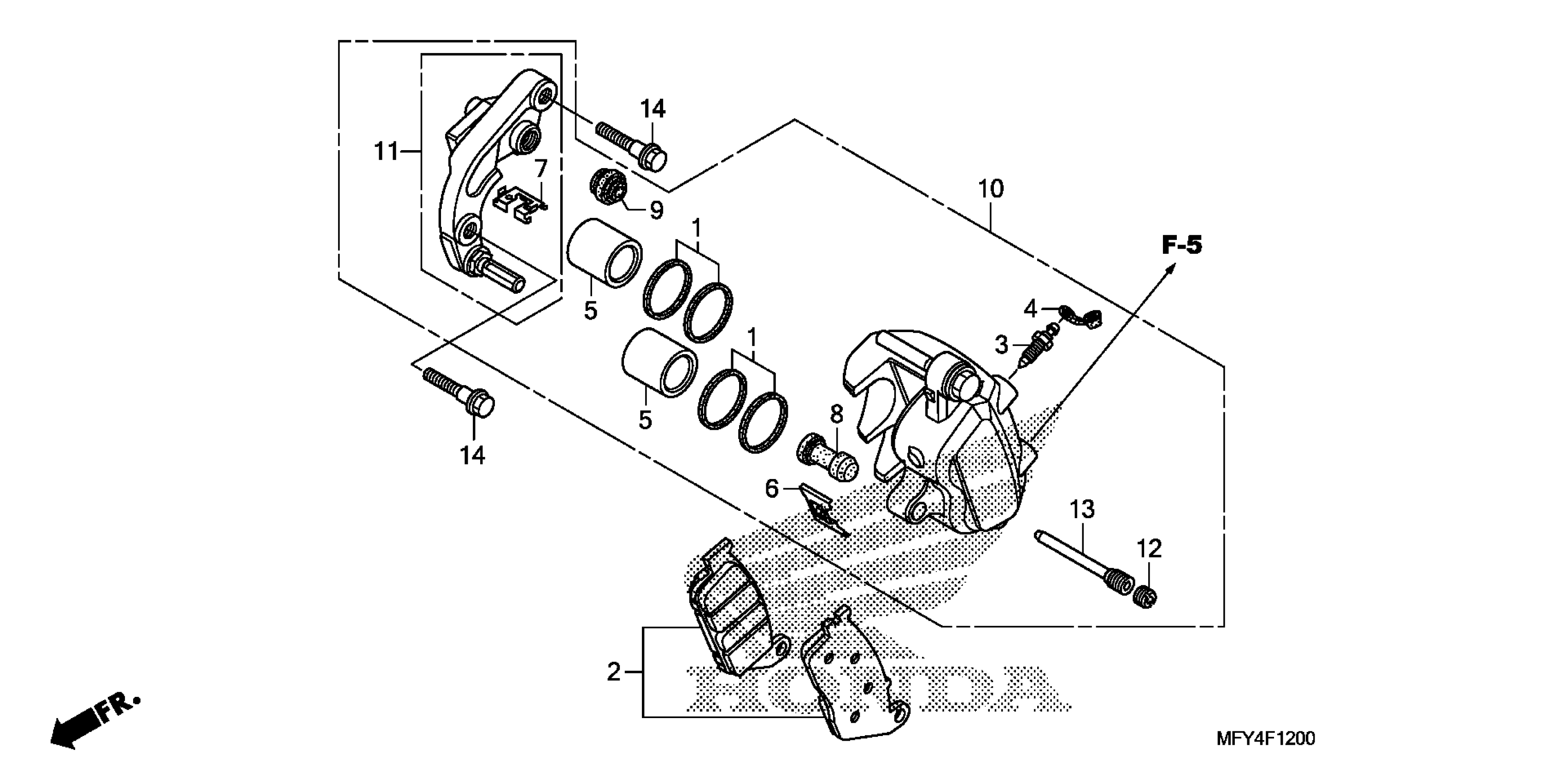

Honda VT1300CSAC (11) SABRE, JPN, VIN# JH2SC671-BK100001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

PAD SET, FR. This part replaces 06455-MFR-671.

06455-MFR-672

$64.29

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (NISSIN)

45107-ML4-006

$37.87

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

RETAINER

45112-MAA-006

$5.90

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MFR-671

$348.97

BRACKET SUB-ASSY., L. FR.

45190-MFR-671

$74.28

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

BOLT, FLANGE (8X35)

90131-MFR-670

$3.85
