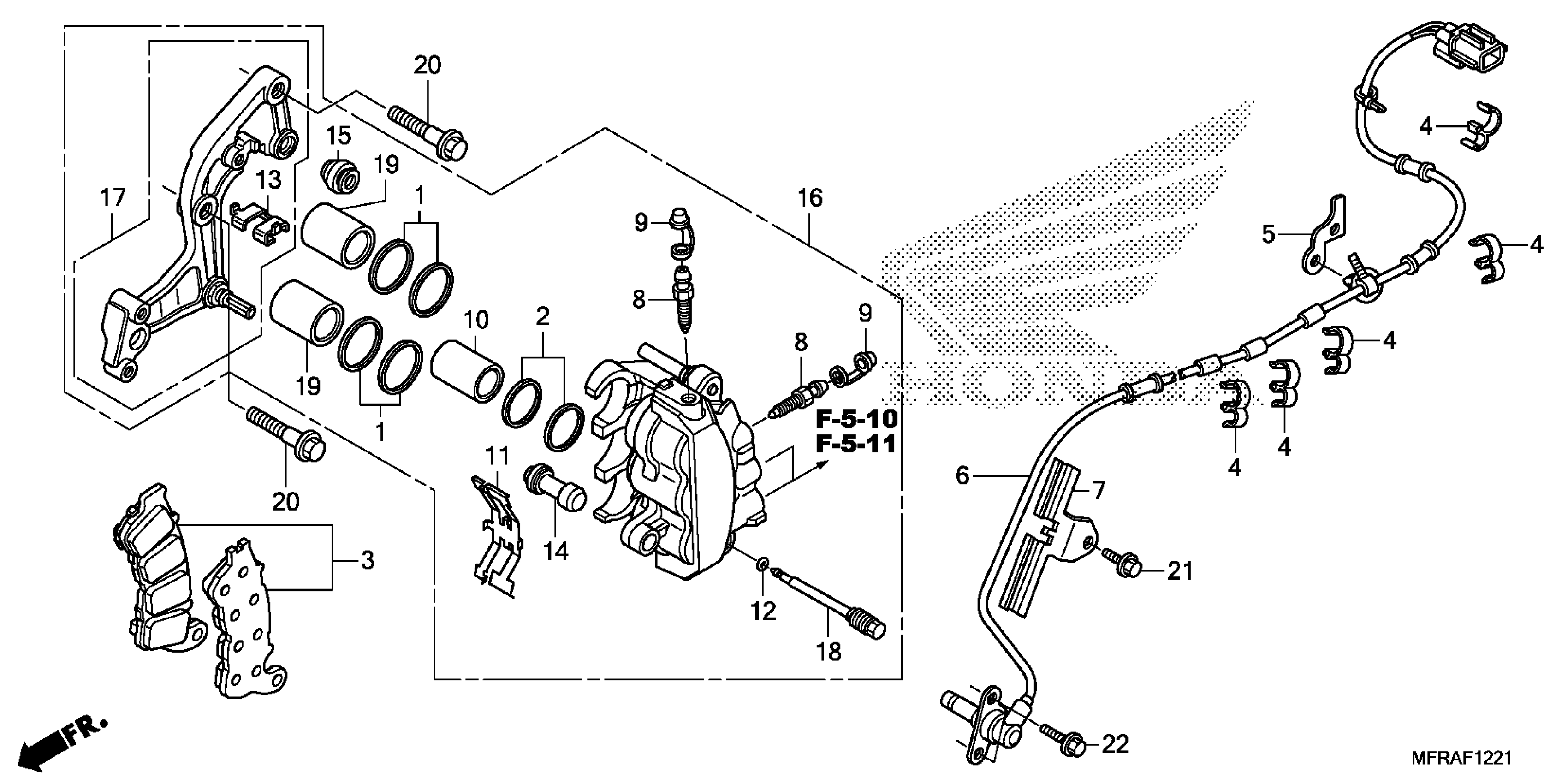

Honda VT1300CSAAC (13) MOTORCYCLE, JPN, VIN# JH2SC67F-DK100001 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

PAD SET, FR. This part replaces 06455-MFR-A01.

06455-MFR-A02

$62.74

CLAMP, PIPE

11152-KS4-003

$6.80

STAY, SPEED SENSOR

38515-MFY-A10

$5.12

SENSOR, FR. WHEEL SPEED

38520-MFW-A11

$176.06

GUIDE, SPEED SENSOR WIRE

38521-MFR-A00

$10.43

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27)

45107-MAJ-G41

$36.21

SPRING, PAD

45108-MET-652

$5.35

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MET-651

$4.13

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MFR-A21

$508.09

BRACKET SUB-ASSY., L. FR.

45190-MFR-A21

$135.72

PIN, HANGER

45215-MBT-D51

$6.38

PISTON B (27X35)

45218-MAJ-G41

$36.21

BOLT, FLANGE (8X35)

90131-MFR-670

$2.66

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

BOLT, FLANGE (6X16)

96001-06016-00

$0.97
