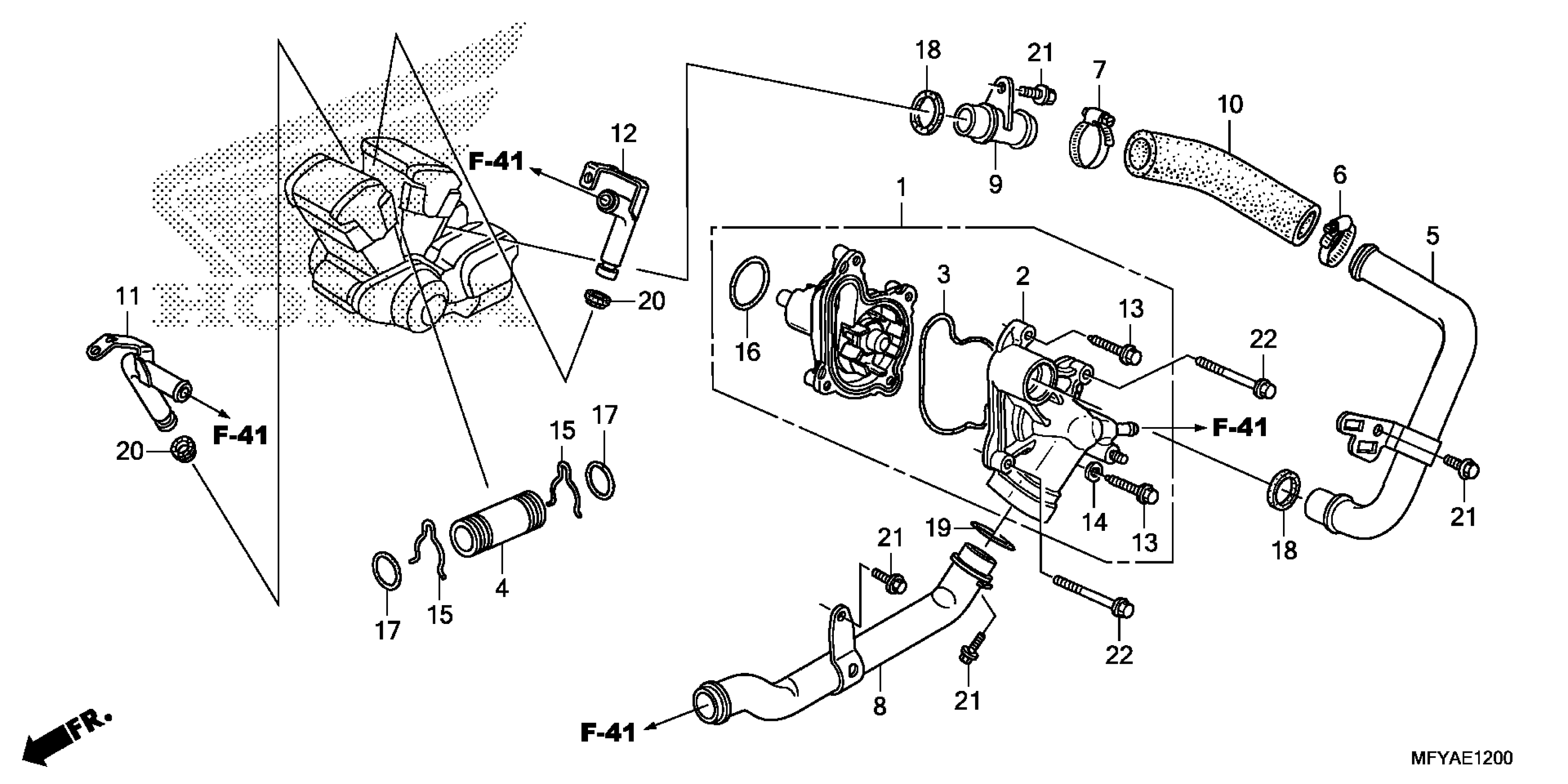

Honda VT1300CSAAC (12) VT1300, JPN, VIN# JH2SC67F-CK000001 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY.

19200-MEA-670

$258.11

2

COVER, WATER PUMP

19220-MEA-670

$113.64

3

GASKET, WATER PUMP COVER

19226-MEA-670

$8.87

4

JOINT, WATER (FR/RR)

19505-MFR-670

$32.61

5

PIPE A, WATER

19510-MFR-670

$31.87

6

CLAMP, WATER HOSE

19516-MB6-000

$14.41

7

CLAMP, HOSE

19516-MER-D10

$7.66

8

PIPE B, WATER

19520-MFR-670

$50.87

9

PIPE C, WATER

19524-MCH-000

$20.30

10

HOSE, IN. WATER

19526-MEA-670

$10.70

11

PIPE, FR. OUTLET WATER

19530-MFR-670

$24.82

12

PIPE, RR. OUTLET WATER

19540-MFR-670

$24.82

13

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

14

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

15

CLIP, RING (24MM)

90601-MCH-000

$2.66

16

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

17

O-RING (23.5X2.2)

91311-MCH-003

$2.92

18

SEAL, WATER PIPE

91315-MB0-013

$2.70

19

O-RING (27X3.1) (FRAME NO.)

91315-MCH-003

$4.35

20

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.53

21

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

22

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06
