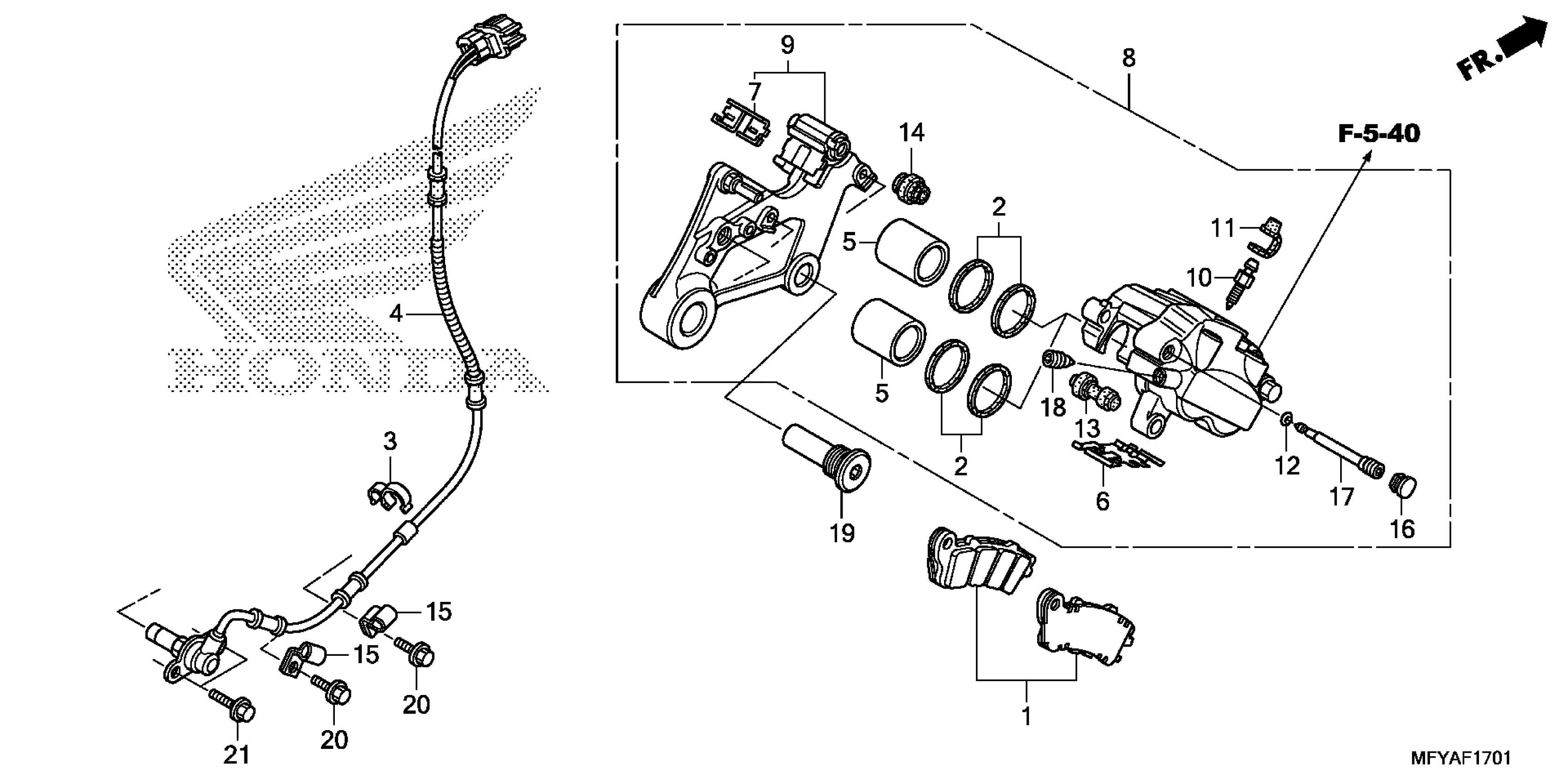

Honda VT1300CSAAC (12) VT1300, JPN, VIN# JH2SC67F-CK000001 REAR BRAKE CALIPER (ABS) Diagram

PAD SET, RR. This part replaces 06435-MFR-A01.

06435-MFR-A02

$64.84

SEAL SET, PISTON

06451-MA7-405

$9.77

CLAMP, PIPE

11152-KS4-003

$6.80

SENSOR, RR. WHEEL SPEED

38510-MFY-A11

$178.28

PISTON (32MM) (LEFT SIDE)

43107-MA7-006

$41.82

SPRING, PAD

43108-MAJ-G41

$8.73

RETAINER, RR. BRACKET

43112-MCV-006

$8.18

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MFR-A01

$355.09

BRACKET SUB-ASSY., RR.

43190-MFR-A01

$94.12

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CLAMP A, SENSOR CORD

45157-MEJ-J00

$3.26

PLUG, PIN

45203-MCC-006

$2.66

PIN, HANGER

45215-MAJ-G41

$6.15

SCREW, SOCKET

46175-671-651

$8.31

BOLT, BRAKE STOPPER

90158-MFR-670

$14.09

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79

BOLT, FLANGE (6X16)

96001-06016-00

$0.97
