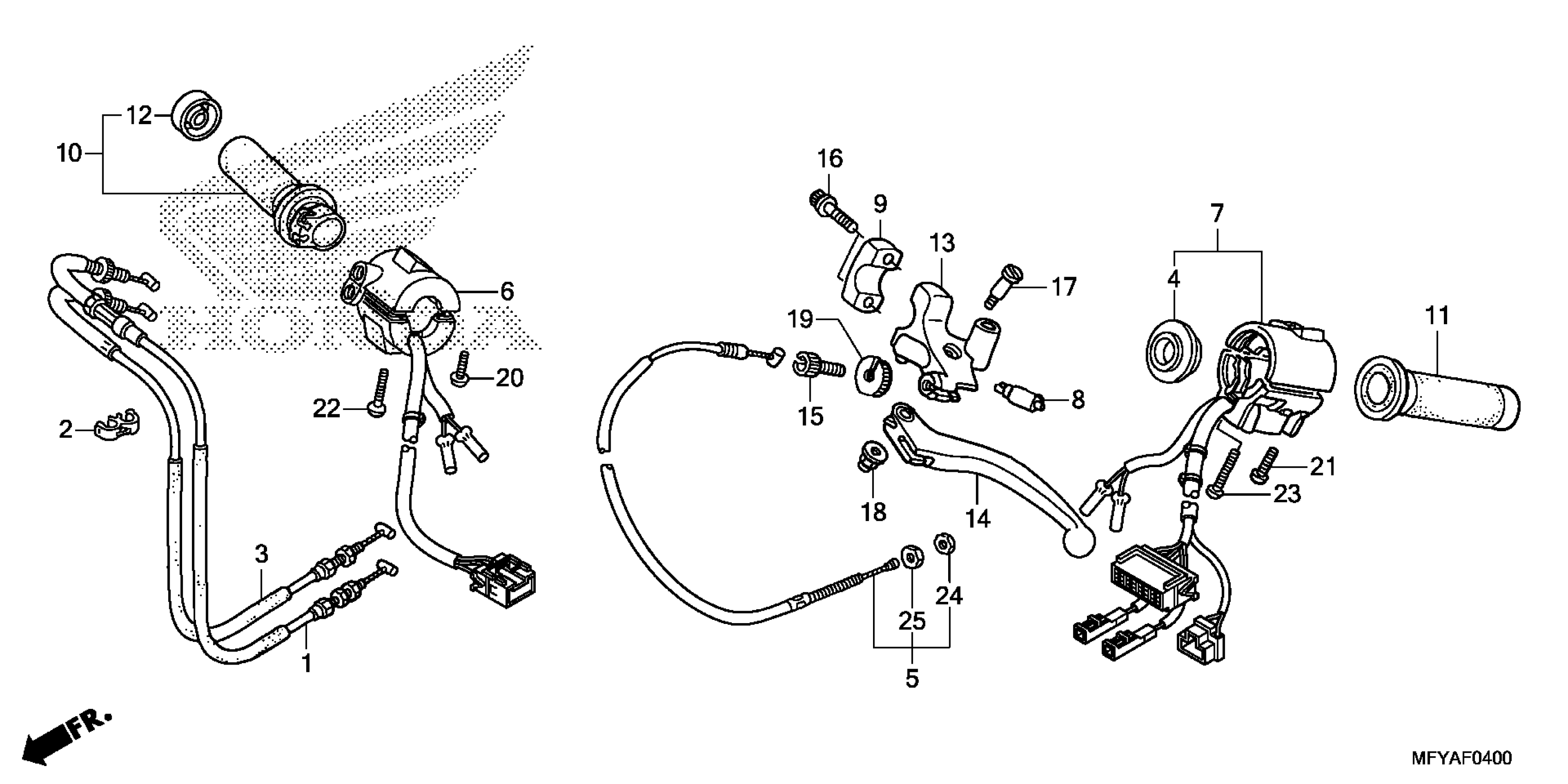

Honda VT1300CSAAC (12) VT1300, JPN, VIN# JH2SC67F-CK000001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MFW-A00

$33.31

CLIP, THROTTLE WIRE

17915-SA7-981

$3.01

CABLE B, THROTTLE

17920-MFW-A00

$33.31

ADAPTER

17962-MR1-000

$19.30

CABLE, CLUTCH

22870-MFW-A00

$30.56

SWITCH ASSY., STARTER & STOP

35130-MFW-A01

$133.18

SWITCH ASSY., TURN SIGNAL

35200-MFW-A01

$148.93

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

GRIP, R. This part replaces 53145-MFR-305.

53145-MM8-000

$43.84

GRIP ASSY., R.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-KCR-000

$36.92

GRIP, L. HANDLE This part replaces 53166-MFR-305.

53166-KCR-000

$36.92

CAP, GRIP END

53167-MM8-000

$9.37

BRACKET, HANDLE LEVER

53172-MR1-000

$35.68

LEVER, L. HANDLE

53178-MAH-000

$19.50

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, FIXING

90321-MA6-750

$10.45

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X22)

93500-05022-0A

$1.49

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, HEX. (8MM) NUT, FLANGE (10MM)

94031-08000

$1.49
