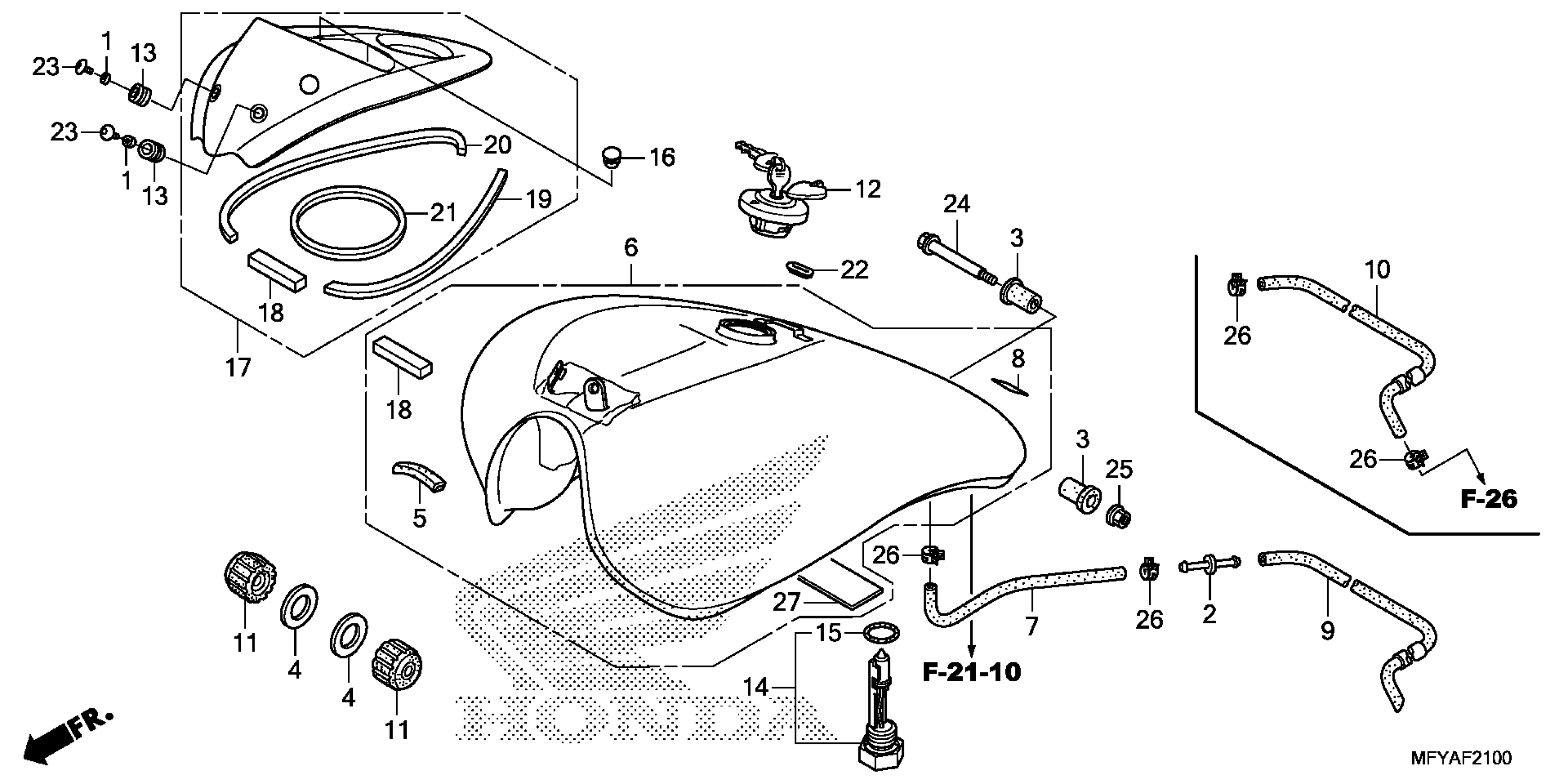

Honda VT1300CSAAC (12) VT1300, JPN, VIN# JH2SC67F-CK000001 FUEL TANK Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER WASHER, CHAIN CASE SETTING

11346-371-300

$9.70

2

JOINT, FUEL TUBE

16958-GJ6-000

$4.40

3

CUSHION, FUEL TANK PIVOT

17506-MBR-000

$5.20

4

SPACER, FUEL TANK

17514-MFY-A00

$2.38

5

TRIM, FUEL TANK

17516-HC4-000

$3.97

6

TANK SET, FUEL *B197M* (GLINT WAVE BLUE METALLIC)

17520-MFY-A00ZG

Unavailable

7

TUBE, FUEL TANK BREATHER

17526-MFY-A00

$15.82

8

TAPE, FUEL TANK (25X25)

17528-MFY-A00

$2.82

10

TUBE, CANISTER JOINT

17529-MFR-770

$12.71

11

CUSHION, FR. FUEL TANK

17611-MFY-A00

$8.21

12

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$65.11

12

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$65.11

12

CAP, FUEL FILLER

17620-KR3-753

$65.11

13

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.68

14

SENSOR ASSY., FUEL RESERVE

37810-MER-D01

$47.94

15

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.80

16

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.79

17

COVER ASSY., METER

83500-MFY-A00

$107.87

18

MAT, METER COVER

83511-MFE-670

$1.66

19

CUSHION D, TOP COVER

83513-MFY-A00

$3.68

20

CUSHION E, TOP COVER

83514-MFY-A00

$4.04

21

CUSHION B, TOP COVER

83516-MFY-A00

$2.13

22

GROMMET, SIDE COVER

83551-ME9-000

$3.10

23

BOLT, SPECIAL (6X14)

90118-MCL-000

$2.15

24

BOLT, TANK HINGE

90135-MFR-670

$3.51

25

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

26

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.34

27

TAPE, TANK GUARD

17506-GCS-300

$3.06
