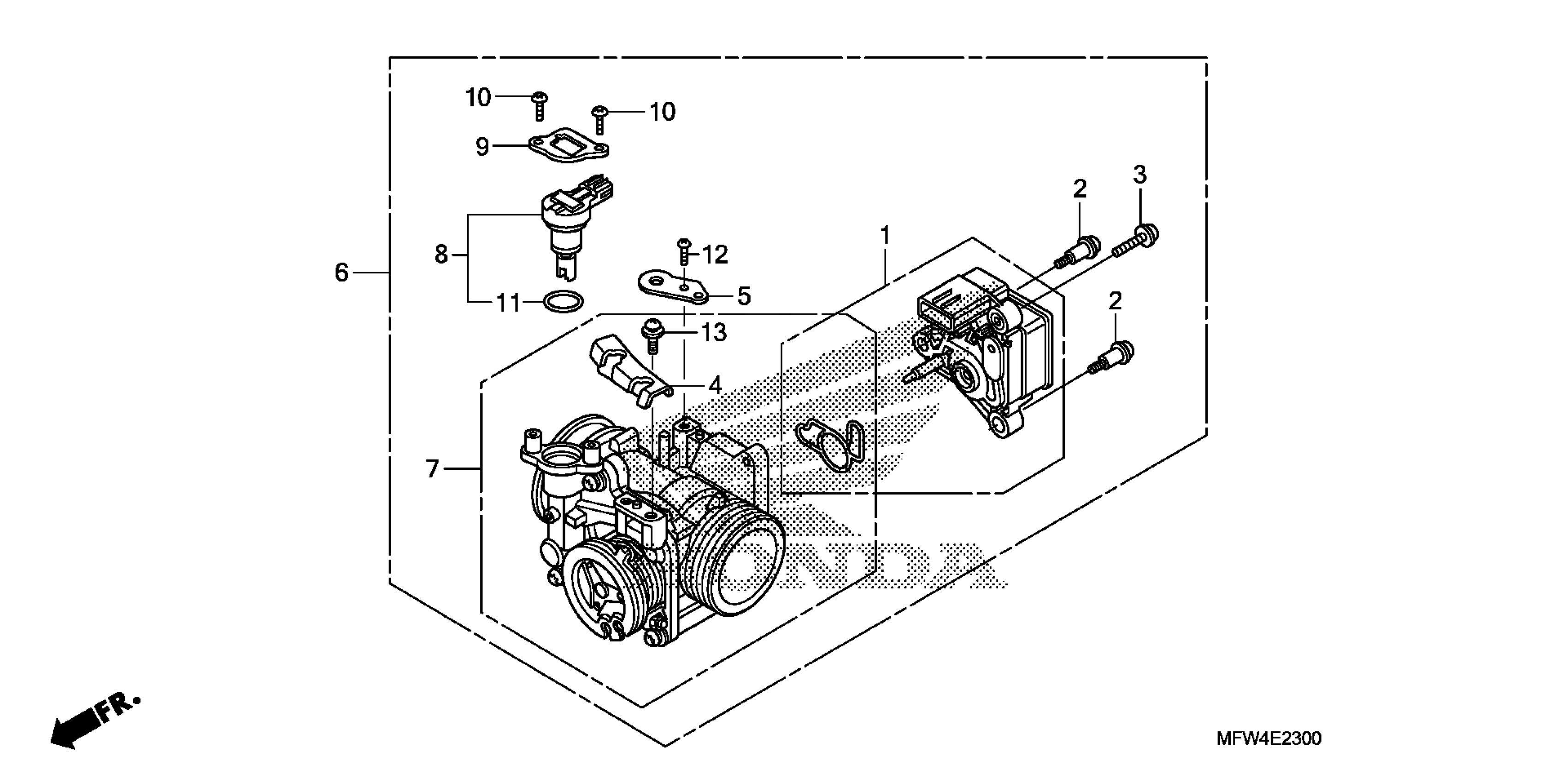

Honda VT1300CSAA (10) SABRE ABS, JPN, VIN# JH2SC674-AK000001 THROTTLE BODY Diagram

SENSOR SET

16060-MFR-671

$163.32

SCREW, TORX (5X8.7)

16081-KPH-701

$2.81

SCREW, TORX (5X17)

16082-KPH-701

$4.80

STAY, WIRE

16169-MFR-671

$15.58

STAY, HARNESS CLAMP

16196-MFR-671

$4.68

BODY ASSY., THROTTLE (GQ9HA A)

16400-MFR-671

$429.52

BODY SET

16410-MFR-671

$237.96

VALVE SET, IDLE AIR CONTROL

16430-MFE-641

$110.58

PLATE, IDLE AIR CONTROL VALVE

16432-MFE-641

$6.62

SCREW, TORX

16433-HN8-A61

$0.33

O-RING (17.8X1.9)

16435-HN8-A61

$7.95

SCREW, PAN (5X10)

93500-05010-0H

$0.83

SCREW, PAN (5X10) This part replaces 93500-05010-08.

93500-05010-0H

$0.83

SCREW, PAN (5X10) This part replaces 93500-05010-1H.

93500-05010-0H

$0.83

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.04
