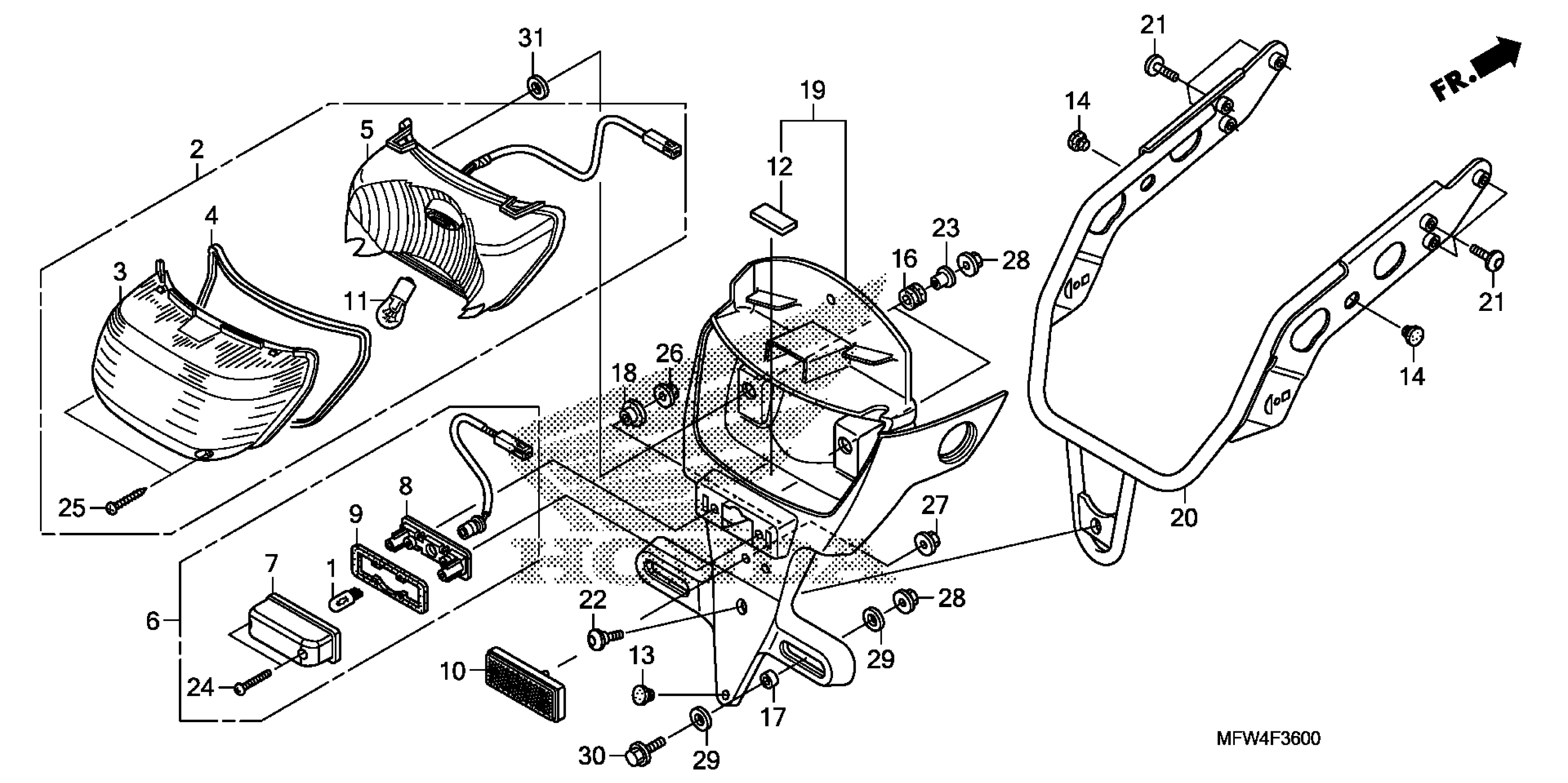

Honda VT1300CSAA (10) SABRE ABS, JPN, VIN# JH2SC674-AK000001 TAILLIGHT@LICENSE LIGHT Diagram

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

TAILLIGHT ASSY. (12V 21/5W) (IMASEN)

33701-MFW-003

$103.85

LENS, TAILLIGHT

33702-MFE-671

$25.38

GASKET, TAILLIGHT

33703-MFE-671

$4.65

BASE, TAILLIGHT

33707-MFW-003

$40.64

LIGHT ASSY., LICENSE (12V 5W)

33720-MFW-003

$90.92

COVER, LICENSE

33721-GET-671

$19.11

BASE, LICENSE

33723-MCZ-671

$20.54

GASKET, LENS

33729-MCZ-003

$9.48

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)

34906-447-711

$9.38

RUBBER, BATTERY

50283-KSC-300

$1.49

RUBBER, LINK STOPPER

50352-GS6-000

$4.53

RUBBER, SEAT SIDE (RIGHT SIDE)

77212-965-000

$4.94

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

COLLAR, TAILLIGHT

80104-065-000

$2.83

COLLAR, RR. FENDER

80114-KG7-000

$4.28

FENDER ASSY. A, RR.

80115-MFW-A00

$28.52

STAY, RR. FENDER

80132-MFW-A00

$275.95

SCREW, PAN (6X14)

90118-MR1-000

$3.10

SCREW, PAN (6X13)

90124-MY6-670

$2.61

COLLAR, RR. FENDER

90502-GG2-000

$5.75

SCREW, TAPPING (4X16)

93901-24480

$1.49

SCREW, TAPPING (4X30)

93901-347G0

$2.21

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (5MM)

94050-05070

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

WASHER (6MM)

90473-896-000

$1.83
