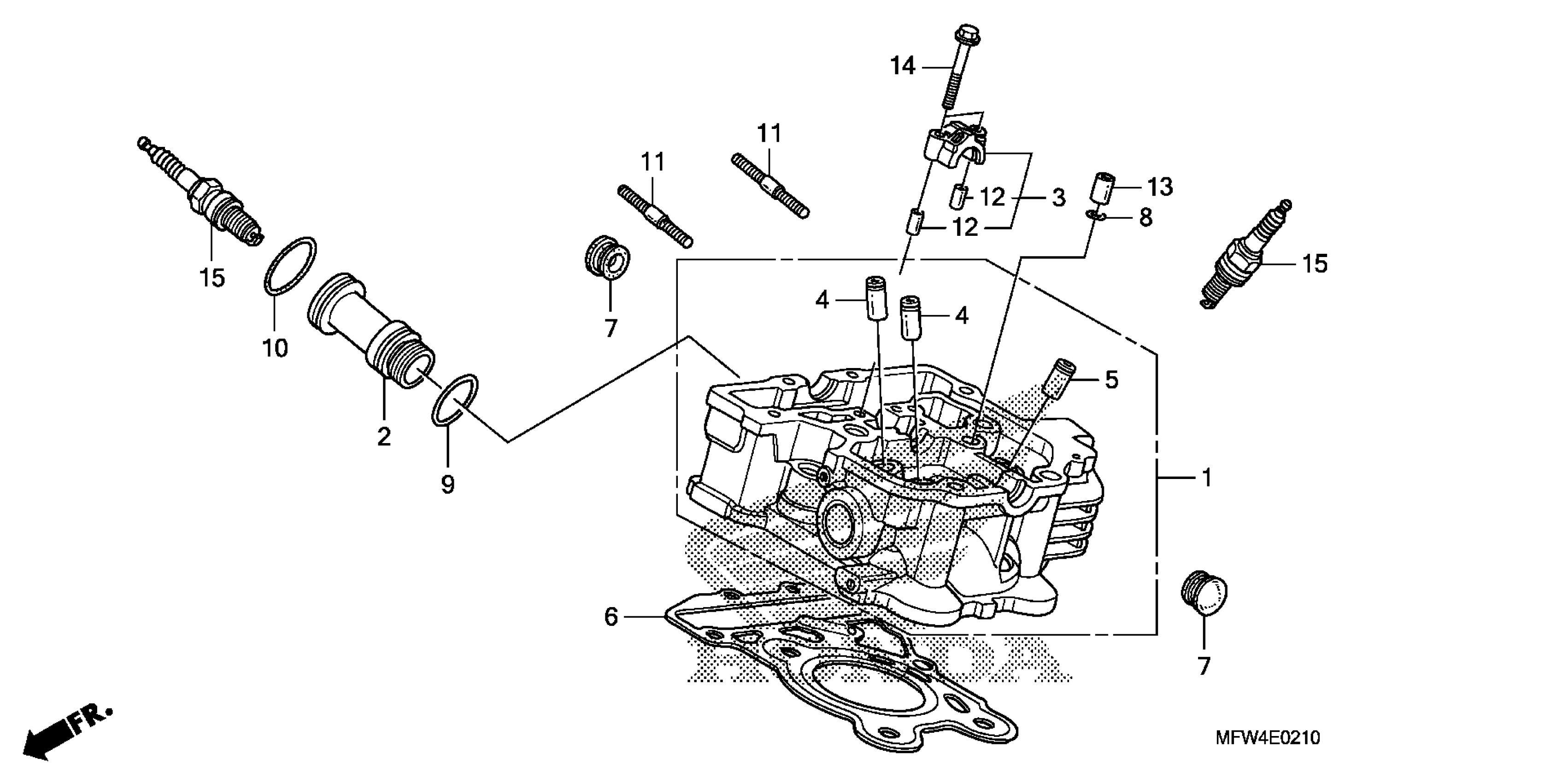

Honda VT1300CSAA (10) SABRE ABS, JPN, VIN# JH2SC674-AK000001 REAR CYLINDER HEAD Diagram

CYLINDER HEAD, RR.

12220-MEA-672

$1,137.30

SLEEVE, PLUG

12225-MG8-000

$38.87

HOLDER, CAMSHAFT

12230-MEA-670

$27.02

GUIDE, IN. VALVE (OVER SIZE)

12231-MG8-305

$20.08

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

GASKET, CYLINDER HEAD

12251-MFR-671

$41.26

PLUG, CAMSHAFT

12312-ME9-750

$10.12

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

O-RING (27.4X2.4) (ARAI) (Honda Code 1871326)

91304-MG7-003

$6.45

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

BOLT 2, STUD (8X28)

92900-08028-0E

$2.34

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

PIN A, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X38)

95701-06038-00

$1.89

SPARK PLUG (XU20EPR-U) (DENSO)

98069-5695Q

$2.92

SPARK PLUG (DCPR6E) (NGK)

98069-5697Q

$3.61

SPARK PLUG (XU22EPR-U) (DENSO) | (Optional).

98069-5795Q

$8.27

SPARK PLUG (DCPR7E) (NGK) | (Optional).

98069-5797Q

$4.10
