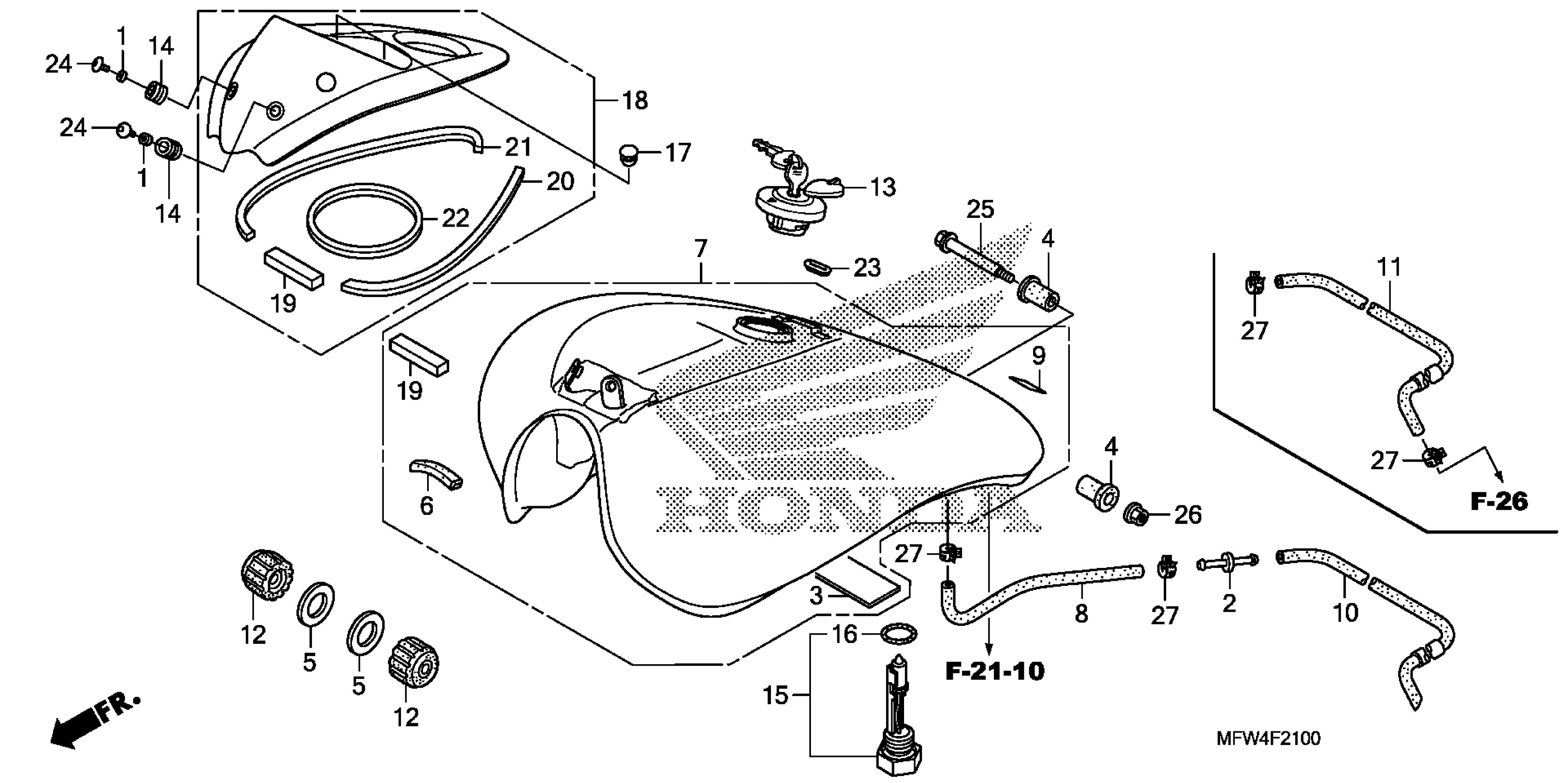

Honda VT1300CSAA (10) SABRE ABS, JPN, VIN# JH2SC674-AK000001 FUEL TANK Diagram

COLLAR, ADJUSTING COVER WASHER, CHAIN CASE SETTING

11346-371-300

$10.56

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

TAPE, TANK GUARD

17506-GCS-300

$3.31

CUSHION, FUEL TANK PIVOT

17506-MBR-000

$5.44

SPACER, FUEL TANK

17514-MFY-A00

$2.57

TRIM, FUEL TANK

17516-HC4-000

$3.90

TANK SET, FUEL *NHB01* (GRAPHITE BLACK)

17520-MFY-A00ZA

$1,663.39

TUBE, FUEL TANK BREATHER

17526-MFY-A00

$17.13

TAPE, FUEL TANK (25X25)

17528-MFY-A00

$3.05

TUBE, CANISTER JOINT

17529-MFR-770

$13.75

CUSHION, FR. FUEL TANK

17611-MFY-A00

$8.89

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$70.93

CAP, FUEL FILLER

17620-KR3-753

$70.93

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.90

SENSOR ASSY., FUEL RESERVE

37810-MER-D01

$52.21

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.92

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.84

COVER ASSY., METER

83500-MFY-A00

$116.74

MAT, METER COVER

83511-MFE-670

$1.80

CUSHION D, TOP COVER

83513-MFY-A00

$3.98

CUSHION E, TOP COVER

83514-MFY-A00

$4.38

CUSHION B, TOP COVER

83516-MFY-A00

$2.31

GROMMET, SIDE COVER

83551-ME9-000

$3.24

BOLT, SPECIAL (6X14)

90118-MCL-000

$2.33

BOLT, TANK HINGE

90135-MFR-670

$3.80

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.49
