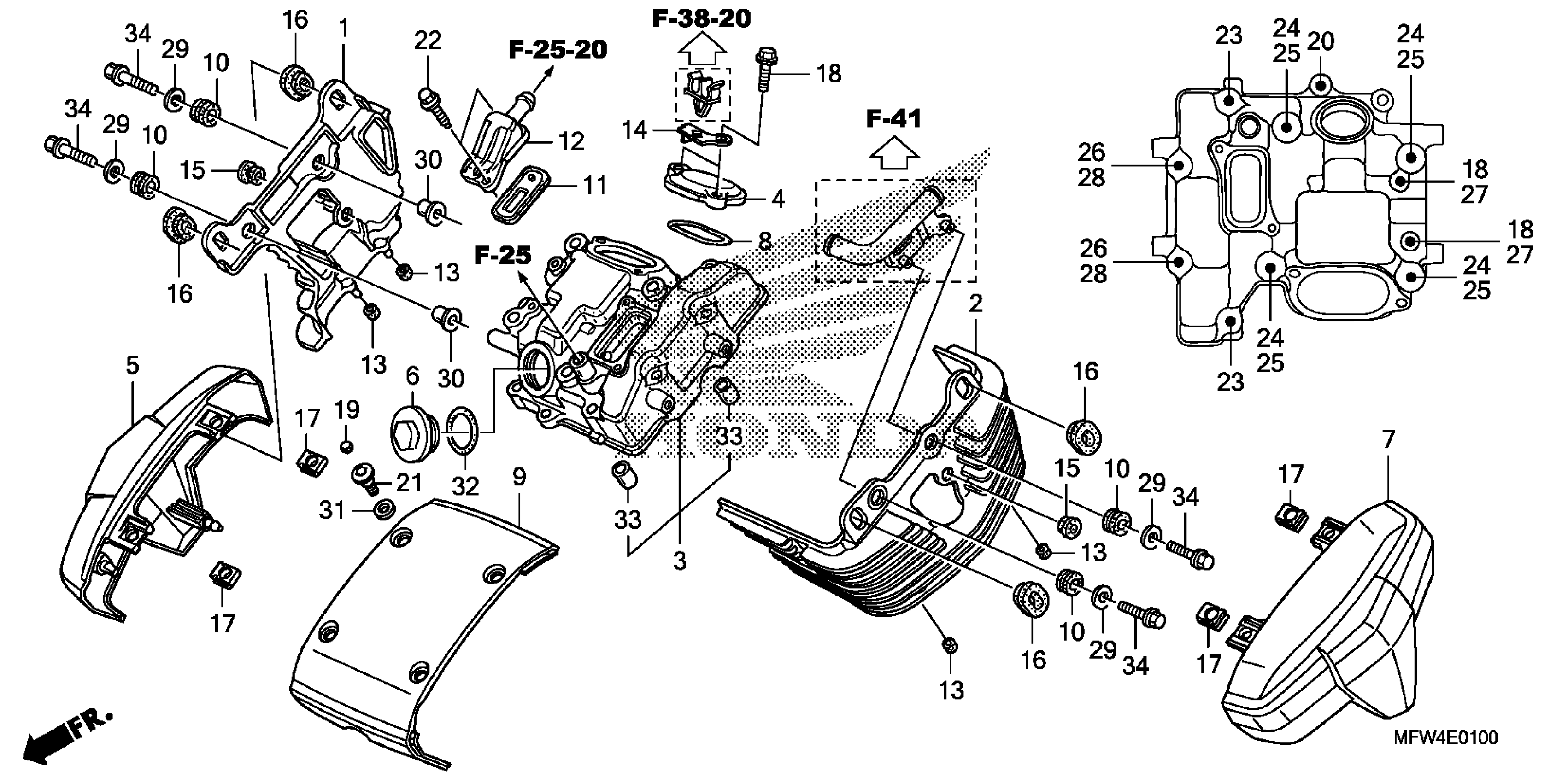

Honda VT1300CSAA (10) SABRE ABS, JPN, VIN# JH2SC674-AK000001 FRONT CYLINDER HEAD COVER Diagram

FIN, CYLINDER HEAD (FR. R.)

12261-MFR-670

$184.90

FIN, CYLINDER HEAD (FR. L.)

12271-MFR-670

$210.10

COVER, FR. CYLINDER HEAD

12310-MEA-670

$314.74

COVER, IN. TAPPET ADJUSTING HOLE

12341-MEA-670

$15.89

COVER, R. FR. OVER HEAD

12360-MFR-670

$93.18

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$6.43

COVER, L. FR. OVER HEAD

12370-MFR-670

$93.18

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

COVER, FR. CENTER OVER HEAD

12400-MFR-671

$110.36

RUBBER, CUSHION

17622-GB7-900

$4.78

VALVE, REED

18601-MCH-003

$27.09

COVER, REED VALVE

18612-MCH-000

$21.23

RUBBER, BUSHING (DENSO)

19041-611-003

$44.05

STAY, IGNITION WIRE

30531-MFR-670

$2.44

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.28

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.95

PLUG, HEX. (5MM)

90005-MAH-000

$2.43

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.80

BOLT, SPECIAL (6X17)

90006-MFR-670

$2.72

BOLT, FLANGE (5X14)

90012-896-750

$1.49

BOLT, FLANGE (8X150)

90015-MG8-000

$6.07

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.45

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

WASHER, SEALING (6MM)

90441-706-000

$1.49

NUT, CAP (8MM)

90443-107-000

$2.89

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.87

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

WASHER (18MM)

90581-831-650

$1.87

COLLAR, HEAD SIDE COVER

90502-KGB-610

$2.11

WASHER, NYLON (9MM)

90507-ZV1-000

$2.00

O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)

91303-KK3-830

$2.92

PIN A, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
