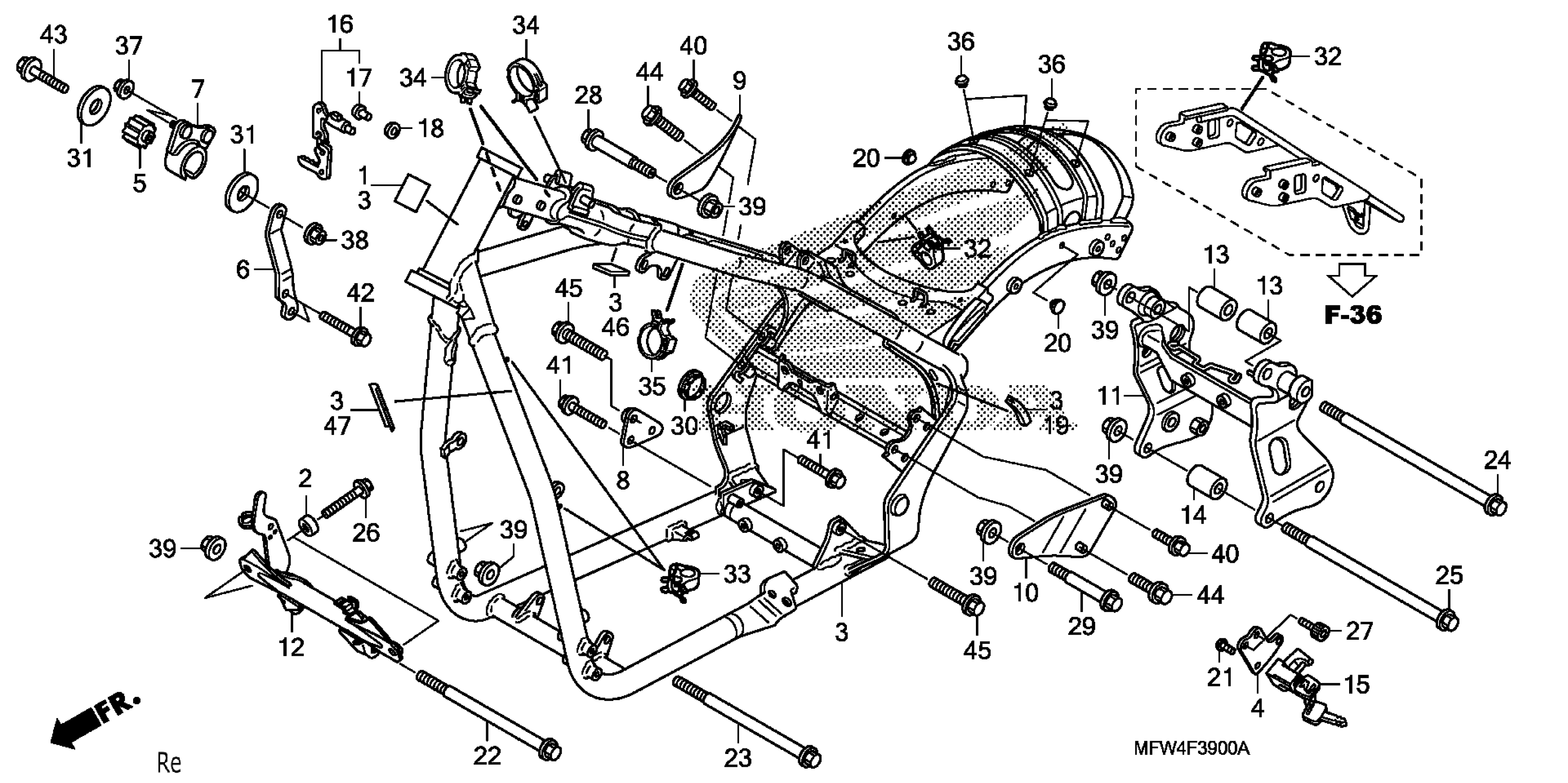

Honda VT1300CSAA (10) SABRE ABS, JPN, VIN# JH2SC674-AK000001 FRAME Diagram

#

Description
Price

1

TAPE B, TANK GUARD

17528-KCZ-930

$3.39

2

COLLAR B, MUFFLER STAY

18309-GN3-670

$2.49

3

FRAME SET

50010-MFW-A10

$3,090.68

4

BRACKET, HELMET HOLDER

50165-MFY-A00

$6.26

5

RUBBER, ENGINE HEAD MOUNTING

50201-MFY-A00

$8.07

6

PLATE, ENGINE HANGER (LOWER) (E)

50202-MFY-A00

$28.77

7

PLATE, ENGINE HANGER CENTER (E)

50203-MFY-A00

$53.13

8

PLATE, RR. ENGINE MOUNT (LOWER) (RH)

50204-MFR-670

$13.54

9

PLATE, R. RR. ENGINE HANGER (UPPER)

50207-MFR-670

$39.58

10

PLATE, L. RR. ENGINE HANGER (UPPER)

50208-MFR-670

$39.58

11

PLATE, PIVOT MOUNT

50210-MFR-670

$285.78

12

PIPE, FR. CROSS

50220-MFY-A00

$199.09

13

COLLAR, ENGINE HANGER (24X41.5)

50221-MFR-670

$7.97

14

COLLAR, ENGINE HANGER (24X32)

50223-MFR-670

$6.45

15

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$25.92

16

LOCK SET, HANDLEBAR

53600-MFR-AC0

$76.17

16

LOCK SET, HANDLEBAR This part replaces 53600-404-611.

53600-MFR-AC0

$76.17

17

RIVET

53603-MFR-AC1

$2.32

17

RIVET This part replaces 53603-051-000.

53603-MFR-AC1

$2.32

18

WASHER (4.5MM) This part replaces 53604-098-940.

53604-098-941

$2.16

18

WASHER (4.5MM)

53604-098-941

$2.16

19

RUBBER, PROTECTOR

64122-MBB-300

$4.70

20

RUBBER, SEAT SIDE (RIGHT SIDE)

77212-965-000

$4.60

21

BOLT, ONE-WAY (6X12)

90105-KEB-620

$2.06

22

BOLT, FLANGE (10X148)

90110-MFR-670

$7.09

23

BOLT, FLANGE (10X151)

90111-MFR-670

$7.41

24

BOLT, FLANGE (10X235.5)

90112-MFR-670

$8.77

25

BOLT, FLANGE (10X212)

90117-MFR-670

$8.77

26

BOLT, FLANGE (8X40) (G)

90125-MFY-A00

$3.04

27

BOLT, TORX (6X13)

90130-MEW-D20

$2.80

28

BOLT, FLANGE (10X52)

90154-MFR-670

$11.42

29

BOLT, FLANGE (10X66)

90155-MFR-670

$12.41

30

CAP, R. LOCK NUT (BOTH SIDES)

90312-MB0-700

$16.34

31

WASHER, TANK MOUNTING

90455-896-700

$2.86

32

CLIP, CABLE (8MM)

90690-GHB-631

$1.99

33

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$1.99

34

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

35

CLIP, CABLE (17MM)

90690-GHB-701

$2.78

36

PLUG, HOLE

90852-446-630

$2.33

37

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

38

NUT, FLANGE (8MM)

94050-08070

$1.36

39

NUT, FLANGE (10MM)

90303-428-900

$3.12

39

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

40

BOLT, FLANGE (8X25)

95701-08025-07

$0.88

41

BOLT, FLANGE (8X28)

95701-08028-07

Unavailable

42

BOLT, FLANGE (8X30)

95701-08030-07

$2.07

43

BOLT, FLANGE (8X55)

95701-08055-07

$1.68

44

BOLT, FLANGE (10X25)

95701-10025-07

$1.29

45

BOLT, FLANGE (10X32)

95701-10032-07

$1.61

46

MAT, MAIN PIPE

50190-MFY-A00

$1.64

47

SEAL, PROTECTOR

76259-767-L00

$2.61
