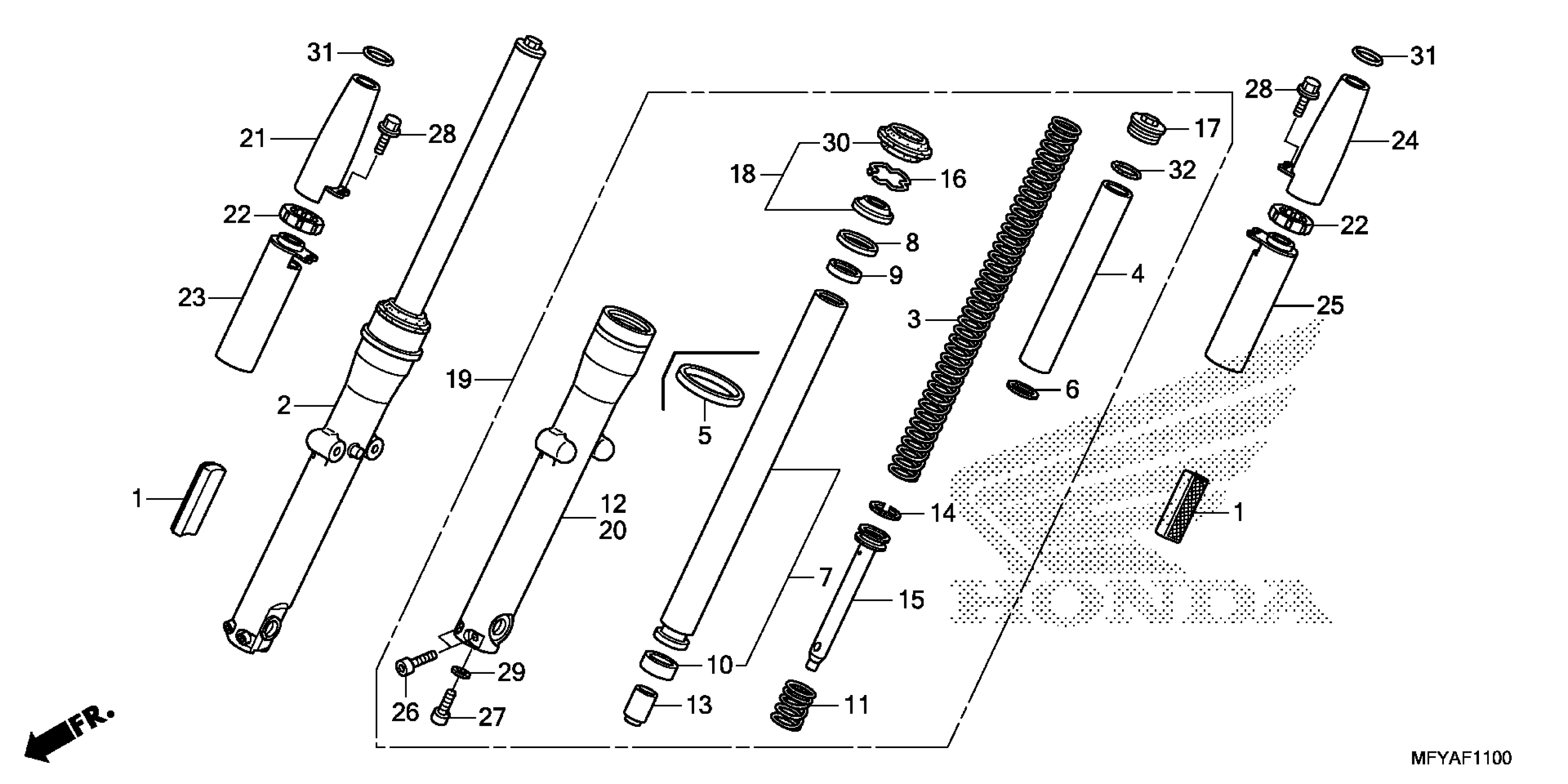

Honda VT1300CSA (12) VT1300, JPN, VIN# JH2SC670-CK200001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-MEA-671

$30.18

2

FORK ASSY., R. FR. (COO)

51400-MFW-305

Unavailable

3

SPRING, FR. FORK

51401-MFW-A01

Unavailable

4

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$24.00

6

PLATE, SPRING JOINT

51404-MB4-003

$4.94

7

PIPE, FR. FORK

51410-MFW-A01

$396.80

8

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

9

BUSH, GUIDE

51414-MFJ-A51

$7.25

10

BUSH, SLIDER

51415-MFJ-A51

$7.25

11

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

12

CASE, R. (LOWER)

51420-MFW-A01

Unavailable

13

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

14

RING, PISTON

51437-MB4-003

$9.57

15

PIPE, SEAT

51440-MFY-A01

$43.56

16

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

17

BOLT, FR. FORK

51454-MM9-671

$38.35

18

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$22.76

18

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

19

FORK ASSY., L. FR. (COO)

51500-MFW-305

$814.43

20

CASE, L. (LOWER)

51520-MFW-A01

$400.84

26

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

27

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

29

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

30

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

30

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$8.55

32

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
