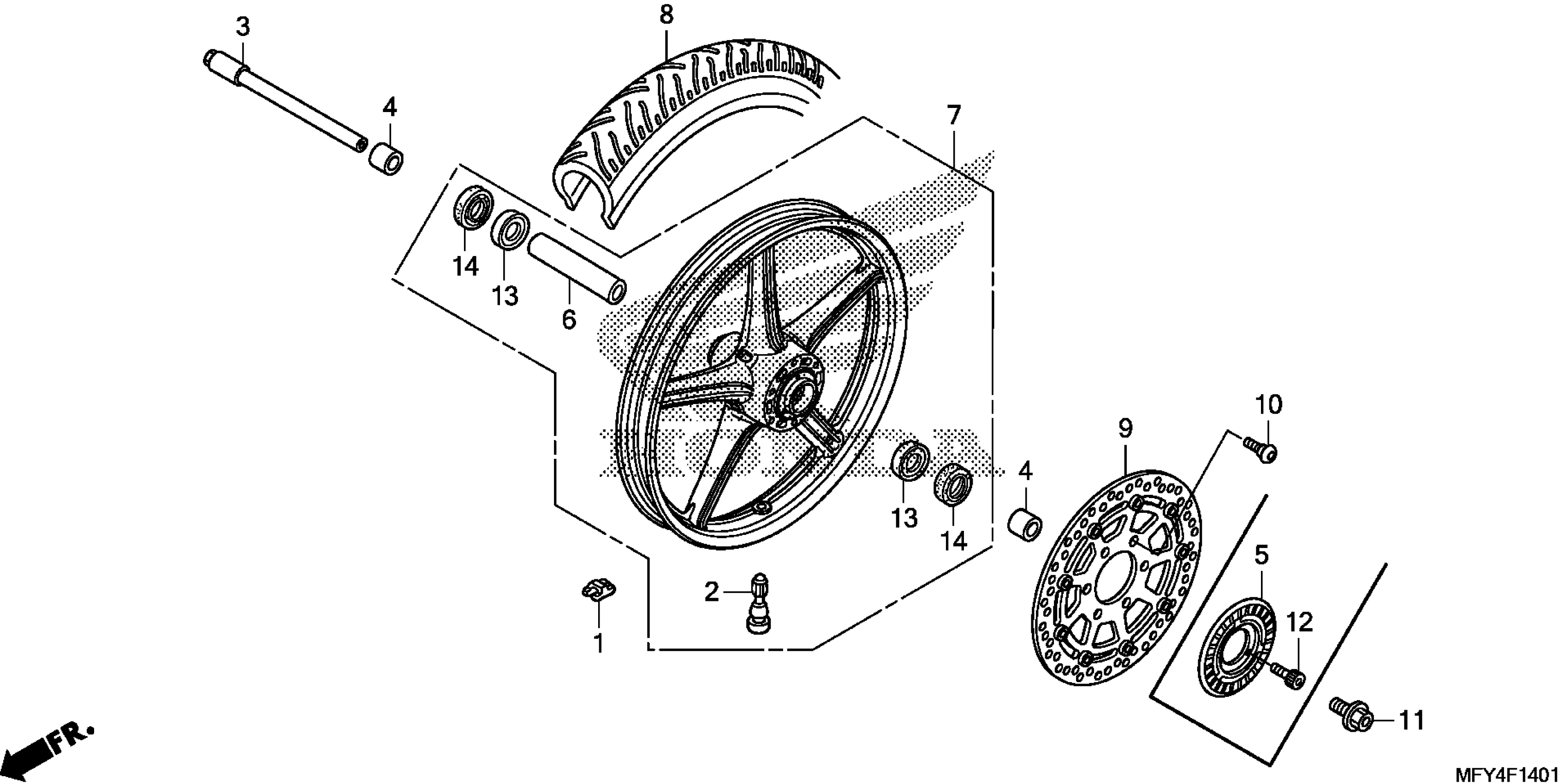

Honda VT1300CSA (11) SABRE, JPN, VIN# JH2SC670-BK100001 FRONT WHEEL (2) Diagram

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MFR-670

$93.05

COLLAR, L. FR. WHEEL SIDE

44311-MCH-A00

$13.04

COLLAR, FR. AXLE DISTANCE

44620-MFR-670

$19.39

WHEEL SUB-ASSY., FR. (COO)

44650-MFW-305

$1,128.38

TIRE, FR. (90/90-21M/C 54H) (BS)

44711-MFW-A01

$220.19

TIRE, FR. This part replaces 44711-MFW-A02.

44711-MFW-A04

Unavailable

TIRE, FR. This part replaces 44711-MFW-A03.

44711-MFW-A04

Unavailable

TIRE, FR.

44711-MFW-A04

Unavailable

DISK, FR. BRAKE

45120-MFR-671

$553.93

BOLT, DISK (8X22)

90103-MFY-A00

$4.16

BOLT, FR. AXLE

90105-MBT-610

$5.76

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

DUST SEAL (30X52X7)

91253-442-003

$13.96
