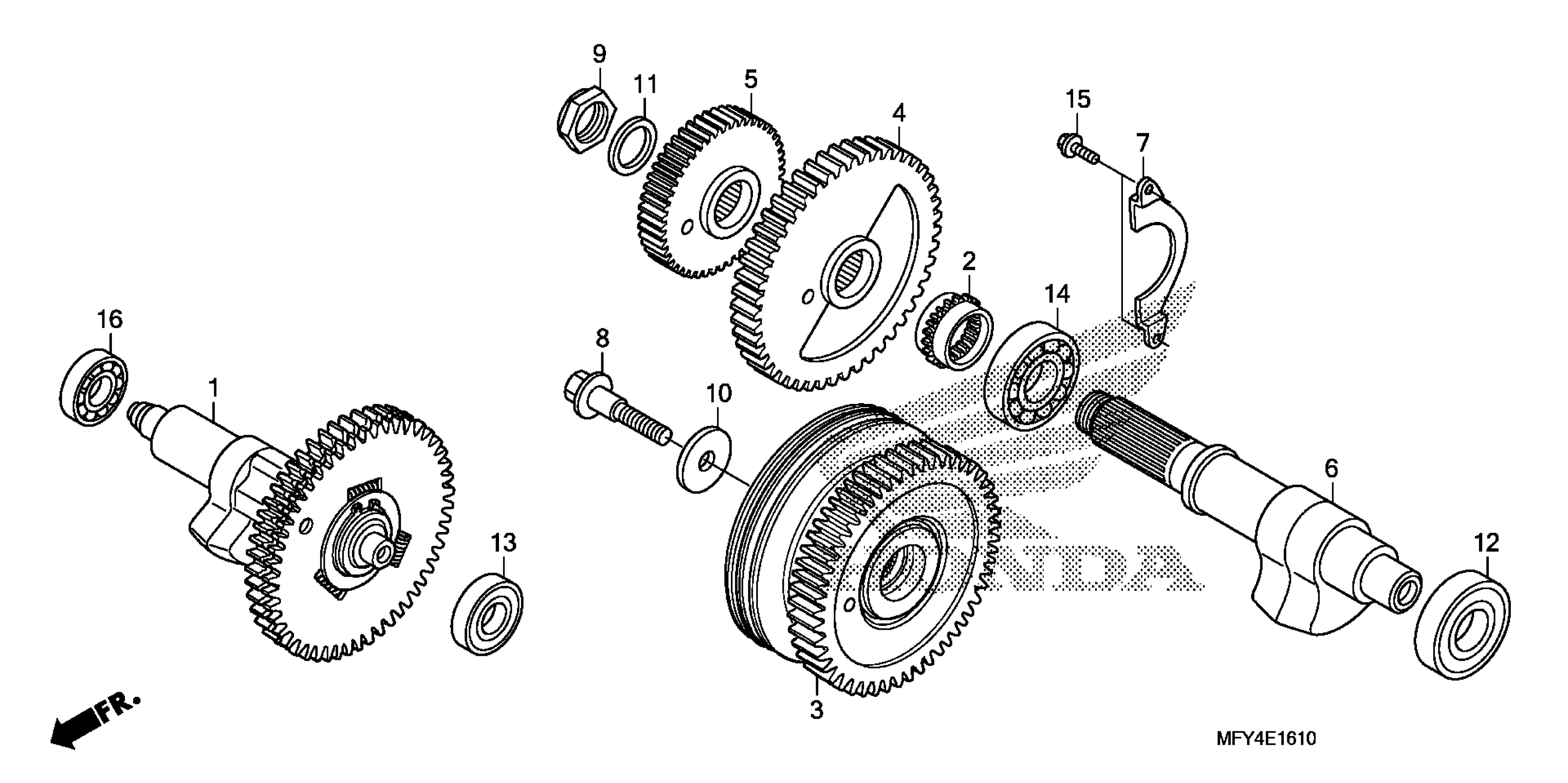

Honda VT1300CSA (11) SABRE, JPN, VIN# JH2SC670-BK100001 BALANCER Diagram

SHAFT ASSY., FR. BALANCER (47T)

13400-MFR-670

$316.39

SPROCKET, OIL PUMP DRIVE (21T)

15131-MEA-670

$43.39

DAMPER ASSY., PRIMARY (47T)

23110-MEA-672

$348.20

GEAR A, PRIMARY DRIVEN (47T)

23131-MFR-670

$100.42

GEAR B, PRIMARY DRIVE (31T)

23141-MFR-670

$87.87

SHAFT, RR. BALANCER

23150-MFR-670

$258.54

PLATE B, BEARING SETTING

23153-MCH-000

$7.38

BOLT, FLANGE (12X45)

90023-MBT-010

$6.41

NUT, LOCK (25MM)

90231-MCH-000

$6.32

WASHER (12.2X40X5)

90402-MBA-A40

$5.12

WASHER, SPRING (25MM)

90432-MEA-670

$3.80

BEARING, RADIAL BALL (63/22U) (KOYO)

91002-MCH-003

$25.06

BEARING, RADIAL BALL (6204U SPL.) (KOYO)

91011-HN2-004

$15.55

BEARING, RADIAL BALL (6305U)

91024-MEA-671

$20.62

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98
