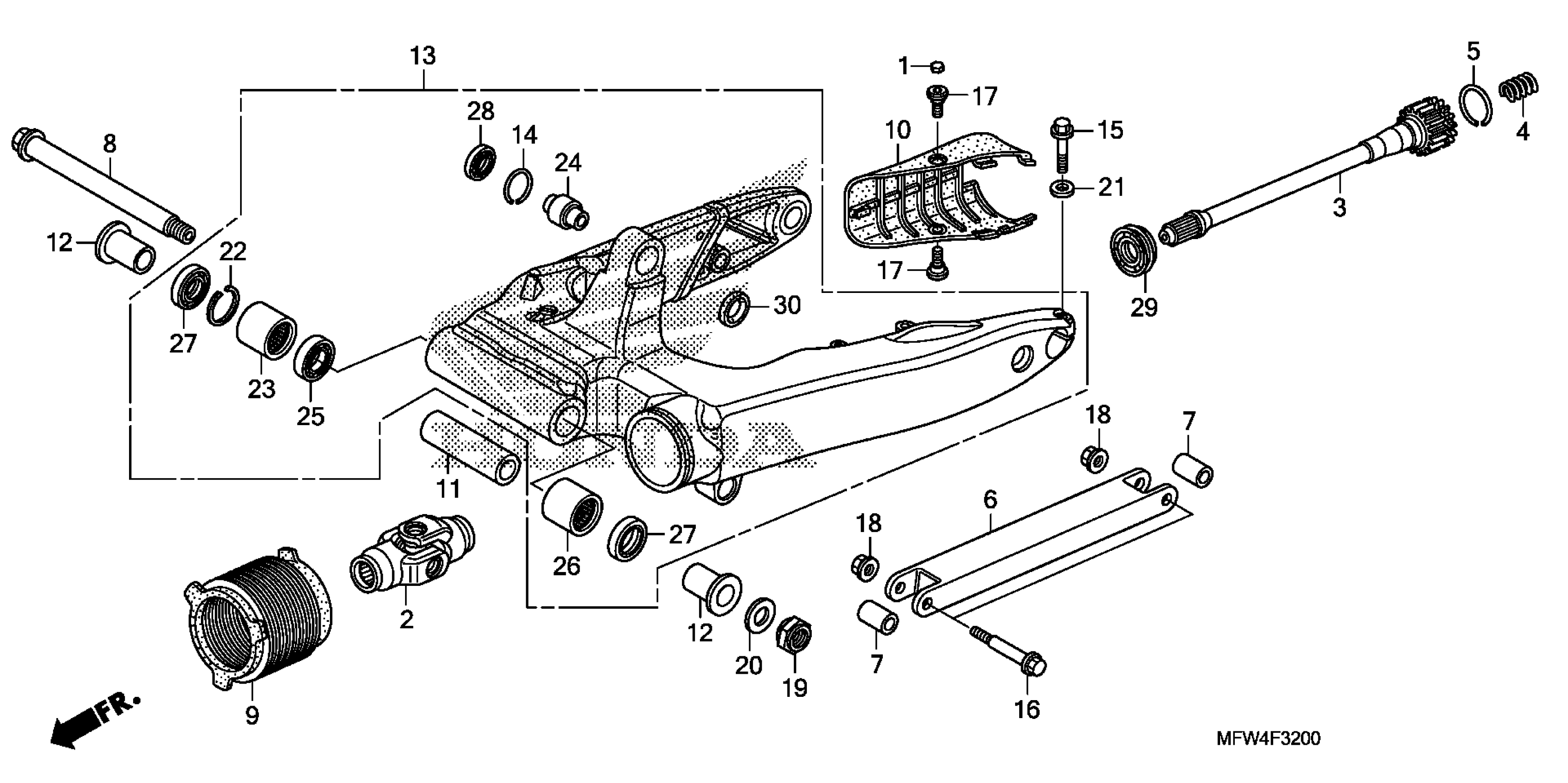

Honda VT1300CSA (10) SABRE, JPN, VIN# JH2SC670-AK000001 SWINGARM Diagram

PLUG, HEX. (6MM)

12392-MJ0-000

$4.53

JOINT, YOKE

40200-MFR-670

$194.51

SHAFT, PROPELLER

40201-MFR-670

$161.56

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

RING, STOPPER

40221-MB0-000

$4.53

LINK, TORQUE

41610-MFY-A00

$160.97

BUSH, TORQUE LINK

41615-MFR-670

$11.74

BOLT, SWINGARM PIVOT

52101-MFR-670

$59.85

BOOT, JOINT

52104-MFR-670

$25.28

COVER, PROPELLER SHAFT

52105-MFY-A00

$28.38

COLLAR, CENTER PIVOT DISTANCE

52141-MFR-670

$22.89

COLLAR, PIVOT DISTANCE

52142-MFR-670

$28.26

SWINGARM SUB-ASSY., RR.

52200-MFY-A00

$1,210.69

RING, STOPPER (SHOWA)

52487-KA4-831

$3.92

BOLT, FLANGE (8X35)

90103-MFR-670

$6.75

BOLT, FLANGE (10X50)

90106-MFR-670

$4.33

BOLT, SOCKET (6X12)

90108-MFR-670

$3.21

NUT, U (10MM)

90304-KAE-871

$4.33

NUT, U (18MM)

90306-MCS-G00

$7.13

WASHER, SPECIAL (18MM)

90432-MCS-G00

$2.87

WASHER, PLAIN (8MM)

90501-MFR-670

$3.80

CIRCLIP (INNER) (37)

90651-MEW-920

$3.13

BEARING, NEEDLE

91071-MBW-E11

$17.20

BEARING, SPHERICAL (10MM)

91071-MEC-003

$36.11

BEARING, RADIAL BALL (20X37X9)

91071-MEW-921

$9.31

BEARING, NEEDLE

91071-MR7-003

$25.68

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

DUST SEAL (16X26X2.5)

91254-MBR-003

$5.84

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87
