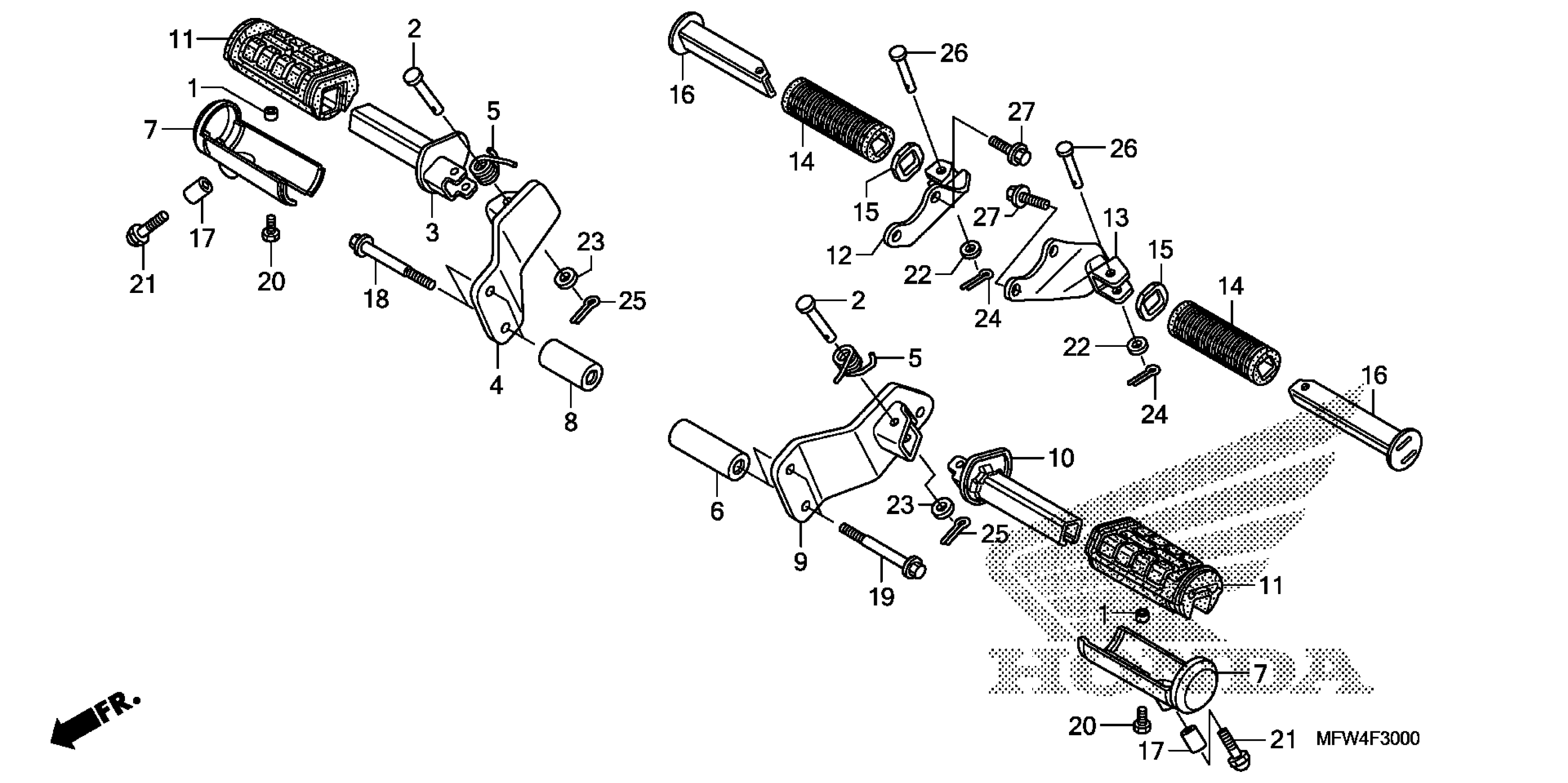

Honda VT1300CSA (10) SABRE, JPN, VIN# JH2SC670-AK000001 STEP Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.80

2

PIN, STEP BAR JOINT

50603-033-010

$2.98

3

BAR, R. STEP (COO) This part replaces 50612-MK7-010.

50612-MFR-305

$15.98

4

BRACKET, R. STEP

50615-MFY-A00

$62.23

5

SPRING, STEP RETURN

50617-MB1-700

$5.41

6

COLLAR, L. STEP BRACKET

50619-MFY-A00

$9.38

7

STOPPER, STEP RUBBER

50619-MK7-010

$12.62

8

COLLAR, R. STEP BRACKET

50621-MFY-A00

$7.48

9

BRACKET, L. STEP

50625-MFY-A00

$63.64

10

BAR, L. STEP (COO) This part replaces 50642-MM8-000.

50642-MFR-305

$15.98

11

RUBBER, MAIN STEP (COO) This part replaces 50661-MK7-000.

50661-MFR-305

$9.78

12

BRACKET, R. PILLION STEP

50680-MFY-A00

$69.78

13

BRACKET, L. PILLION STEP

50685-MFY-A00

$69.78

14

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$12.78

15

WASHER, PILLION STEP

50712-MFE-670

$2.81

16

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$15.98

16

BAR, PILLION STEP (COO)

50715-413-305

$15.98

17

COLLAR, HANDLE SETTING

53103-GN5-900

$5.46

18

BOLT, SPECIAL FLANGE (8X60)

90101-KFE-700

$1.88

19

BOLT, SPECIAL FLANGE (8X90)

90127-126-900

$6.15

20

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.29

21

BOLT, CAP (8X18)

92501-08018-0A

$2.78

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

23

WASHER, PLAIN (8MM)

94101-08000

$0.75

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

24

PIN, COTTER (1.6X25)

94201-16250

$0.94

25

PIN, COTTER (2.0X15)

94201-20150

$0.94

26

PIN A, PILLION STEP

95015-81000

$2.01

27

BOLT, FLANGE (8X20)

95701-08020-07

$1.70
