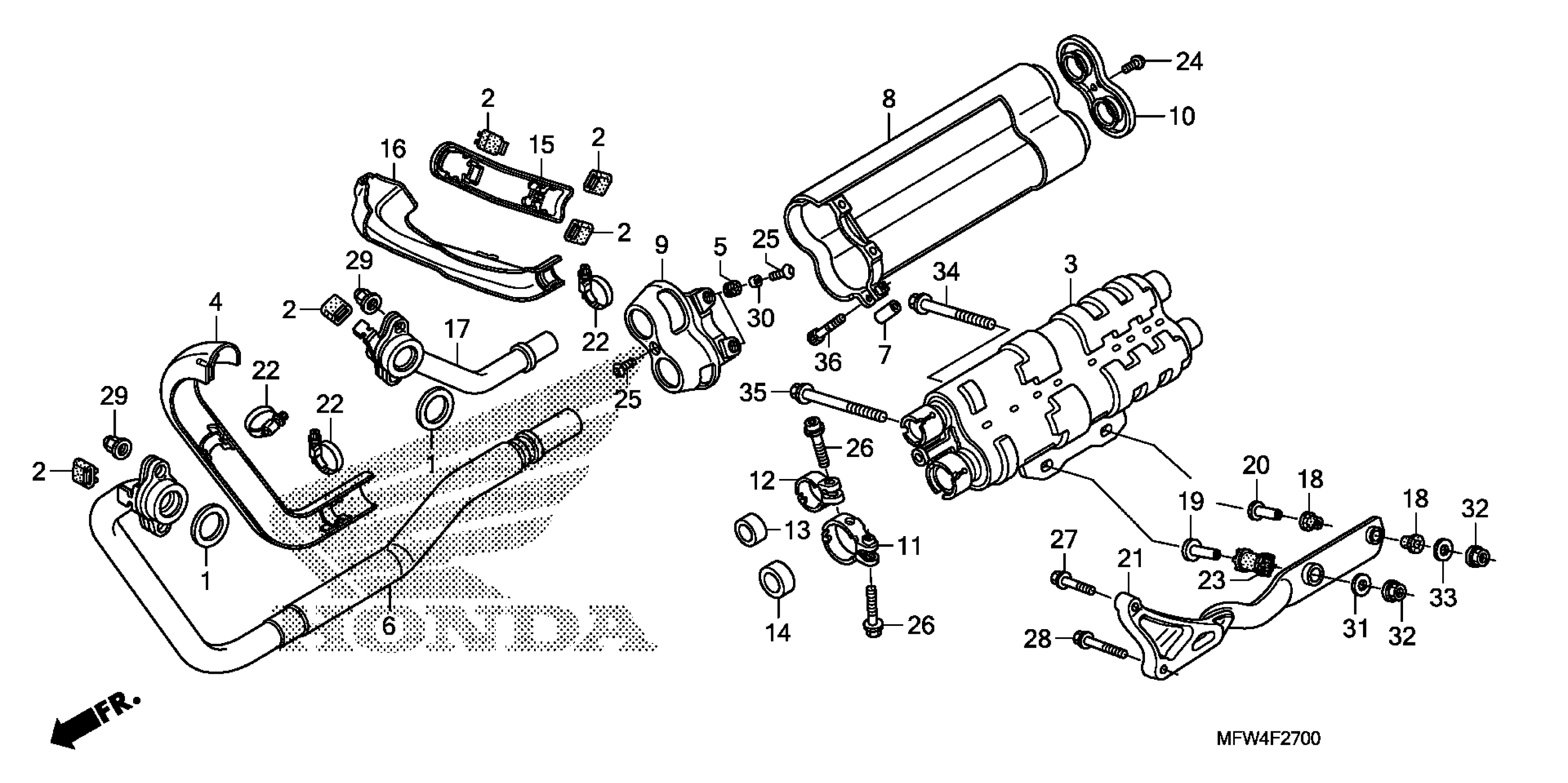

Honda VT1300CSA (10) SABRE, JPN, VIN# JH2SC670-AK000001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MR5-801

$12.82

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

MUFFLER, EX.

18310-MFR-770

$1,854.56

COVER, FR. EX. PIPE

18315-MFR-670

$363.36

RUBBER, PROTECTOR

18316-KFT-620

$2.48

PIPE, FR. EX.

18320-MFR-670

$355.36

COLLAR, MUFFLER COVER

18324-MFR-670

$3.31

COVER, MUFFLER

18325-MFR-670

$454.93

COVER, FR. MUFFLER

18330-MFR-670

$177.69

COVER, MUFFLER TAIL

18340-MFR-670

$107.66

BAND, L. EX. PIPE (RIGHT SIDE)

18374-ML0-000

$28.48

BAND, L. EX. PIPE

18374-ML4-003

$16.36

GASKET, MUFFLER

18391-ML8-000

$9.49

GASKET, MUFFLER

18391-MN5-650

$20.61

PROTECTOR, RR. EX. | Use up to Frame SN AK002042. This part replaces 18415-MFR-670.

18415-MFR-671

$231.16

PROTECTOR, RR. EX.

18415-MFR-671

$231.16

COVER, RR. EX. PIPE This part replaces 18417-MFR-670.

18417-MFR-671

$356.52

COVER, RR. EX. PIPE

18417-MFR-671

$356.52

PIPE, RR. EX.

18420-MFR-670

$283.62

RUBBER, MUFFLER MOUNTING

18421-KAF-000

$3.13

COLLAR, MUFFLER MOUNTING

18422-KM9-000

$7.18

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.92

BRACKET, MUFFLER

18455-MFR-670

$325.39

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

RUBBER, MUFFLER MOUNTING

50608-KK6-000

$7.79

SCREW, PAN (6X8)

90108-KGB-610

$2.21

SCREW, PAN (6X14)

90118-MR1-000

$3.10

BOLT, FLANGE (8X32)

90125-GS9-000

$2.97

BOLT, FLANGE (10X35)

90188-MFR-670

$2.18

BOLT, FLANGE (10X45)

90189-MFR-670

$3.67

NUT, CAP (8MM)

90304-ME1-670

$5.94

COLLAR, RR. SPLASH GUARD

90325-197-000

$3.41

WASHER (8MM)

90501-819-000

$1.49

NUT, FLANGE (8MM)

94050-08070

$1.49

WASHER, PLAIN (8MM)

94103-08800

$1.49

BOLT, FLANGE (8X50)

95701-08050-07

$1.49

BOLT, FLANGE (8X55)

95701-08055-07

$1.85

BOLT, SOCKET (6X32)

96600-06032-00

$1.85
