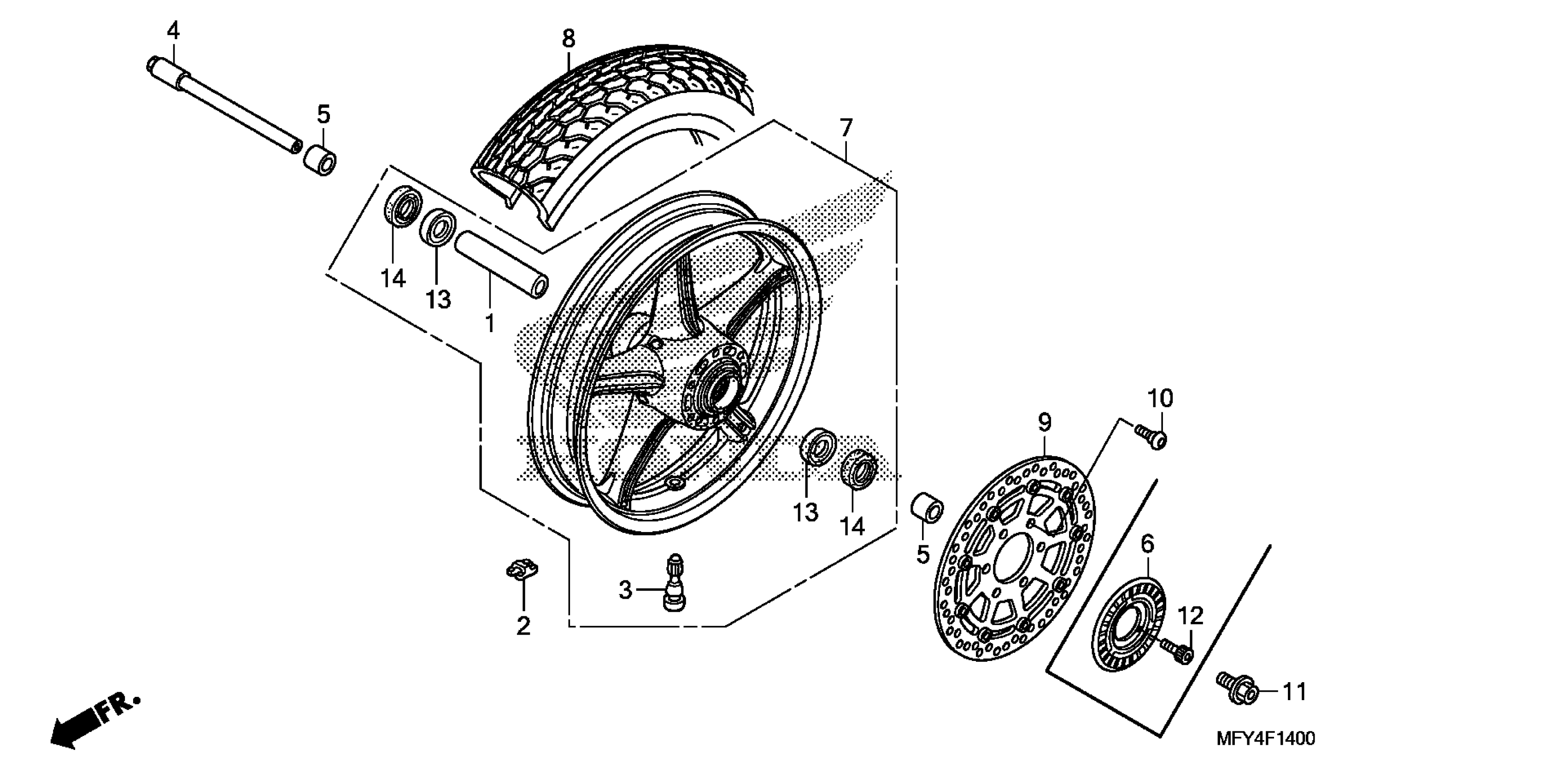

Honda VT1300CRAC (11) STATELINE, JPN, VIN# JH2SC661-BK100001 FRONT WHEEL (1) Diagram

COLLAR, RR. AXLE DISTANCE (FR.)

42620-MW0-010

$34.02

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MFY-A00

$100.84

COLLAR, L. FR. WHEEL SIDE

44311-MCH-A00

$13.04

WHEEL SUB-ASSY., FR.

44650-MFY-A00

$820.74

WHEEL SUB-ASSY., FR. (COO)

44650-MFY-305

$820.74

TIRE, FR. (140/80-17M/C 69H) (BS)

44711-MFY-A01

$282.30

TIRE, FR. This part replaces 44711-MFY-A02.

44711-MFY-A04

$282.30

TIRE, FR. This part replaces 44711-MFY-A03.

44711-MFY-A04

$282.30

TIRE, FR.

44711-MFY-A04

$282.30

DISK, FR. BRAKE

45120-MFR-671

$553.93

BOLT, DISK (8X22)

90103-MFY-A00

$4.16

BOLT, FR. AXLE

90105-MBT-610

$5.76

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

DUST SEAL (30X52X7)

91253-442-003

$13.96
