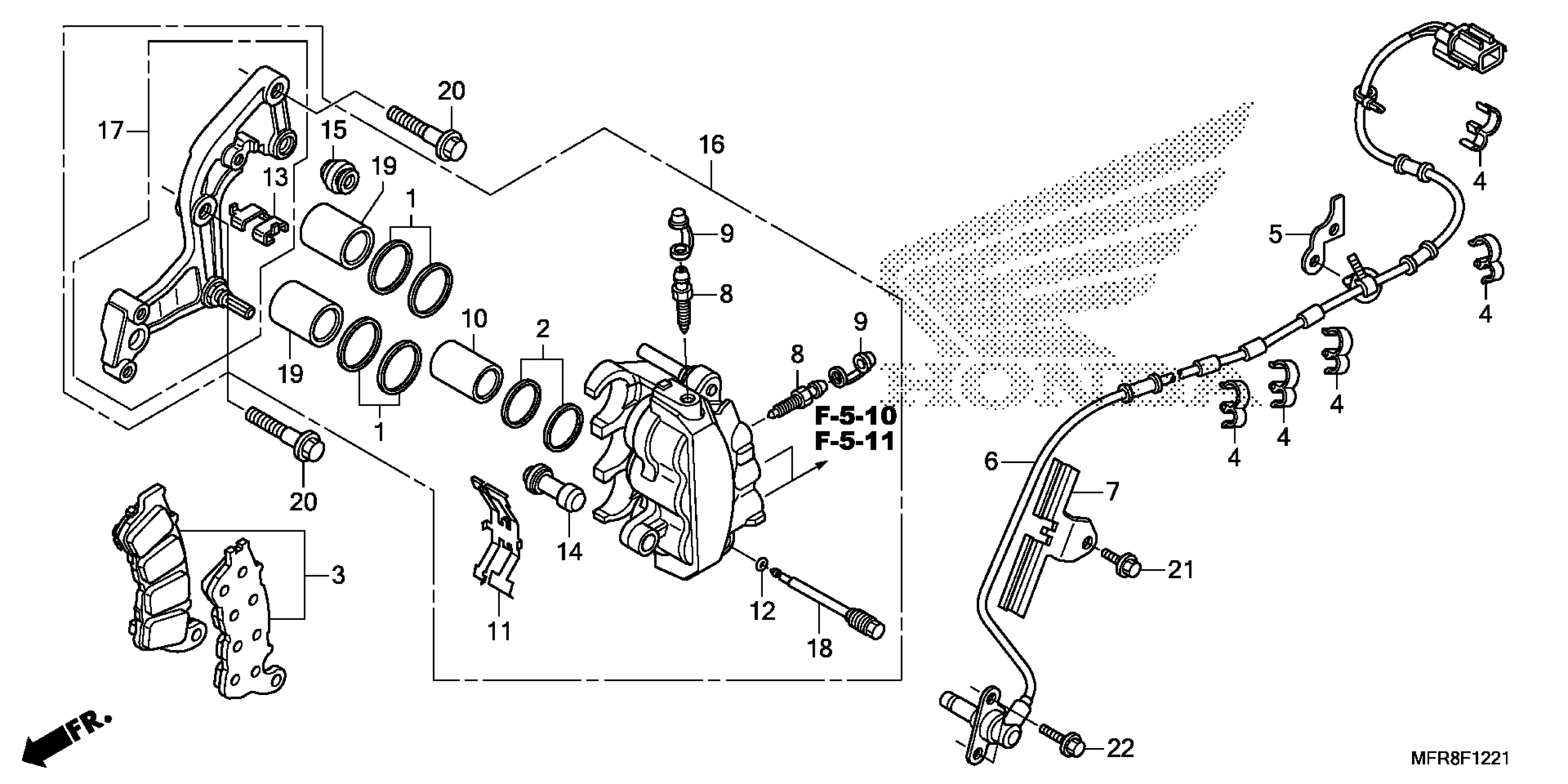

Honda VT1300CRAAC (14) VT1300CRA, JPN, VIN# JH2SC665-EK200001 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$12.55

PAD SET, FR. This part replaces 06455-MFR-A01.

06455-MFR-A02

$69.93

CLAMP, PIPE

11152-KS4-003

$7.13

STAY, SPEED SENSOR

38515-MFY-A10

$5.54

SENSOR, FR. WHEEL SPEED

38520-MFY-A11

$192.95

GUIDE, SPEED SENSOR WIRE

38521-MFR-A00

$11.28

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON A (22X27)

45107-MAJ-G41

$39.18

SPRING, PAD

45108-MET-652

$5.79

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MET-651

$4.48

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MFR-A21

$549.95

BRACKET SUB-ASSY., L. FR.

45190-MFR-A21

$146.87

PIN, HANGER

45215-MBT-D51

$6.90

PISTON B (27X35)

45218-MAJ-G41

$39.18

BOLT, FLANGE (8X35)

90131-MFR-670

$3.85

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
