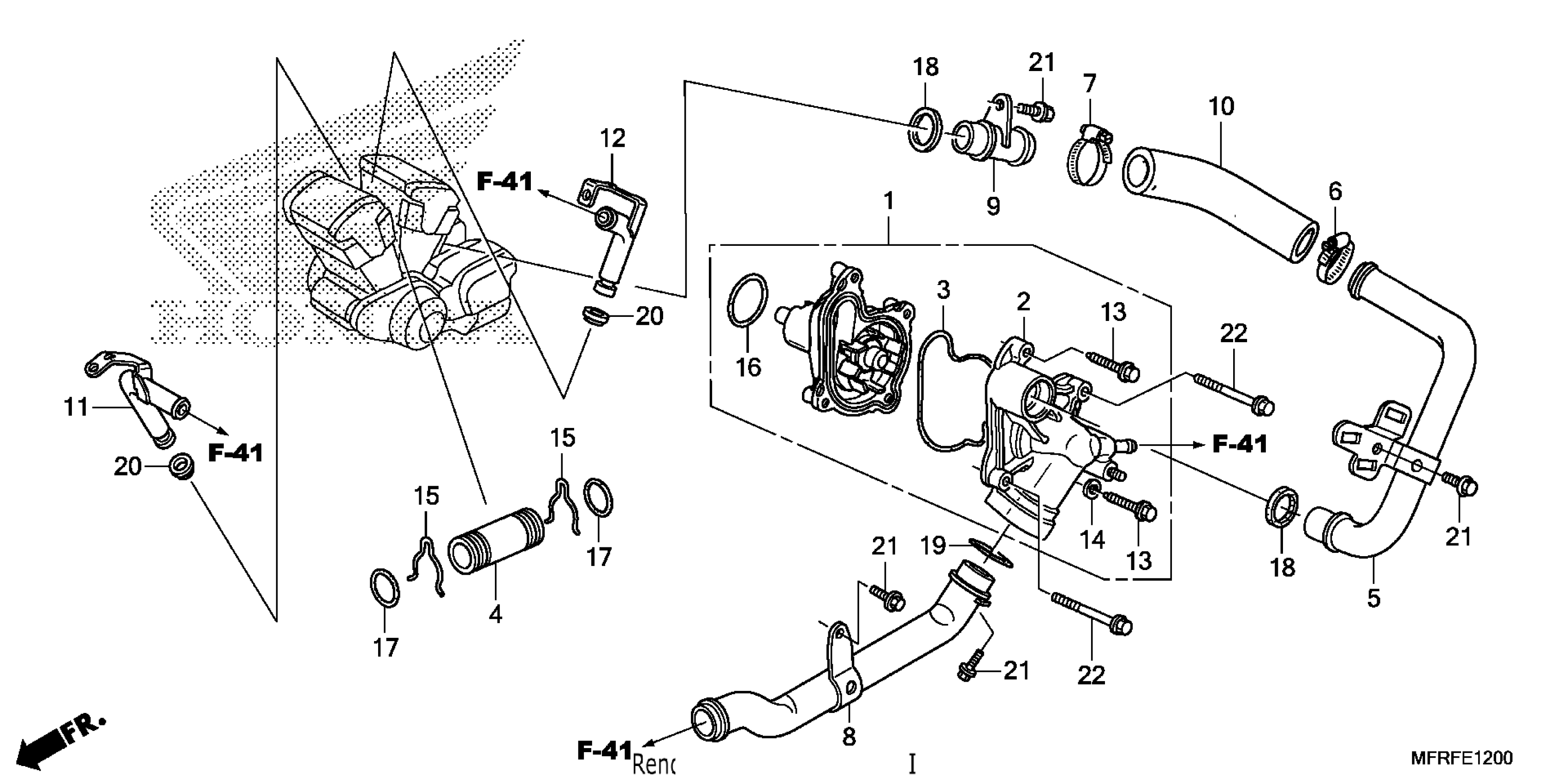

Honda VT1300CRA (15) MOTORCYCLE, JPN, VIN# JH2SC660-FK500001 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY.

19200-MEA-670

$238.50

2

COVER, WATER PUMP

19220-MEA-670

$105.01

3

GASKET, WATER PUMP COVER

19226-MEA-670

$8.68

4

JOINT, WATER (FR/RR)

19505-MFR-670

$30.13

5

PIPE A, WATER

19510-MFR-670

$29.44

6

CLAMP, WATER HOSE

19516-MB6-000

$13.31

7

CLAMP, HOSE

19516-MER-D10

Unavailable

8

PIPE B, WATER

19520-MFR-670

$47.00

9

PIPE C, WATER

19524-MCH-000

$18.75

10

HOSE, IN. WATER

19526-MEA-670

$9.82

11

PIPE, FR. OUTLET WATER

19530-MFR-670

$22.93

12

PIPE, RR. OUTLET WATER

19540-MFR-670

$22.93

13

BOLT, FLANGE (6X25)

90121-MV9-670

$2.75

14

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

15

CLIP, RING (24MM)

90601-MCH-000

$2.46

16

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.71

17

O-RING (23.5X2.2)

91311-MCH-003

$2.71

18

SEAL, WATER PIPE

91315-MB0-013

$2.50

19

O-RING (27X3.1) (FRAME NO.)

91315-MCH-003

$4.14

20

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.31

21

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

22

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.75

22

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.75
