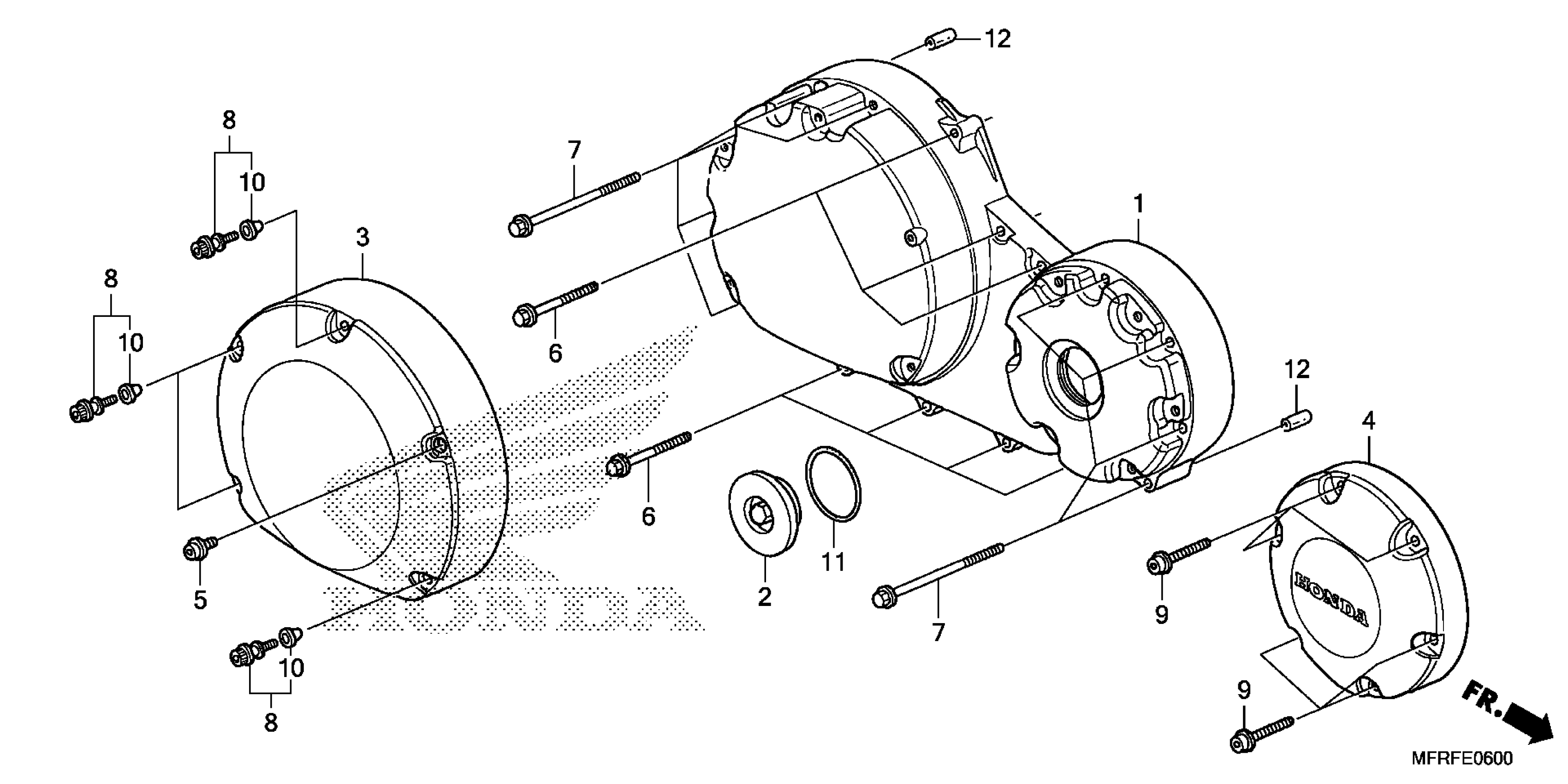

Honda VT1300CRA (15) MOTORCYCLE, JPN, VIN# JH2SC660-FK500001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11331-MFY-A00

$289.30

CAP (45MM)

11332-MM5-000

$24.01

COVER, CLUTCH

11340-MEA-A50

$246.62

COVER, TIMING

11350-MEA-A50

$174.38

BOLT, FLANGE SOCKET (6X8)

90002-MEA-670

$2.38

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

BOLT, FLANGE (6X60) (NSHF)

90006-GHB-750

$1.97

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.24

BOLT, SOCKET (6X22) (FRAME NO.)

90031-MCH-000

$2.15

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
