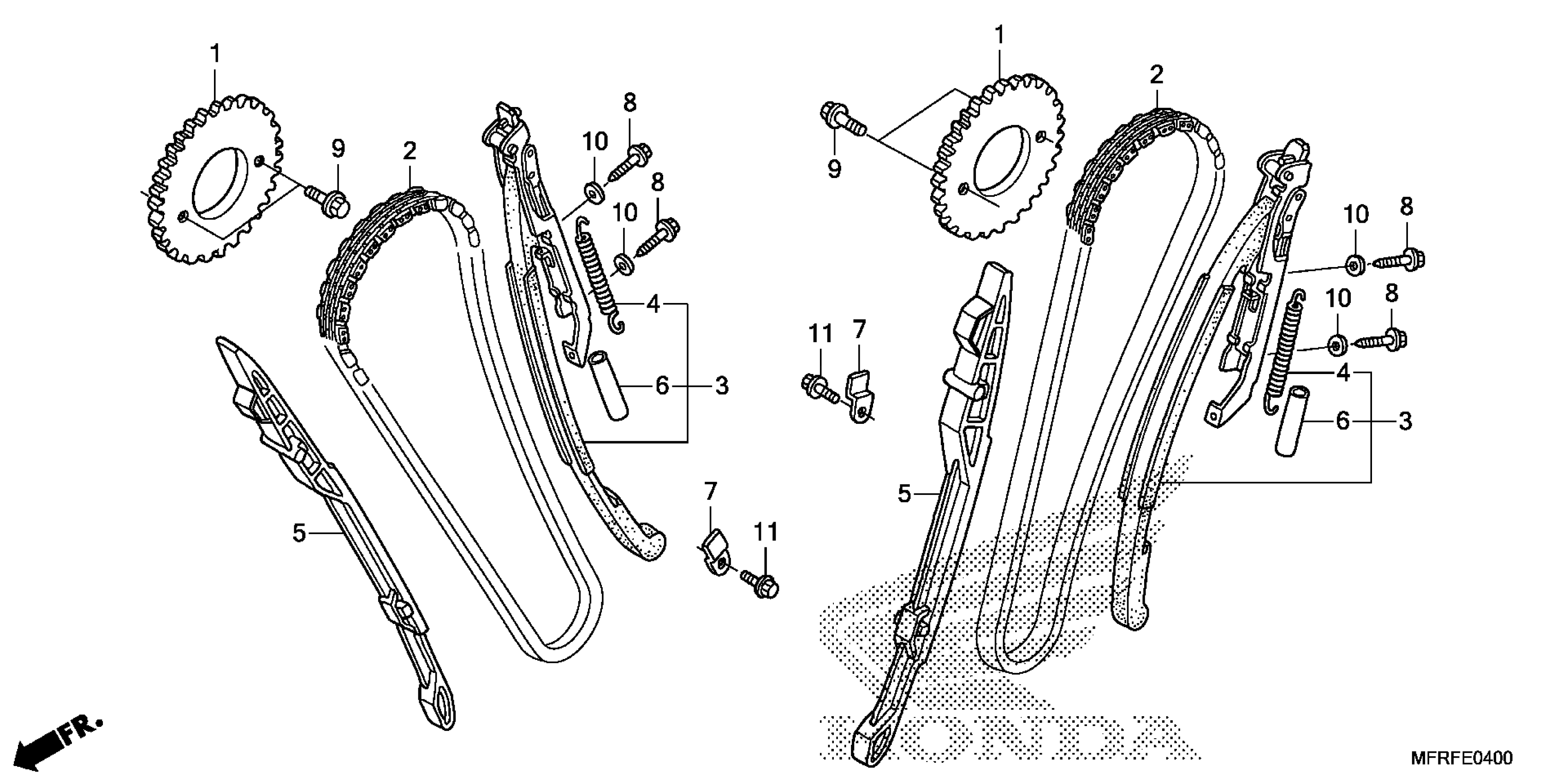

Honda VT1300CRA (15) MOTORCYCLE, JPN, VIN# JH2SC660-FK500001 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (42T)

14322-MEA-670

$41.49

CHAIN, CAM (140L) (BORG WARNER)

14401-MEA-671

$99.51

TENSIONER, CAM CHAIN

14510-MCH-000

$126.51

SPRING, CAM CHAIN TENSIONER

14516-MCH-000

$5.74

GUIDE, CAM CHAIN

14522-MEA-670

$55.02

TUBE, TENSIONER SPRING

14545-MG7-010

$11.28

PLATE, TENSIONER SETTING

14623-MV1-000

$4.87

BOLT, FLANGE NSHF (6X24)

90001-MEM-670

$1.80

BOLT, UBS (7X15)

90026-MM8-000

$2.92

WASHER, SEALING (6MM)

90441-706-000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
