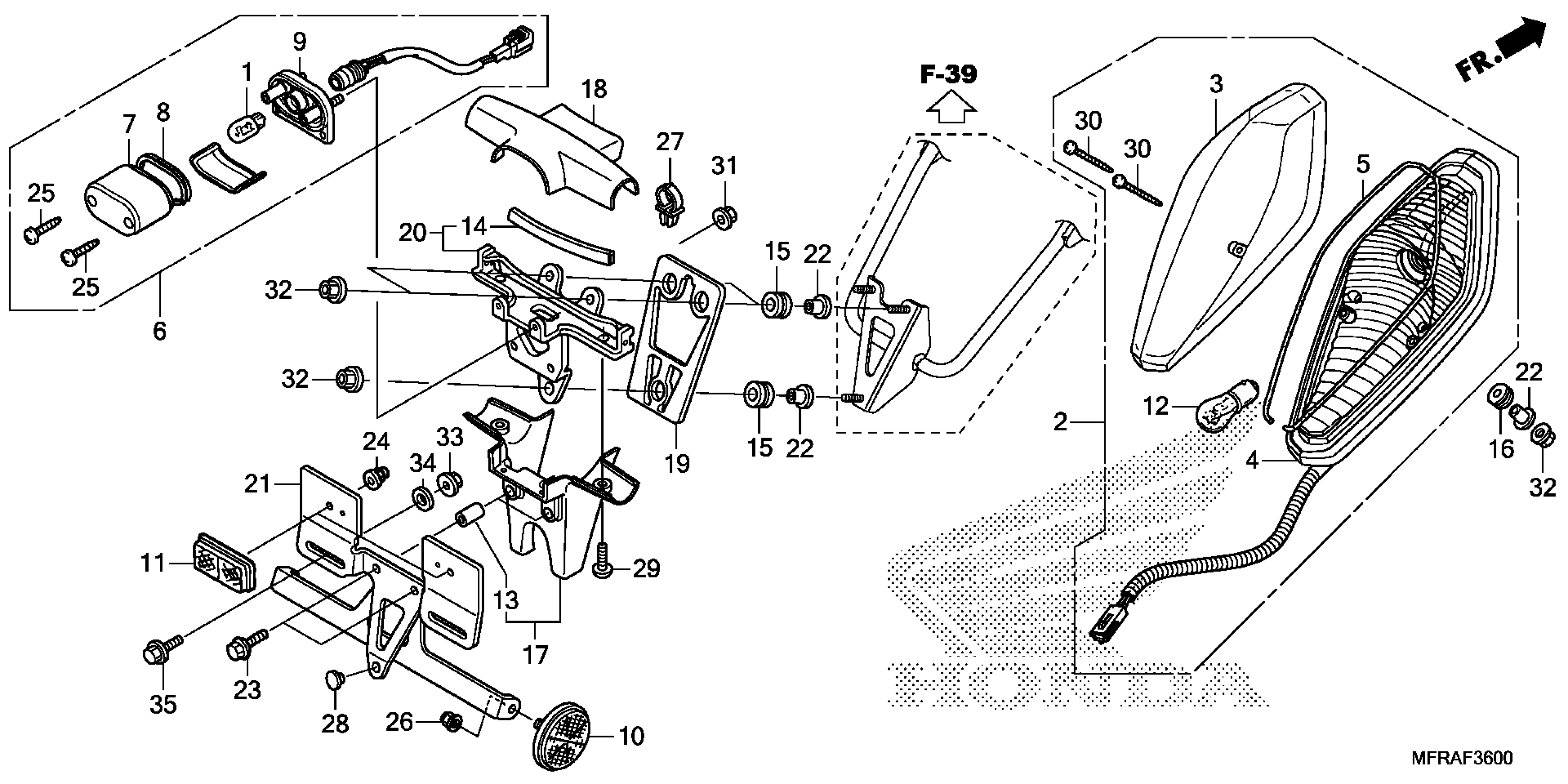

Honda VT1300CRA (13) MOTORCYCLE, JPN, VIN# JH2SC660-DK300001 TAILLIGHT@LICENSE LIGHT (1) Diagram

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

TAILLIGHT ASSY.

33701-MFY-A01

$140.00

TAILLIGHT ASSY. This part replaces 33701-MFY-305.

33701-MFY-A01

$140.00

LENS, TAILLIGHT (COO) This part replaces 33702-MEG-671.

33702-MEG-305

$28.64

BASE, TAILLIGHT

33705-MFY-A01

$58.92

GASKET, TAILLIGHT

33709-MEG-671

$6.33

LIGHT ASSY., LICENSE (12V 5W)

33720-MFY-A01

$96.11

COVER, LICENSE

33727-MEG-671

$18.91

GASKET, LENS

33729-MEG-003

$5.92

BASE, LICENSE

33733-MEG-003

$15.59

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, RR. REFLEX

33741-MR1-671

$19.03

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)

34906-447-711

$9.38

COLLAR, SPEEDOMETER CABLE CLAMP

44833-MN1-680

$4.15

RUBBER, PROTECTOR

64122-MBB-300

$4.69

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.74

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

BRACKET, LICENSE LIGHT

80120-MFY-A00

$17.23

COVER, LICENSE LIGHT

80121-MFY-A00

$53.93

RUBBER, LICENSE LIGHT CUSHION

80125-MFY-A00

$3.84

STAY ASSY., LICENSE LIGHT

80128-MFY-A00

$28.05

BRACKET, NUMBER PLATE

84701-MFY-A00

$38.38

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

BOLT, FLANGE (6X18)

90122-MFY-A00

$2.46

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

SCREW, SPECIAL (4X25)

90301-MEG-003

$1.54

NUT, U (6MM)

90301-MG3-000

$6.91

CLIP, HARNESS (NIKOFU)

90659-734-K51

$2.13

PLUG, HOLE

90852-446-630

$2.56

SCREW, PAN (5X14)

93500-05014-0A

$1.49

SCREW, TAPPING (4X30)

93901-347G0

$2.21

NUT, FLANGE (4MM)

94050-04000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
