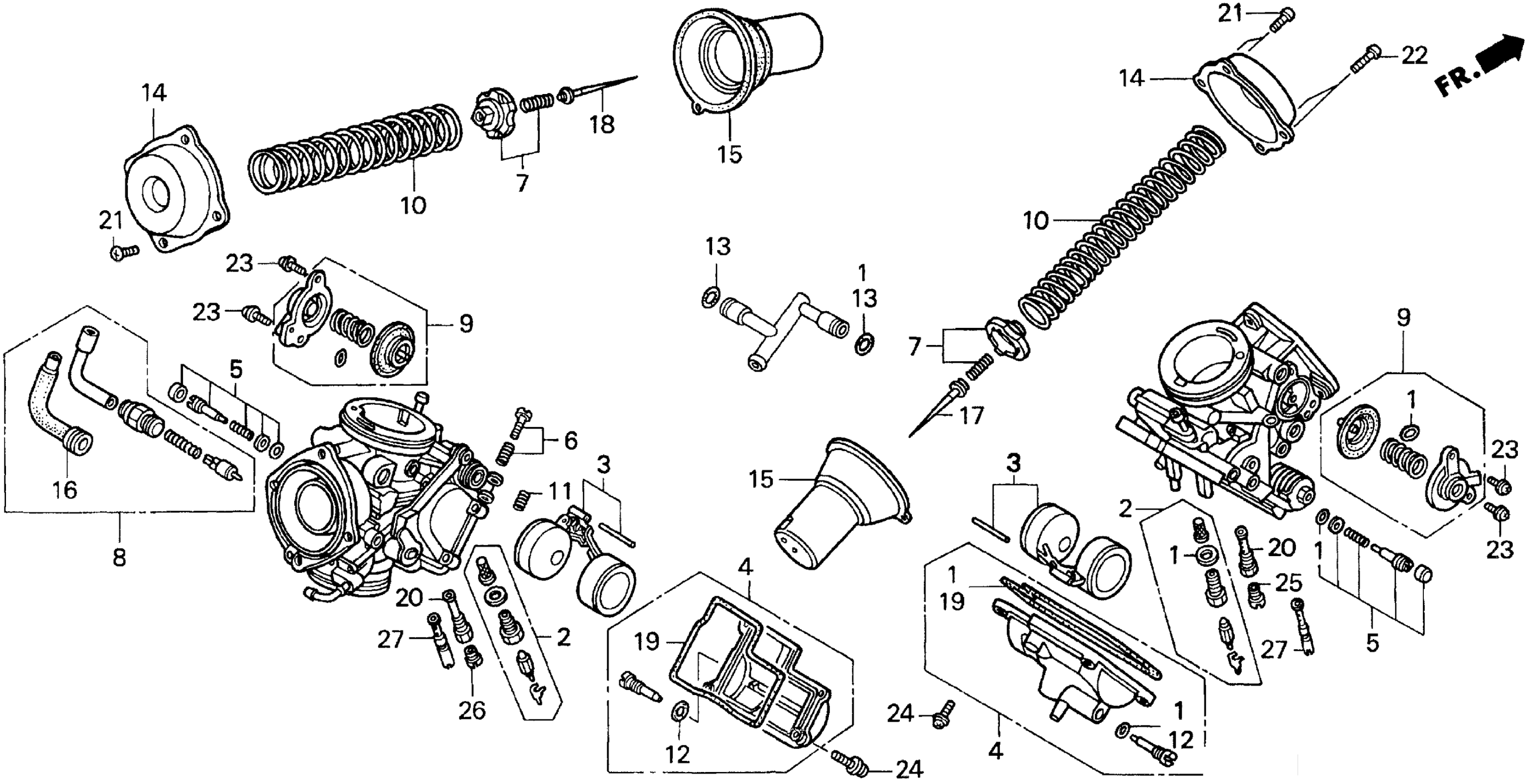

Honda VT1100TAC (01) SHADOW 1100AMERICAN CLASSIC EDITION TOURER, USA, VIN# 1HFSC371-1A300001 CARBURETOR COMPONENTS Diagram

GASKET SET

16010-MAH-750

$40.82

VALVE SET, FLOAT

16011-MAH-000

$70.23

FLOAT SET

16013-MAH-000

$49.54

CHAMBER SET, FLOAT

16015-MAH-750

$131.75

SCREW SET

16016-MAH-670

$26.48

SCREW SET C

16029-MB0-671

Unavailable

PLATE SET, VALVE

16037-MAK-000

$17.18

VALVE SET, STARTER

16046-MAA-610

$70.19

VALVE SET, AIR CUT

16048-MAH-610

Unavailable

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16050-MBC-670

Unavailable

SPRING

16052-ME9-672

$5.67

O-RING (1.3X4.3)

16075-GHB-640

$2.92

O-RING (1.3X7.0)

16075-GHB-670

$3.23

TOP

16107-MM8-004

Unavailable

PISTON, VACUUM

16111-MAA-A00

$151.95

CAP, CABLE SEALING

16118-ME9-671

$14.18

NEEDLE, JET (NOT AVAILABLE)

16131-MBC-670

Unavailable

NEEDLE, JET (NOT AVAILABLE)

16151-MBC-670

Unavailable

GASKET, FLOAT CHAMBER

16163-MAH-750

$35.12

HOLDER, NEEDLE JET This part replaces 16165-ME9-671.

16165-MZ8-R10

Unavailable

HOLDER, NEEDLE JET

16165-MZ8-R10

Unavailable

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

SCREW-WASHER (4X12)

93892-04012-00

$1.49

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

SCREW-WASHER (4X12)

93892-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

SCREW-WASHER (4X16)

93892-04016-00

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

JET, MAIN (#175) This part replaces 99101-GHB-1750.

99101-MCK-1750

Unavailable

JET, MAIN (#175)

99101-MCK-1750

Unavailable

JET, MAIN (#180) This part replaces 99101-GHB-1800.

99101-MCK-1800

$11.06

JET, MAIN (#180)

99101-MCK-1800

$11.06

JET, SLOW (#42) This part replaces 99103-MT2-0420.

99103-MV9-0420

$20.89
